Modine Controls System

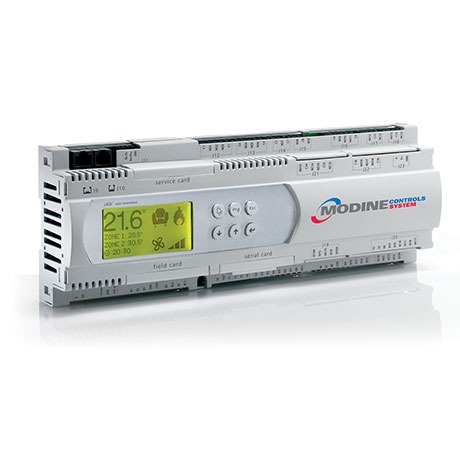

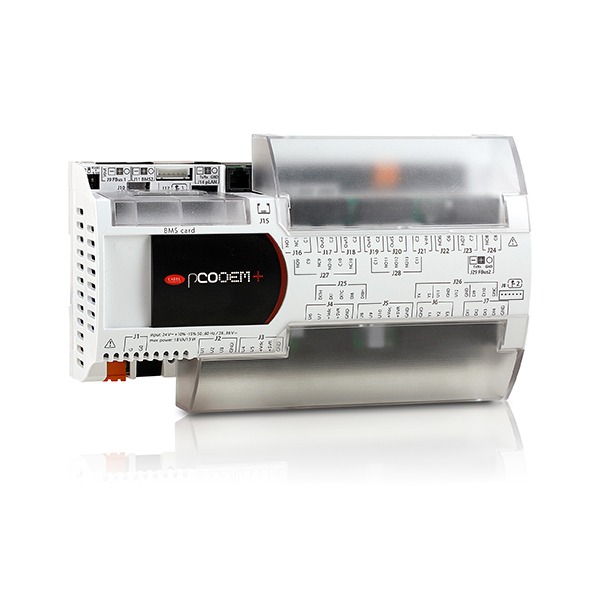

The Modine Controls System is designed and engineered around the Indirect Gas-Fired Heating and Make-Up Air Units to ensure the system operates safely and reliably, delivers optimized performance, and maintains maximum energy efficiency. The Modine Controls System utilizes a Carel pCOOEM+ Medium programmable microprocessor controller. Highly advanced, with a powerful 32-bit microprocessor for fast processing, the controller features a number of I/Os for complex HVAC/R applications.

Models

Indirect Gas-fired Make-up Air System Controls
Indoor Models: H/I
Outdoor Models: D/O

Where To Buy

Product Details & Specifications

Key Features

Wide range of application-driven control strategies, from space conditioning to heating/cooling/dehumidifying high volumes of outside air.
Energy efficiency is maximized through superior control and sequencing of all system components.
Easy-to-follow menu-driven system that includes user-level, service-level, and manufacturer-level password protection.
Operating hours by system (i.e., compressors, supply fan, etc.) simplify preventative maintenance.
Select models include advanced diagnostic capability with real-time display of key refrigerant pressures, temperatures, condenser sub-cooling temperature, and evaporator superheat. temperature, all but eliminating the need for a gauge set during troubleshooting.
Includes true relay outputs, allowing the unit to handle electrical surges or brownouts.
Real-time clock with battery backup includes a built-in scheduler for up to 7 daily periods and up to 20 holiday periods.
All reset points are fully adjustable.

Options

Compatibility with major Building Management Systems such as BACnet® and LonWorks®
When integrated with a BMS, the Modine Control System allows either supervisory or full unit control. For full unit control, the Modine Control System maintains oversight of the system to ensure operation stays within the equipment’s safe operating envelope.
Remote hand-held user interface provides easy access to setup and diagnostic screens, alarm status, and updating setpoints. Typically mounted remote to minimize trips to the roof, equipment room, or classroom, up to 100ft from unit using standard RJ12 cable.
“Smart Key” plug-in memory key efficiently transfers setup parameters between units when commissioning multiple units.

Accessories

Carel pAD Digital Wall Stat/Humidity Sensor

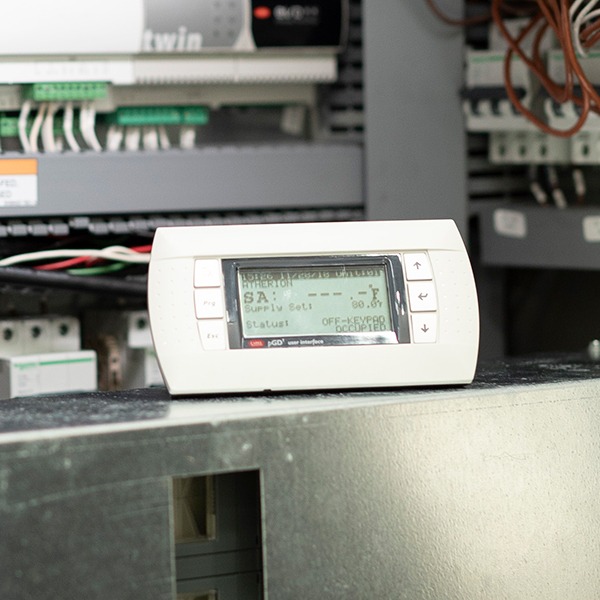

Carel pGD1 Digital Display/Interface
Duct Smoke Detector
CO2 Sensor
Space/Duct Pressure Sensors
Duct Smoke Detector
Dwyer Remote Mounted Outside Sensors
Dwyer Probe & Averaging Type Supply Air Temp SensorsDwyer Probe & Averaging Type Supply Air Temp Sensors
