AMP Series

Amp Dawg™ Electric Unit Heater

Designed for garages, workshops, basements, and small commercial spaces, this all-electric heater combines modern design, silent operation, and zero-emission performance in a compact and easy-to-install package. The Amp Dawg™ features a unique blend of power, efficiency, and design, bringing Modine’s trusted heating performance to spaces where gas options aren’t available or where energy efficiency and simplicity are top priorities.

Models

  • AMP 057 – 4.3kW / 5.7kW (19,437 / 14,578 BTU)
  • AMP 090 – 6.8 kW / 9.0 kW (23,018 / 30,690 BTU)
Where To Buy

Highlighted Features

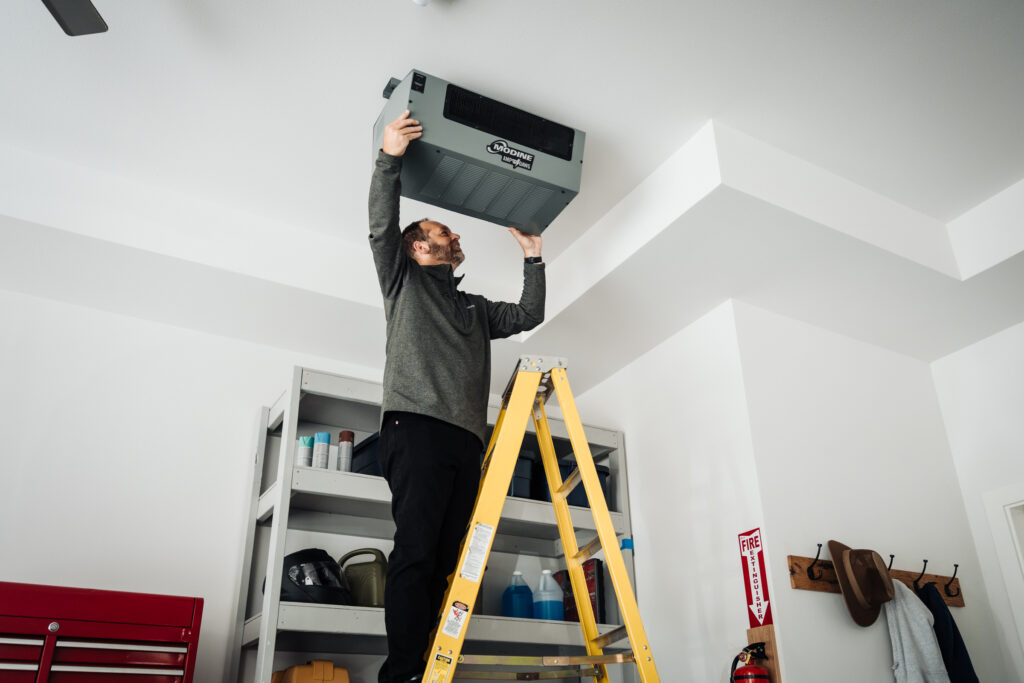

contractor installing a ceiling-mounted amp dawg electric unit heater, yellow ladder, wood garage shelving, red tool chest, a fire extinguisher and clothing hooks on the wall.

Efficient and Easy to Install

The Amp Dawg is crafted for a hassle-free installation—simply attach the provided hanging bracket and slide the unit into position. There’s no need for gas lines or exhaust venting, making it the easiest heater you’ll ever install. It requires just one inch of clearance from the ceiling, ensuring a neat, compact fit in any environment.

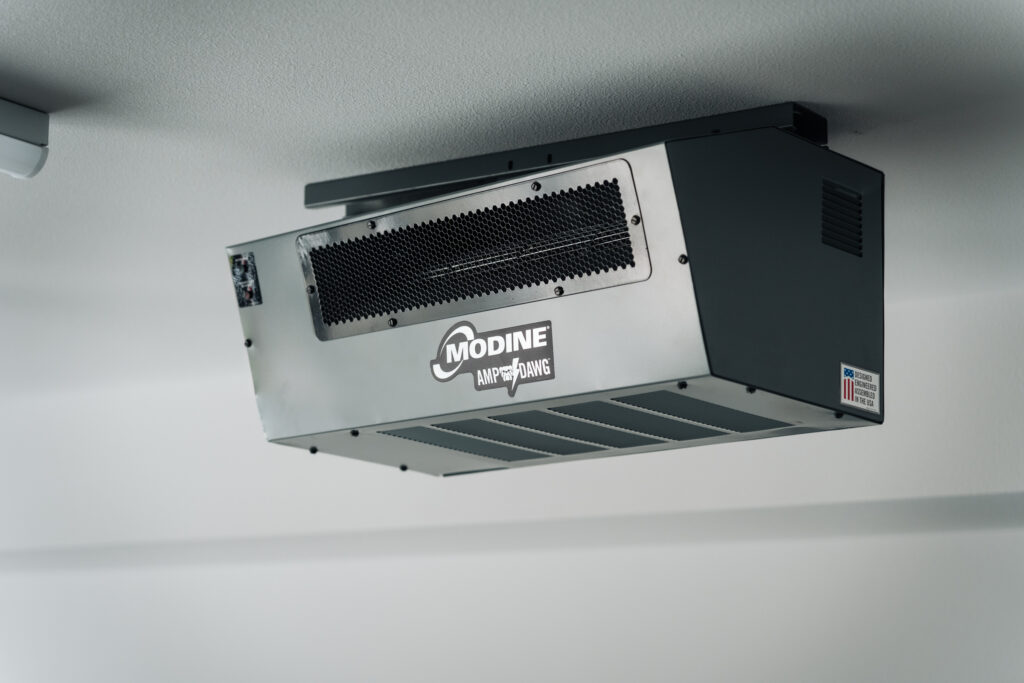

Modine amp dawg electric unit heater ceiling mounted in residential garage

Electric Performance, No compromise.

Modine’s AmpDawg™ is designed to deliver heating and air throw comparable to the Modine Hot Dawg® gas-fired unit heater. Its durable, commercial-grade elements ensure excellent heating performance and longevity.

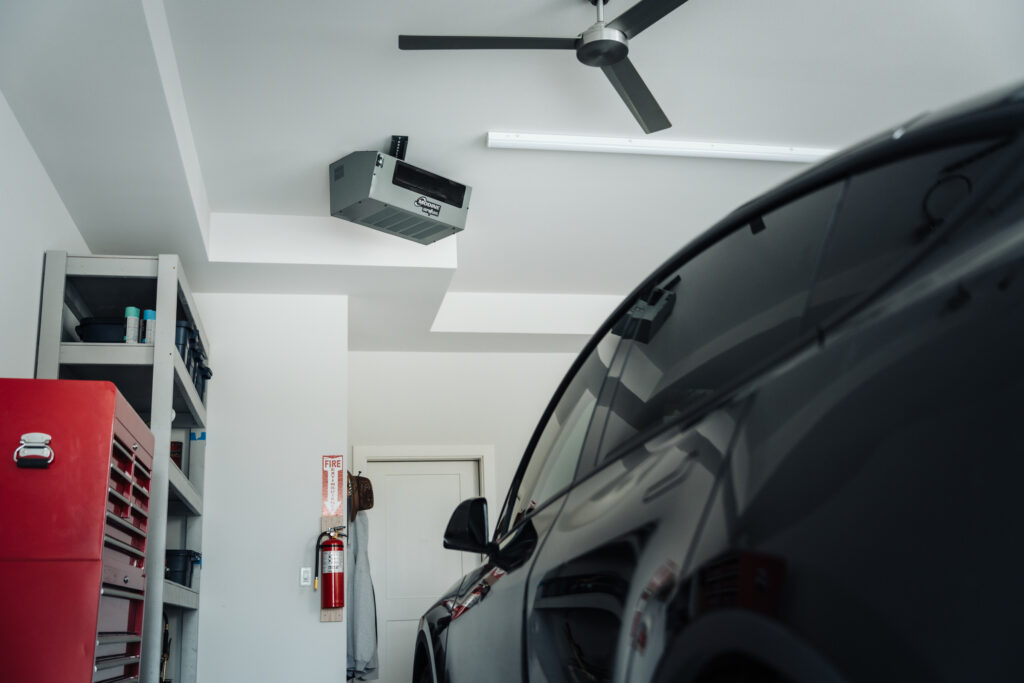

Black car parked in a clean garage with a ceiling-mounted modine amp dawg electric unit heater, overhead fan, metal shelving, red tool chest, and a fire extinguisher on the wall.

Whisper-Quiet Operation

The AmpDawg™ is one of the quietest electric unit heaters available, offering exceptional performance without compromise. Unlike other electric unit heaters that rely on a propeller fan to circulate heated air, the AmpDawg™ features an enclosed fan and motor design, ensuring optimal air movement while operating quietly.

Product Details & Specifications

Key Features

Heating Capacity

  • 5.7 kW
  • 9.0 kW

Performance

  • Operates quietly with no vibration at any speed.
  • Delivers a 20-foot heating throw on low setting.
  • Heats up the space quickly.
  • Provides heating comparable to a gas-fired unit, with the advantages of electric power.

Construction

  • Low-profile design maximizes overhead garage space.
  • Exterior casing remains cool during operation, even in failure modes.
  • Designed for permanent installation.

Features

  • Includes a 24V circuit to accommodate external low-voltage thermostats.
  • Comes with an operating indicator light and a safety indicator light.
  • Features thermostat controls for accurate temperature settings.
  • Requires no venting and produces no fumes.
  • Low maintenance required.
  • Permanently installed.
Options

2 Model Sizes:

  • AMP 057 – 4.3kW / 5.7kW (19,437 / 14,578 BTU)
  • AMP 090 – 6.8 kW / 9.0 kW ( 23,018 / 30,690 BTU)
Supply Voltage:
  • 208 – 240V / 1 Phase
Accessories
  • Wall Mounting Bracket
  • Summer/Winter Switch
  • Thermostat
  • Thermostat Guard
Warranty
Applications

The Amp Dawg™ is ideal for residential garages, workshops, basements, greenhouses, and light commercial areas. Its all-electric, plug-and-play design makes it perfect for buildings without gas service or those aiming for cleaner, sustainable heat.

Common applications include:

  • Home garages and hobby workshops
  • Retail backrooms and service areas
  • Small business facilities and maintenance rooms
  • Residential outbuildings and storage areas
