HDS/HDC Series
Hot Dawg® Separated Combustion Gas-Fired Unit Heater
When air quality matters as much as comfort, trust the Hot Dawg® Separated Combustion Gas-Fired Unit Heater. Designed for environments where dust, dirt, or fumes are present, this unit pulls in 100% outside combustion air—keeping internal components clean and ensuring safe, efficient performance. This separated combustion technology delivers clean heated air, remarkable durability, and lower maintenance in contaminated environments, making it ideal for residential garages, workshops, auto repair bays, body shops, woodworking areas, and greenhouses.
Models
- Model HDS: Separated Combustion with Propeller Fan 6 Model Sizes: 30, 45, 60, 75, 100, and 125 MBH
- Model HDC: Separated Combustion with Configurable Blower 4 Model Sizes: 60, 75, 100, and 125 MBH
Highlighted Features
Separated Combustion System
Reliable, High-Performance Heating
Durable & Easy to Maintain
Product Details & Specifications
Key Features
- Separated Combustion System: Factory-assembled and certified for separated combustion. No additional parts are needed, allowing for easier, quicker installation that provides greater durability and reduced maintenance.
- High Thermal Efficiency (up to 82%): Maximizes heat output while minimizing fuel costs.
- Quiet Performance: Engineered for low noise—ideal for residential and professional settings.
- Venting Versatility: an integral power exhauster allows vertical or horizontal venting with the smallest-diameter vent pipe possible.

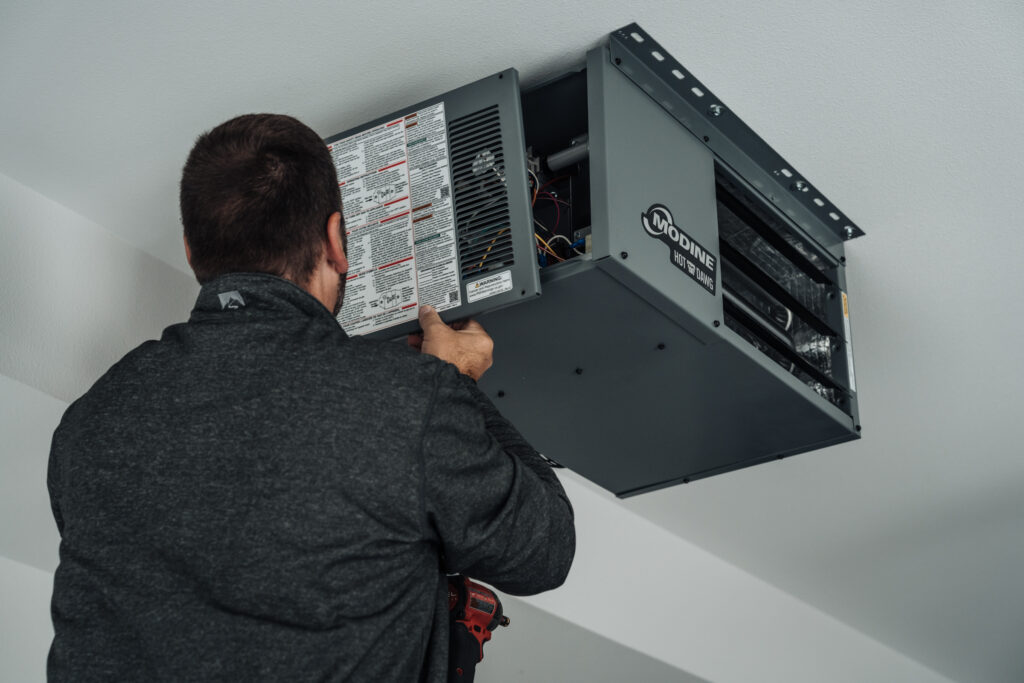

- Compact, Low-Profile Design: Installs effortlessly in confined areas or overhead, requiring only 1 inch of clearance from the ceiling to optimize available floor space.
- Baked Polyester Paint: Features a neutral-colored, baked-on polyester paint that provides excellent corrosion resistance and durability while blending into a wide variety of environments.
- Durable Construction: Aluminized steel tubular heat exchanger resists corrosion and extends product life.
- Electric Knockouts: Electric wiring knockouts and field wiring connections keep installation costs low and save time on installation and maintenance
- Flexible Mounting Options: Choose from ceiling or wall configurations for a custom installation.
- Fuel Flexibility: Operates on natural gas or propane for convenience across applications.
- ETL Certification: ETL certified for residential, commercial, and industrial use in the US and Canada.
- Proudly Designed, Engineered, and Assembled in the USA: Commitment to quality and craftsmanship in every unit.
Options
Factory-Configurable Options
- Configuration Types:
- Propeller (HDS) or Blower (HDC)
- Input Ratings (Btu/hr):
- Propeller (HDS): 30,000; 45,000; 60,000; 75,000; 100,000; 125,000
- Blower (HDC): 60,000; 75,000; 100,000; 125,000
- Heat Exchanger Material:
- Aluminized Steel
- Stainless Steel
- Ignition Type:
- Direct Spark Ignition
- System Operating Voltage & Phase (Power Code):
- Propeller (HDS): 115V/60Hz/1-Phase (Power Code 01)
- Blower (HDC): 115V/60Hz/1-Phase (Power Code 01) (Note: Unlike other blower models, HDC blower models are only offered in 115V configurations)
- Gas Control Configuration (Type & Stages):
- Natural Gas, Single Stage
- Natural Gas, Two Stage (sizes 75 and larger only)
- Propane Gas, Single Stage
- Propane Gas, Two Stage (sizes 75 and larger only)
- Fan Guard Type:
- Standard (HDS Propeller only)
- Fingerproof (HDS Propeller only)
- None (Standard for all HDC Blower models)
Accessories
- Venting & Combustion Air Accessories:
- Concentric & Two-Pipe Vent Kits
- Horizontal Concentric Vent Kit
- Vertical Concentric Vent Kit
- Two Pipe Venting Kit
- Gas Conversion Kits:
- Natural to Propane and Propane to Natural (Single-Stage & Two-Stage; sizes 30 to 400)
- Blower-Specific Accessories (HDC Only):
- Belt Guard
- Blower Enclosure
- Filter Rack & Filter (requires Blower Enclosure)
- Discharge Transition for Polytube
- Air Discharge Accessories:
- Downward Air Deflector Hoods (30°, 60°, and 90° downturns)
- Vertical Air Deflector Blades
- Thermostats & Controllers:
- Thermostat Guard (Modine Pro1 T-150, clear plastic with tumbler lock)
- Room Thermostat (Modine Pro1 T-501M)
- Two-Stage Thermostat (Modine Pro1 T-715M)
- WiFi Thermostat (Modine Pro1 T855iSH)
- Johnson Controls A350 Electronic Temp Control with S350 Stage Adder – Offered specifically for blower models (HDC)
- Energy Saver Thermostat
- Miscellaneous & Suspension Accessories:
- Vibration Isolation Kit (4 Isolators) – Offered for HDS propeller model sizes 55–260 only
- Vibration Isolation Kit (6 Isolators) – Offered specifically for HDC blower models
- Ceiling Mounting Brackets
- 2-Point Suspension Kit (Converts 4-point to 2-point suspension; offered for propeller model sizes 55, 65, and 85–400)
- Quick-Sling QSWI-3000
Applications
The HDS/HDC is built for spaces where airborne contaminants, moisture, or chemicals can shorten the lifespan of standard heaters. By isolating the combustion chamber and drawing in clean outdoor air, it ensures efficient heating in:
- Residential workshops and garages
- Auto service and paint shops
- Greenhouses and nurseries
- Agricultural barns and storage facilities
- Manufacturing spaces with airborne dust or fumes
Tech Documents
Installation / Service Manual
6-584 HDS/HDC Installation & Service Manual
Sound Pressure Data
6-120 PDP, HD, HDS, PTX, PTP and PTC Sound Pressure Data
