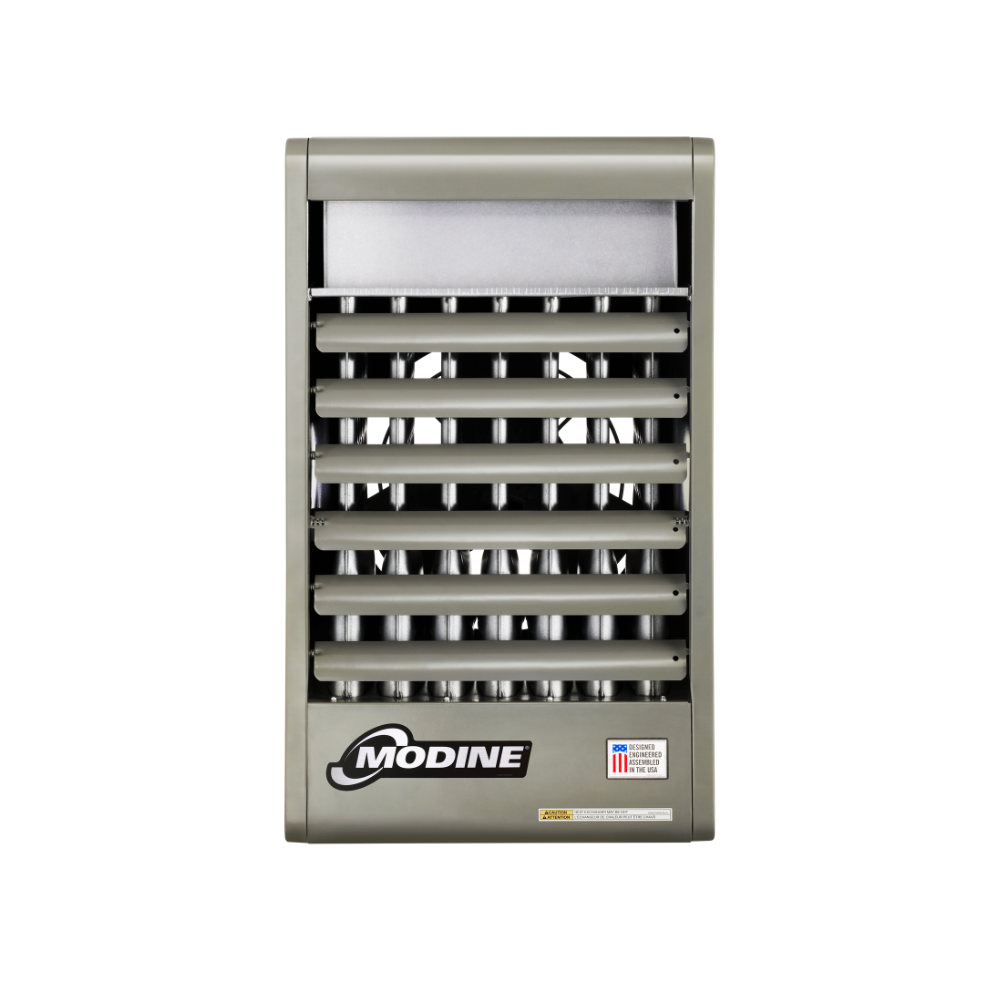

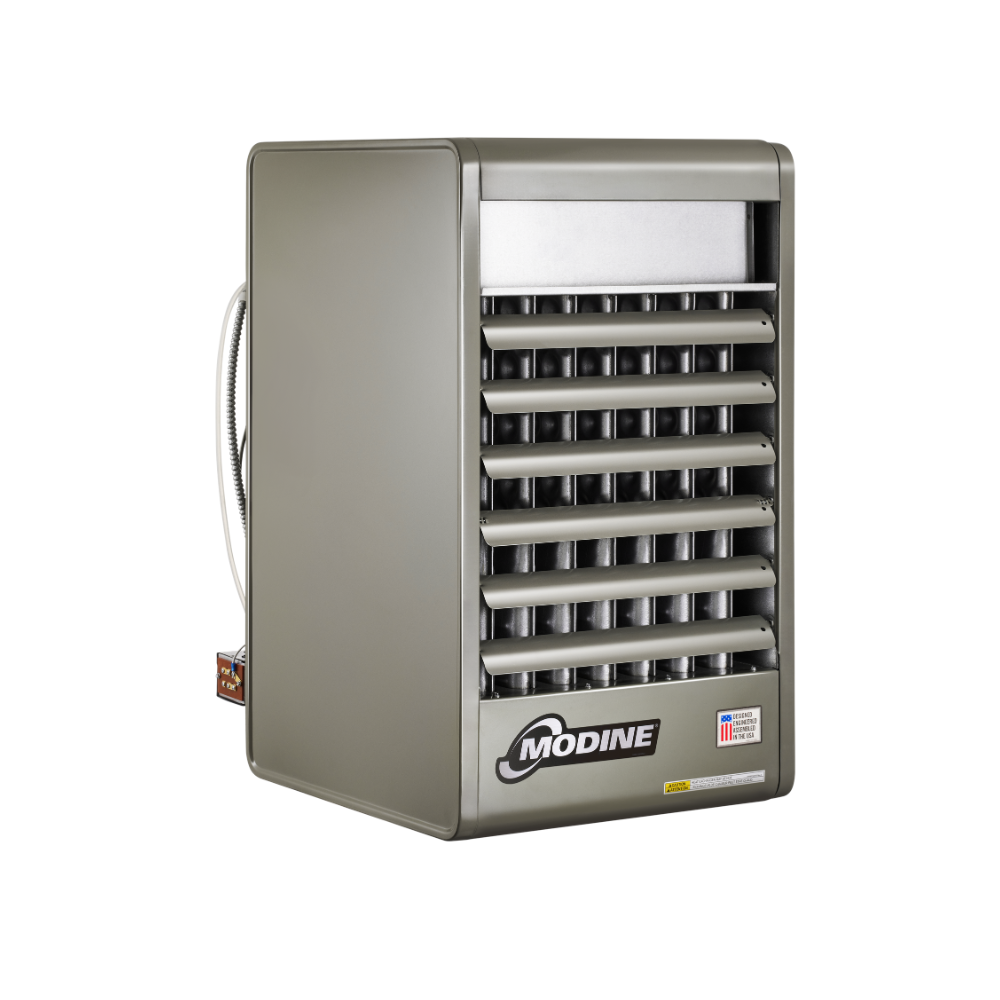

PDP/BDP Series
Vertical Power-Vented Gas-Fired Unit Heater
When performance and reliability matter most, the Modine PDP/BDP Power-Vented Gas-Fired Unit Heater stands ready. Built to Modine’s industry-leading standards, the PDP/BDP models combine power-vented efficiency with rugged construction for dependable comfort in commercial, industrial, and large residential environments.
Easy to use and time-tested for quality and durability, the PDP/BDP line provides consistent, energy-efficient heat while reducing installation and maintenance time—making it a favorite among contractors, engineers, and facility managers alike.
Models
- Model PDP: Power-Vented with Propeller Fan 7 Model Sizes: 150, 175, 200, 250, 300, 350, and 400 MBH
- Model BDP: Power-Vented with Centrifugal Blower Fan 7 Model Sizes: 150, 175, 200, 250, 300, 350, and 400 MBH
Highlighted Features
Power-Vented Performance
Built for Durability
Easy Installation & Service
Product Details & Specifications
Key Features

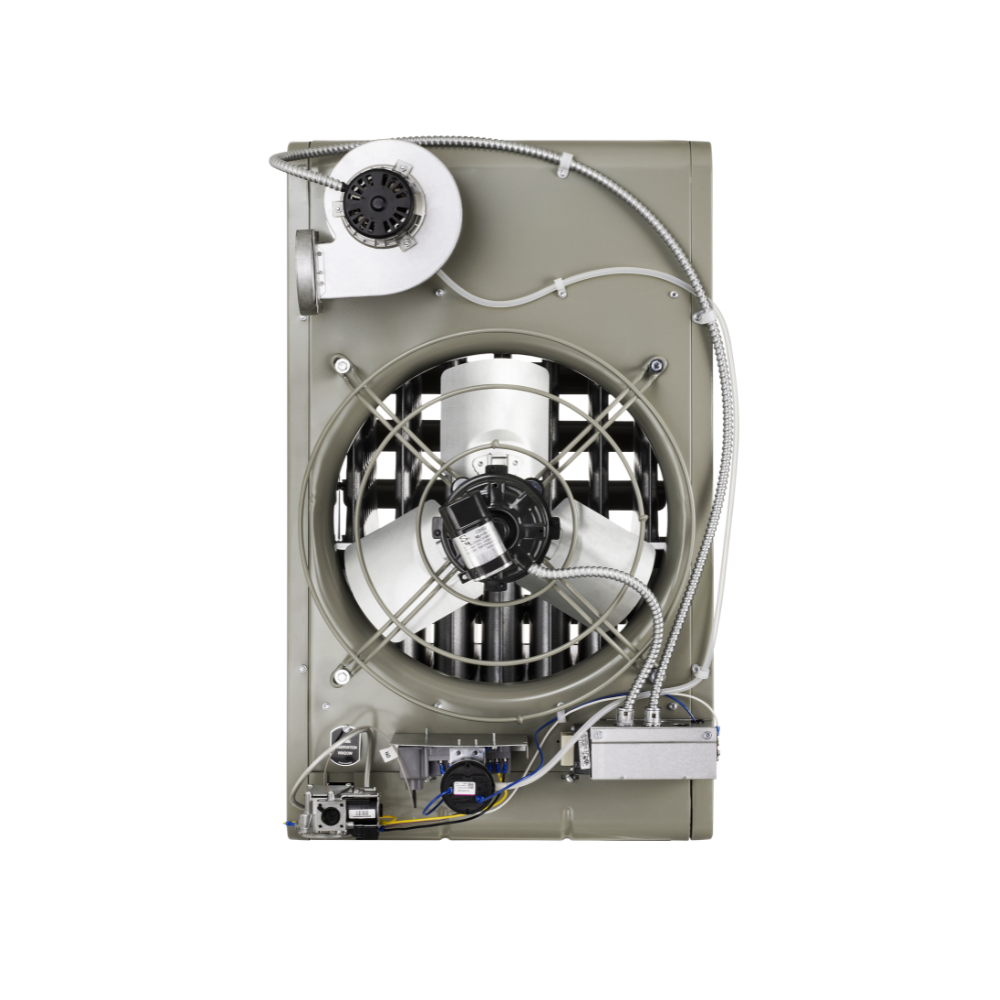

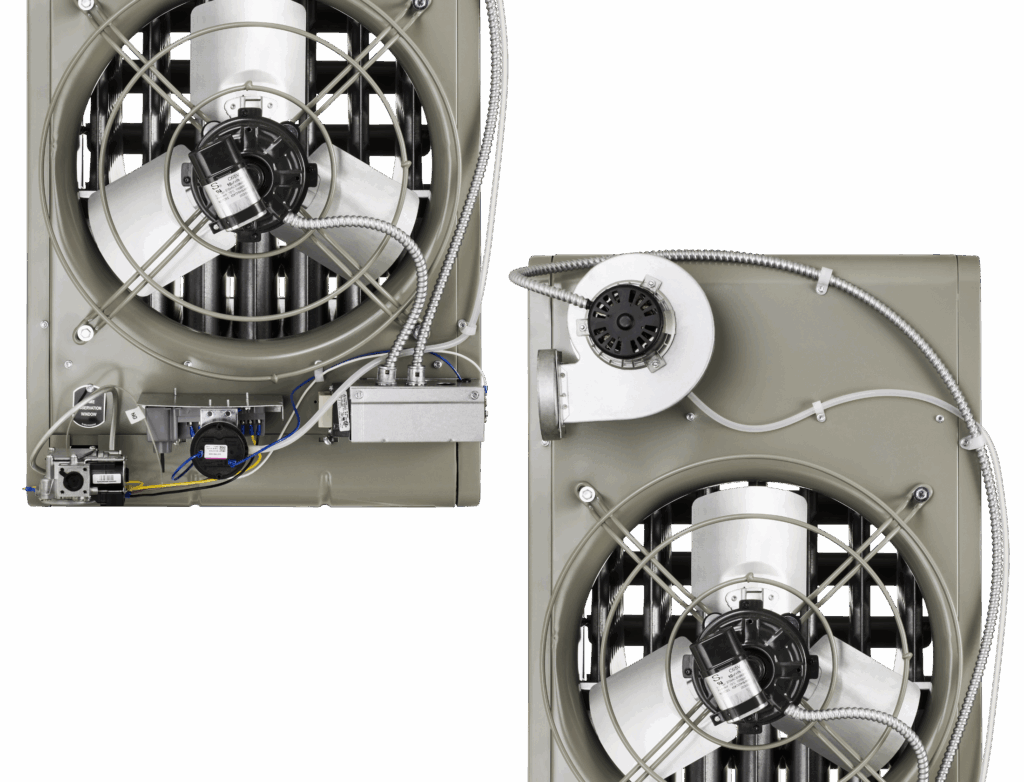

- Power-Vented System: Safely exhausts combustion gases outdoors, ensuring clean, efficient operation and consistent comfort.
- Venting Versatility: Power exhaust can rotate 180°, allowing the unit to be vented vertically or horizontally with the smallest-diameter vent pipe possible.
- Low-Profile Design: Installs effortlessly in confined areas or overhead.
- Baked Polyester Paint: Features a neutral-colored, baked-on polyester paint that provides excellent corrosion resistance and durability while blending into a wide variety of environments.
- Durable Construction: Aluminized steel clamshell heat exchanger resists corrosion and extends product life.

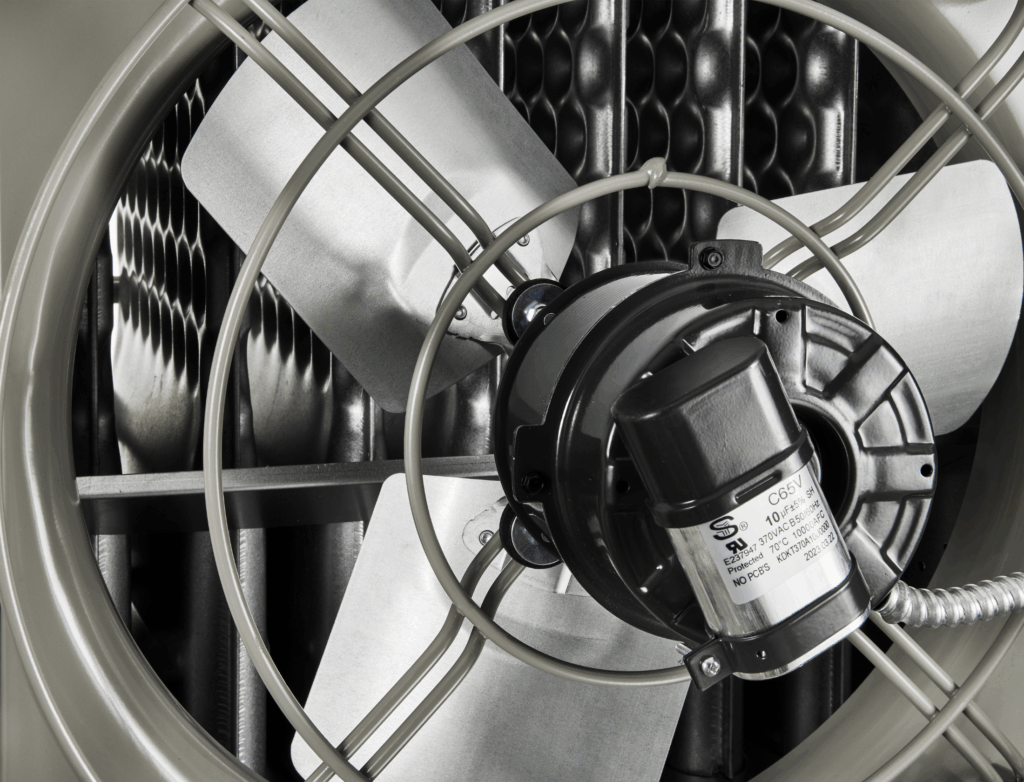

- In-Cabinet Controls Protection: Fan motors and controls are housed inside the cabinet to protect them from airborne moisture and dust.
- Flexible Mounting Options: Choose from ceiling or wall configurations for a custom installation.
- Quiet Performance: Ideal for environments where comfort and low noise matter.
- Fuel Flexibility: Operates on natural gas or propane for convenience across applications.
- Thermal Efficiency Up to 83%: Reduces energy use while maintaining reliable output.
- Pilot-ignition System: Intermittent pilot ignition with a continuous retry control system.
- Tool-free entry: “Wing” screws allow access to the unit’s interior without needing a screwdriver or nut driver.
- ETL Certification: ETL certified for commercial and industrial use in the US and Canada.
- Proudly Designed, Engineered, and Assembled in the USA: Commitment to quality and craftsmanship in every unit.
Options
Factory-Configurable Options
- Configuration Types:
- Propeller (PDP) or Blower (BDP)
- Input Ratings (Btu/hr):
- Propeller & Blower (PDP / BDP): 150,000; 175,000; 200,000; 250,000; 300,000; 350,000; 400,000
- Heat Exchanger / Burner Material:
- Aluminized Steel Heat Exchanger / Aluminized Steel Burner
- Stainless Steel Heat Exchanger / Aluminized Steel Burner
- Stainless Steel Heat Exchanger / Stainless Steel Burner
- Ignition Type:
- Intermittent Pilot Ignition (IPI)
- System Operating Voltage & Phase (Power Code):
- Propeller (PDP):
- 115V/60Hz/1-Phase
- 230V/60Hz/1-Phase
- Blower (BDP):
- 115V/60Hz/1-Phase
- 230V/60Hz/1-Phase
- 208-230V/60Hz/3-Phase
- 460V/60Hz/3-Phase
- 575V/60Hz/3-Phase
- Propeller (PDP):
- Gas Control Configuration (Type, Ignition Voltage & Stages):
- 115V/24V IPI, Single Stage: Natural Gas or Propane (LP)
- 208/230V/24V IPI, Single Stage: Natural Gas or Propane (LP)
- 460V/24V IPI, Single Stage: Natural Gas or Propane (LP) (BDP Blower models only)
- 575V/24V IPI, Single Stage: Natural Gas or Propane (LP) (BDP Blower models only)
- 115V/24V IPI, Two Stage: Natural Gas or Propane (LP)
- 208/230V/24V IPI, Two Stage: Natural Gas or Propane (LP)
- Fan Guard Type:
- Standard (PDP Propeller only)
- Fingerproof (PDP Propeller only; factory-installed option)
- None (Standard for BDP Blower models)
Accessories
Venting Accessories:
- Vent Caps (Sizes 150–200: 5″, Sizes 250–400: 6″)
Gas Conversion Kits:
- Propane Conversion Kits (available for single-stage and two-stage IPI units with control codes 30, 31, 32, 33, 63, or 64)
- Natural Conversion Kits (available for single-stage and two-stage IPI units with control codes 85, 86, 87, or 88)
Blower-Specific Accessories:
- Blower Enclosures
- Filter Rack (requires addition of Blower Enclosure)
- Belt Guard Accessory
- Discharge Transition (fits 18″ or 24″ Polytube diameters)
- Specialty Discharge Nozzles (40° or 90° Double Deflection Nozzle, 40° Double Deflection Splitter Nozzle, or 5-Way Downflow Nozzle) – available for selection through the Modine Breeze™ AccuSpec Program
Air Discharge & Deflection Accessories:

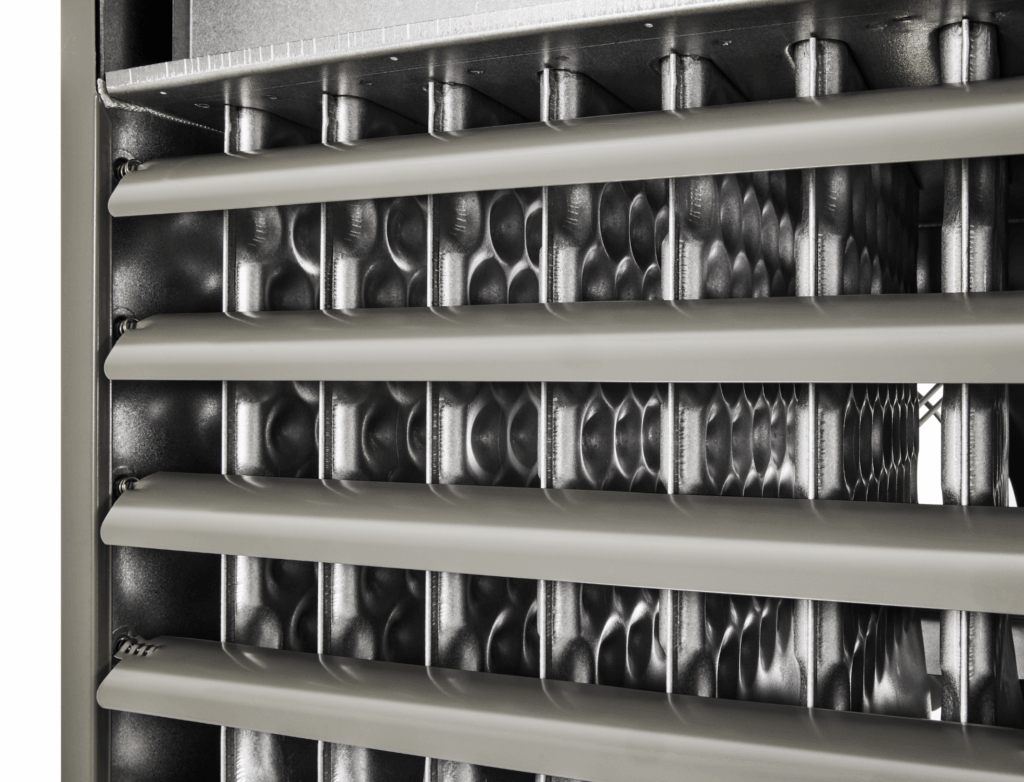

- Vertical Deflectors
- Downward Air Deflector Hoods (30°, 60°, and 90° downturns)
Thermostats & Controllers:
- Room Thermostat (Modine Pro1 T-501M)
- Two-Stage Thermostat (Modine Pro1 T-715M)
- WiFi Thermostat (Modine Pro1 T855iSH)
- Energy Saver Kit (35°–95°F range)
BMS (Building Management System):
- Factory-installed BMS
Electrical & Miscellaneous Controls:
- Step-Down Transformer Accessory (shipped loose for voltage matching)
- Thermostat Guard (Modine Pro1 T-150, clear plastic with tumbler lock)
- SPST Relay (25V) (required for room stats with Fan Auto/On switching)
- Summer-Winter Toggle Switch (S/W Switch; Max 15A @ 125V)
- Fisher Type HSR 3/4″ Pressure Regulator (Natural Gas only; 0.5–80 PSI inlet, 6–8” W.C. outlet)
Mounting, Suspension & Maintenance:
- Pipe Hanger Kit (Adapters):
- Includes 2 adapters for sizes PDP 150 through PDP 300
- Includes 4 adapters for sizes PDP 350 through PDP 400
- Includes 4 adapters for sizes BDP 150 through BDP 300
- Includes 6 adapters for sizes BDP 350 through BDP 400
- 2-Point Suspension Kit (converts 4-point to 2-point suspension; offered specifically for PDP 350–400)
Applications
The PDP/BDP is designed for large industrial and commercial facilities where reliable, efficient heat coverage is critical.
Common applications include:
- Warehouses and distribution centers
- Manufacturing and processing plants

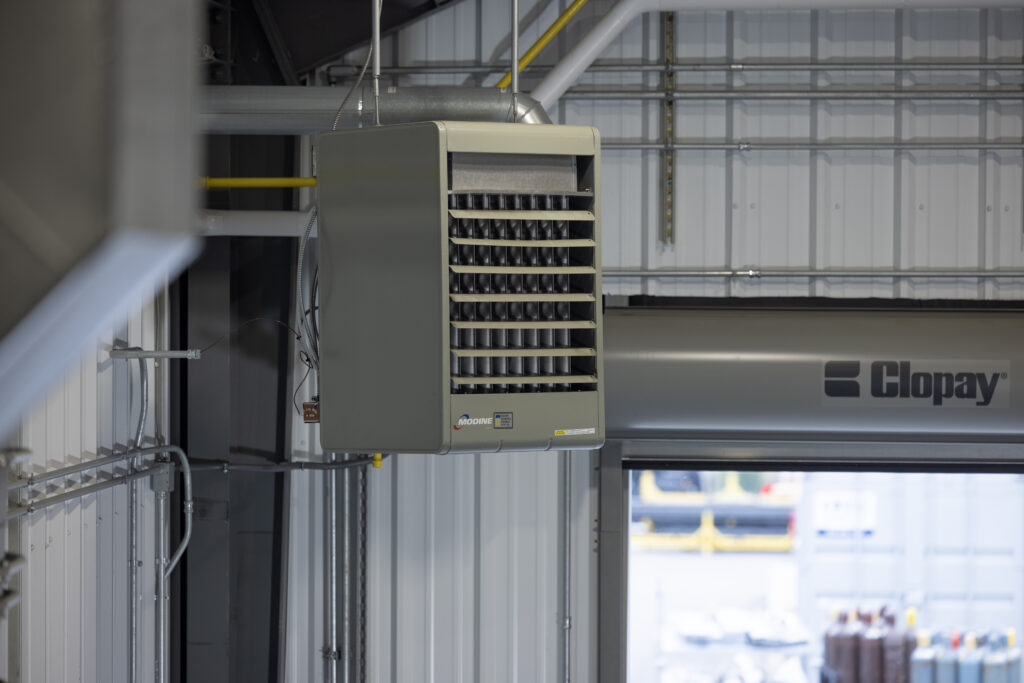

- Vehicle service bays and garages
- Agricultural and storage facilities
- Large commercial workshops or utility buildings
Tech Documents
Installation / Service Manual
6-580 PDP/BDP Installation & Service Manual
Wiring Diagram
6-446 PDP & BDP Wiring Diagrams
Sound Pressure Data
6-120 PDP, HD, HDS, PTX, PTP and PTC Sound Pressure Data
