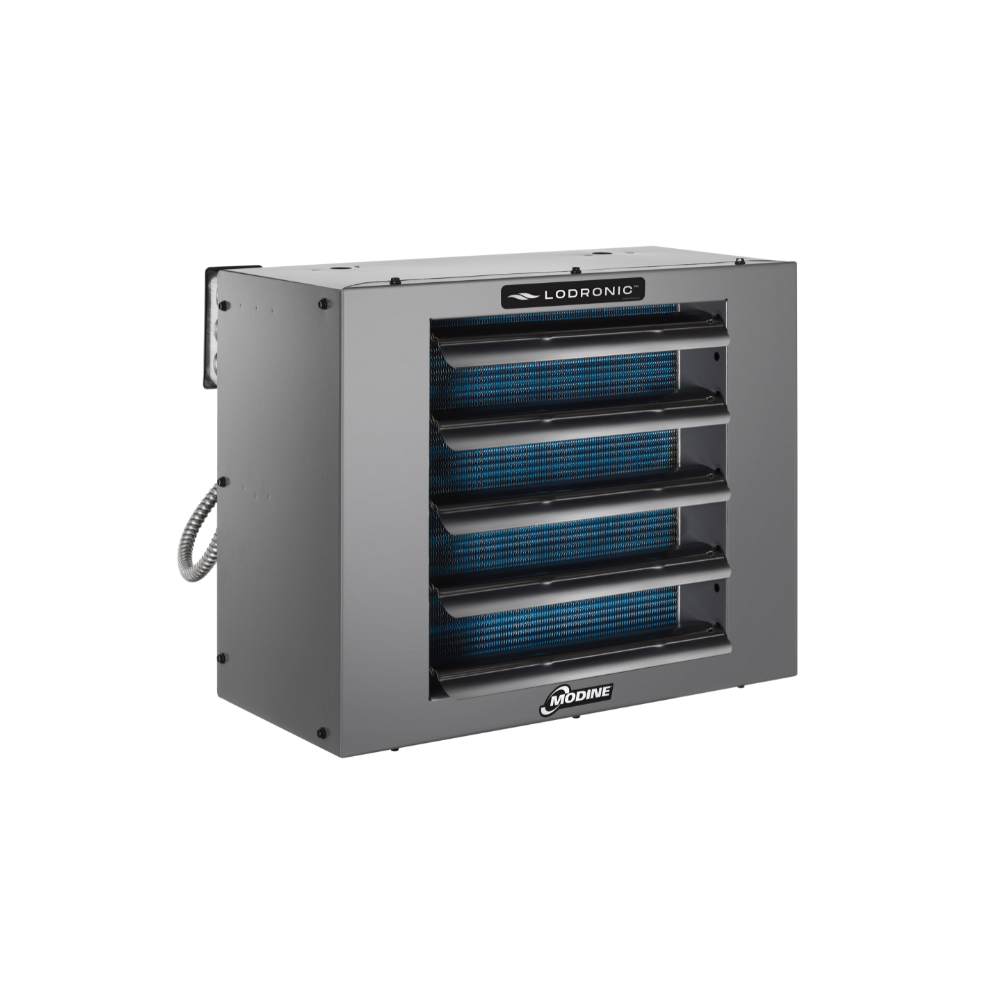

HCH Front Right

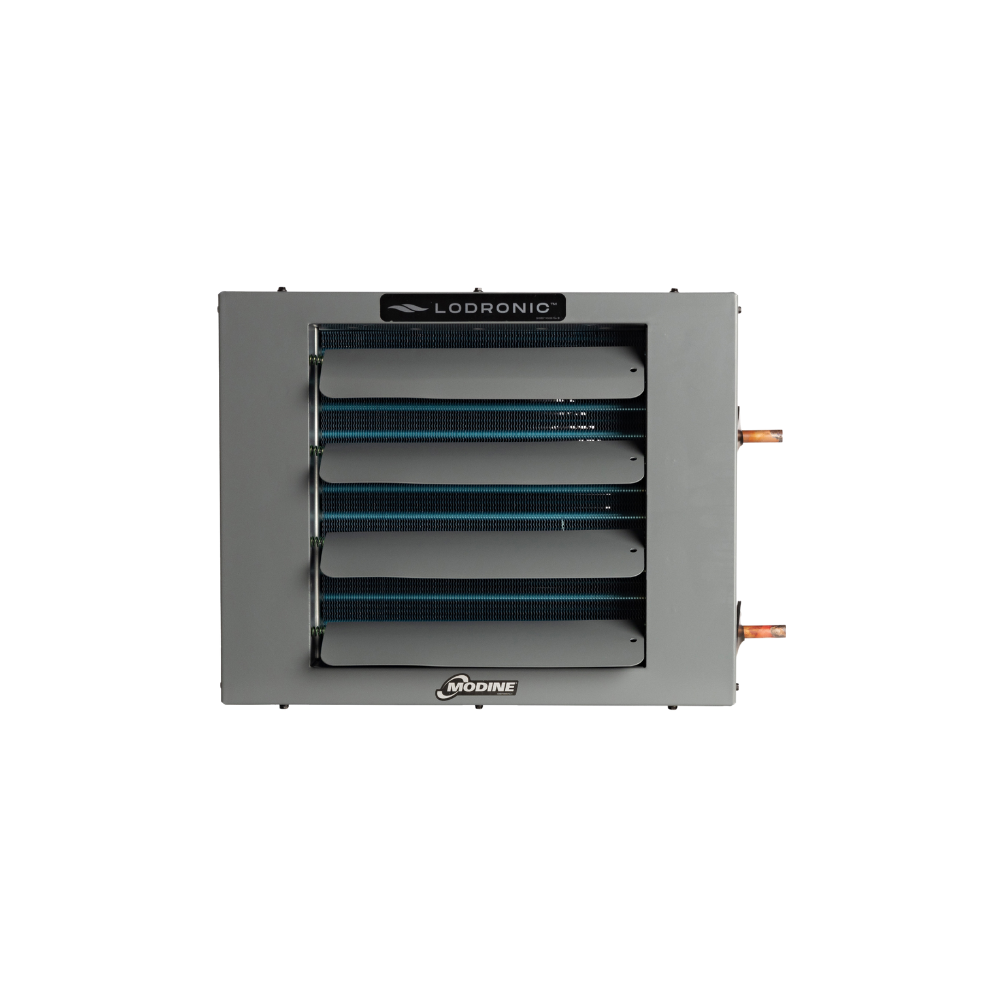

HCH Front

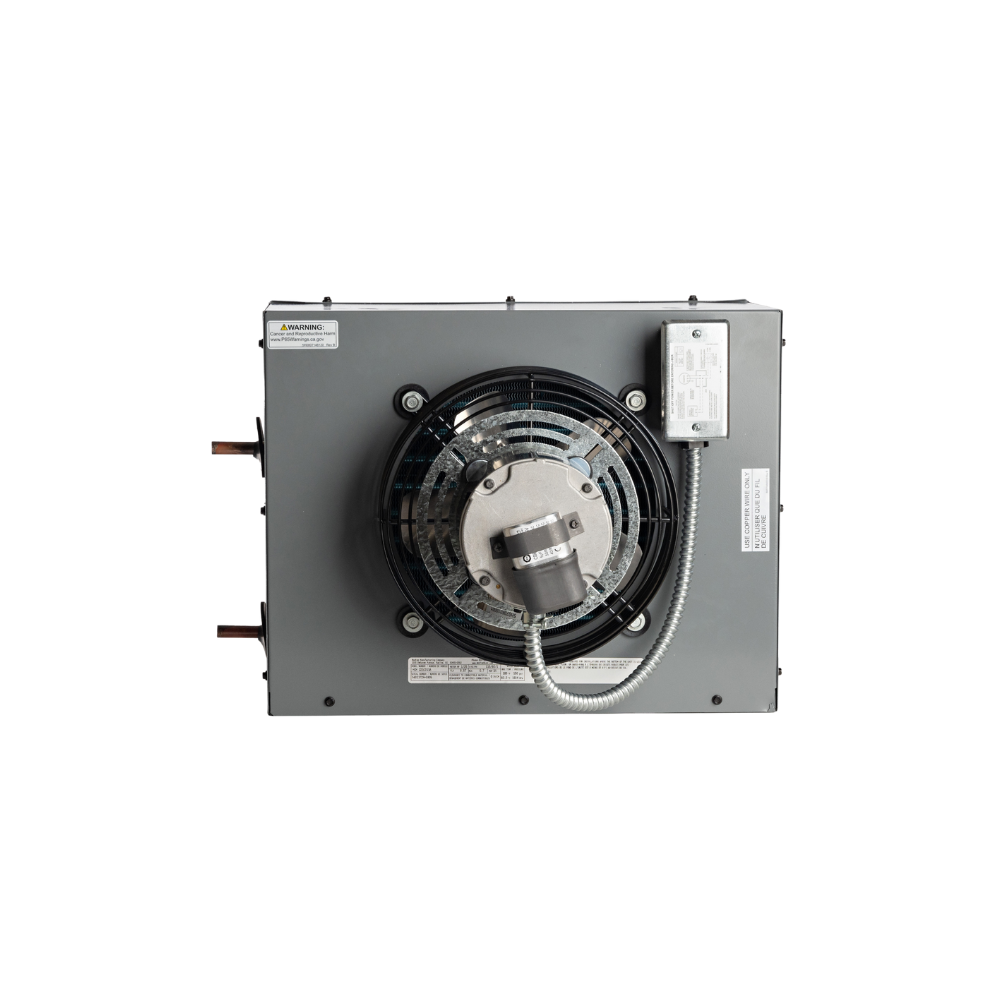

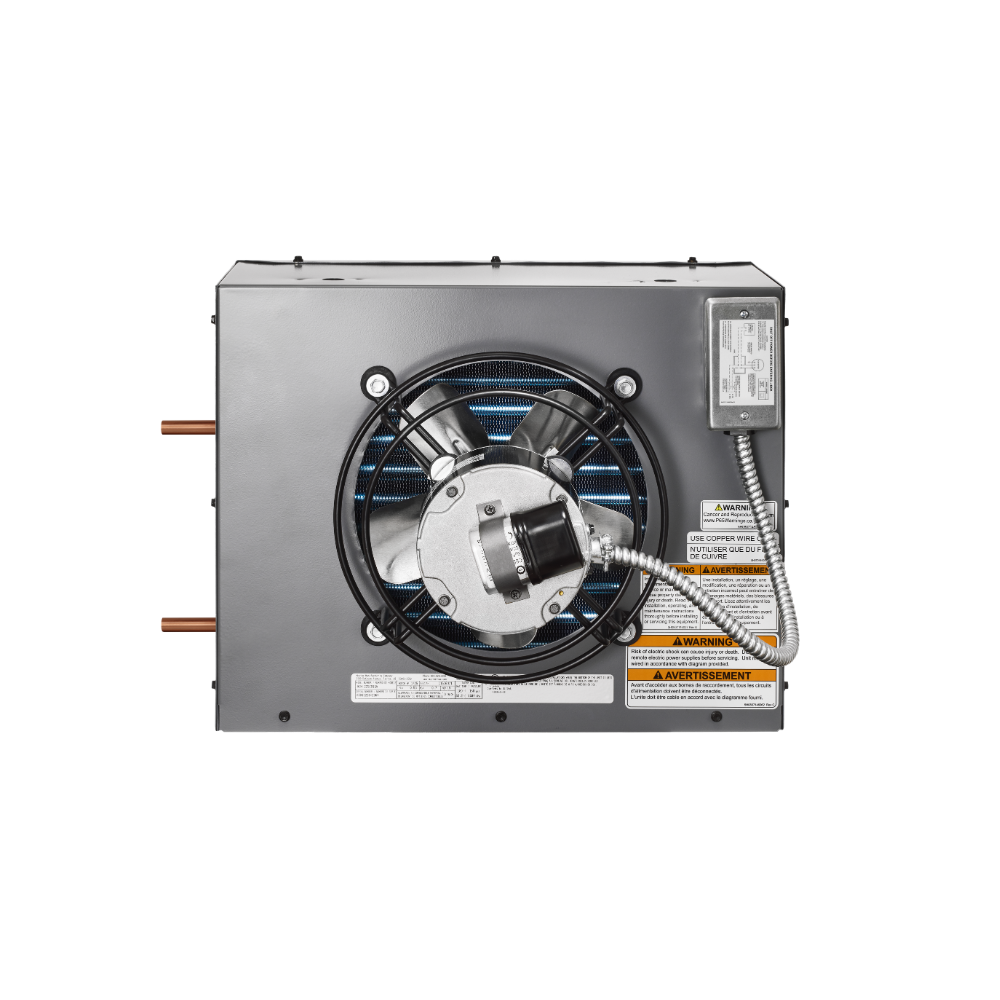

HCH Back

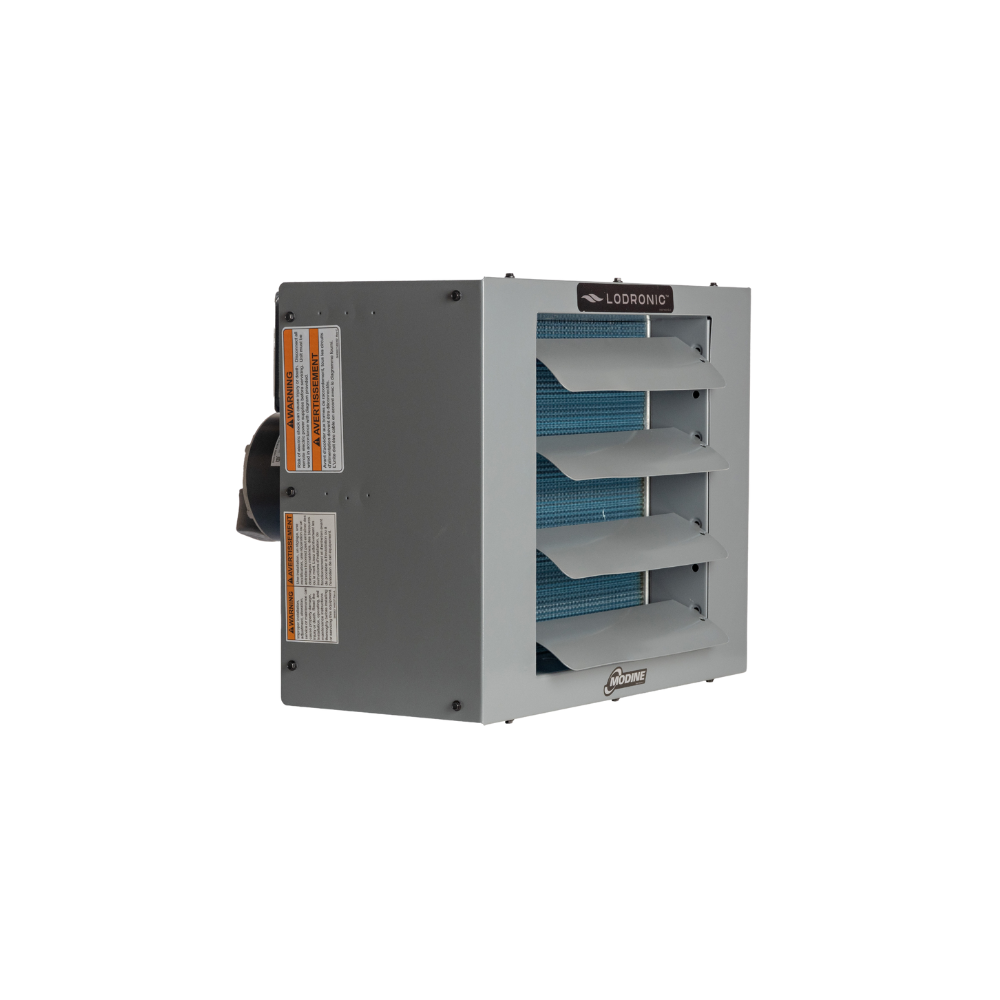

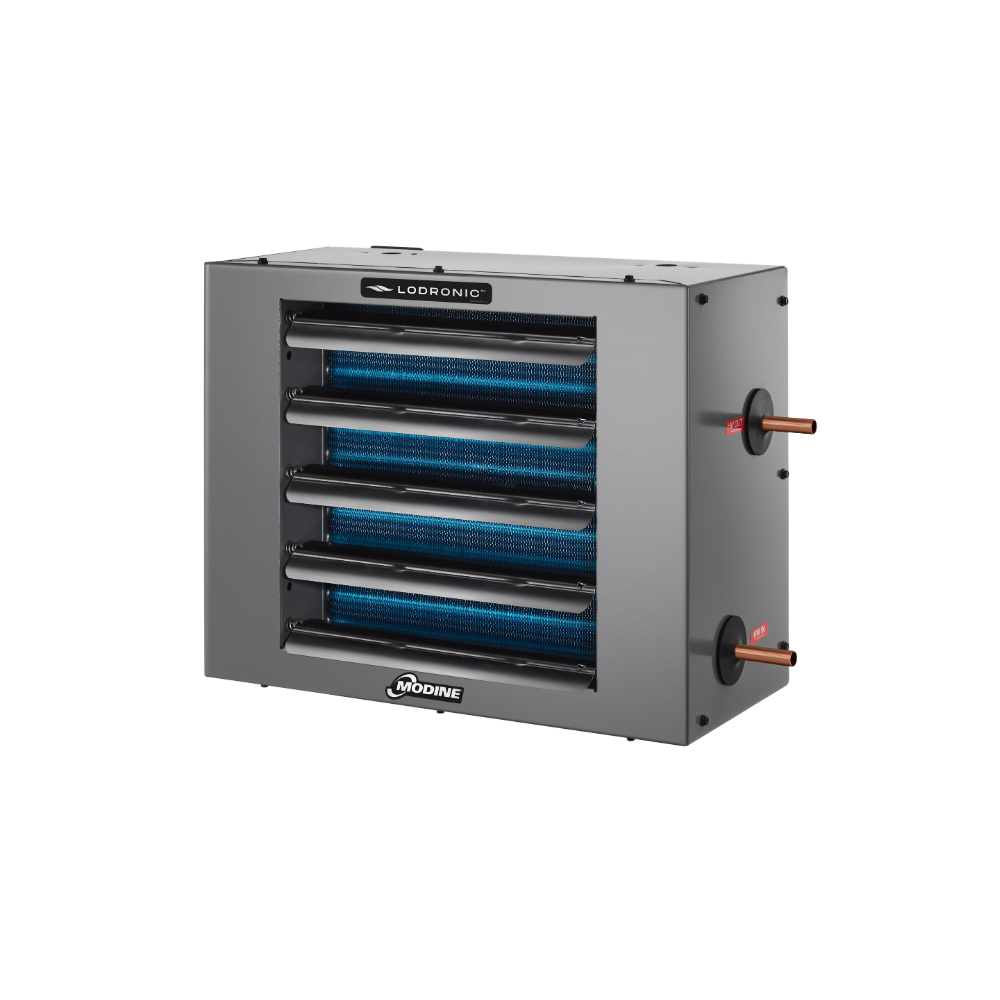

HCH Front Left
HCH Front Right thumbnail
HCH Front thumbnail
HCH Back thumbnail
HCH Front Left thumbnail

HCH/BCH Series

Lodronic™ High-Efficiency, Low-Temperature Horizontal Delivery Hydronic Unit Heater

The Modine Lodronic™ High-Efficiency, Low-Temperature Horizontal Delivery Hydronic Unit Heater is designed to work seamlessly with high-efficiency boilers, geothermal systems, or air-to-water heat pumps. Unlike traditional oversized hydronic heaters that strain boiler systems and diminish performance, the HCH/BCH Series excels in maintaining system balance, reducing electrical load, and providing exceptional discharge air temperatures.

With side supply and return connections and a compact design, these units are ideal for heating buildings with large open spaces, low ceilings, and limited clearances. They are particularly effective at countering heat loss along exterior walls, especially where windows are present. Suitable for warehouses and garages alike, the Lodronic™ delivers unmatched heating efficiency and performance.

Models

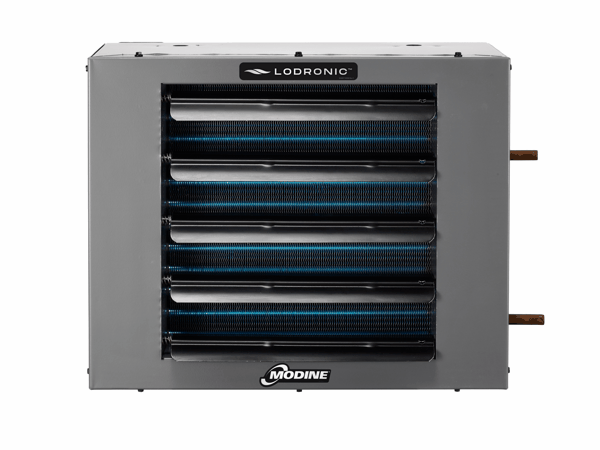

  • Model HCH- Horizontal High Efficiency Delivery with Propeller Fan
    • 6 Model Sizes: 22, 39, 67, 104, 170, and 195 MBH

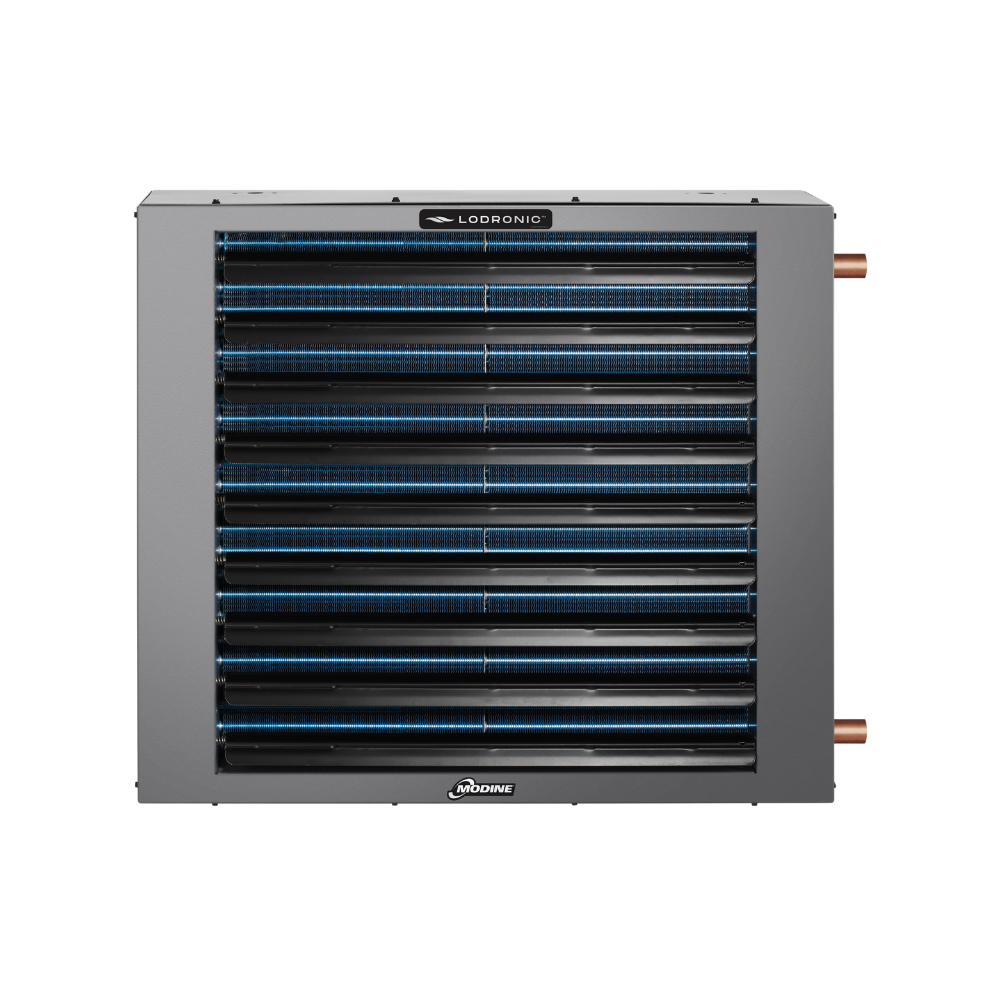

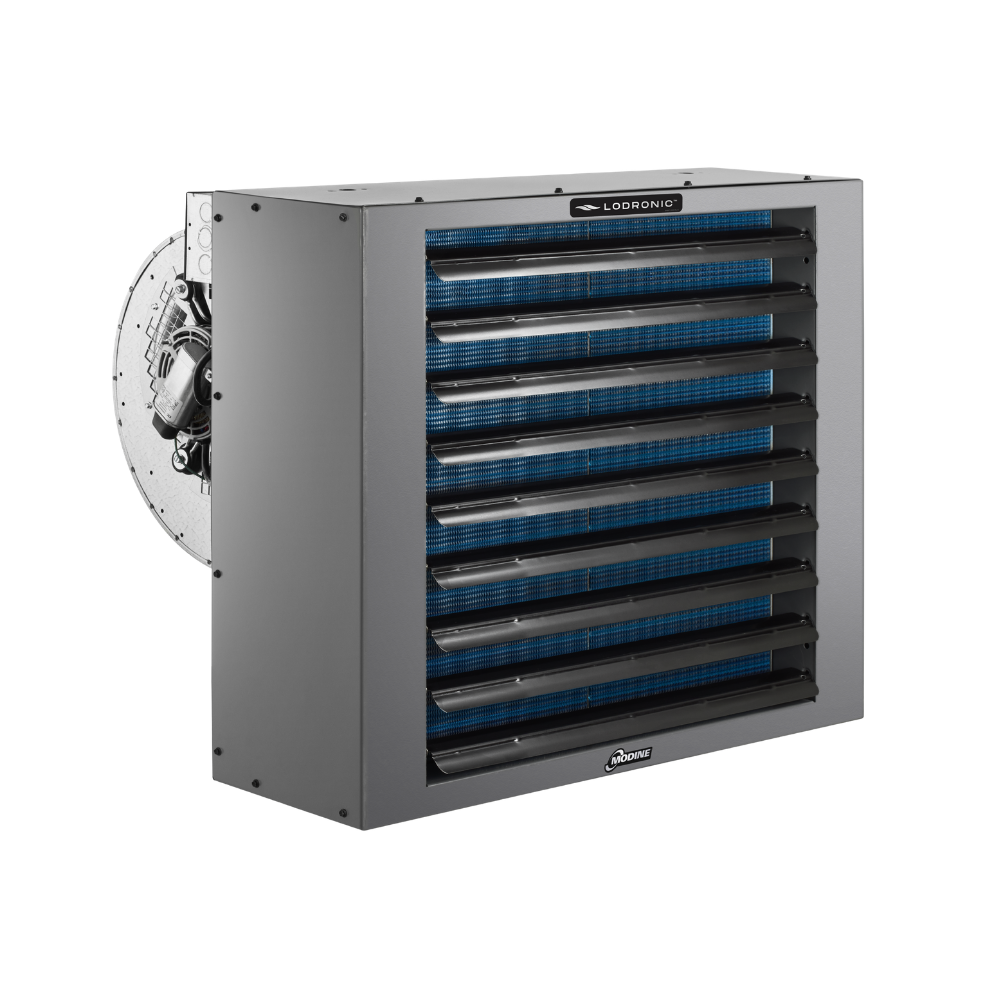

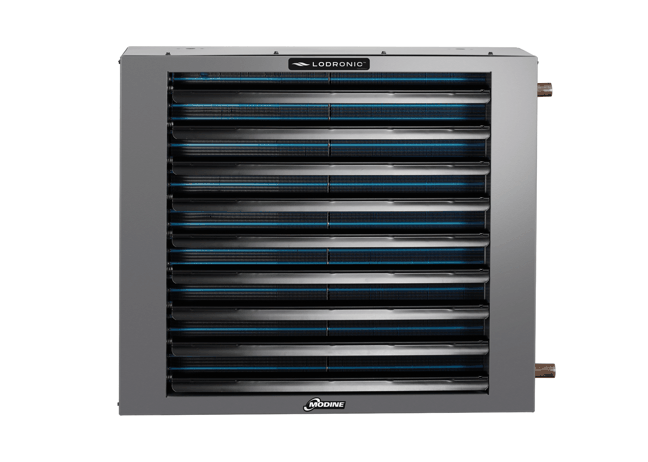

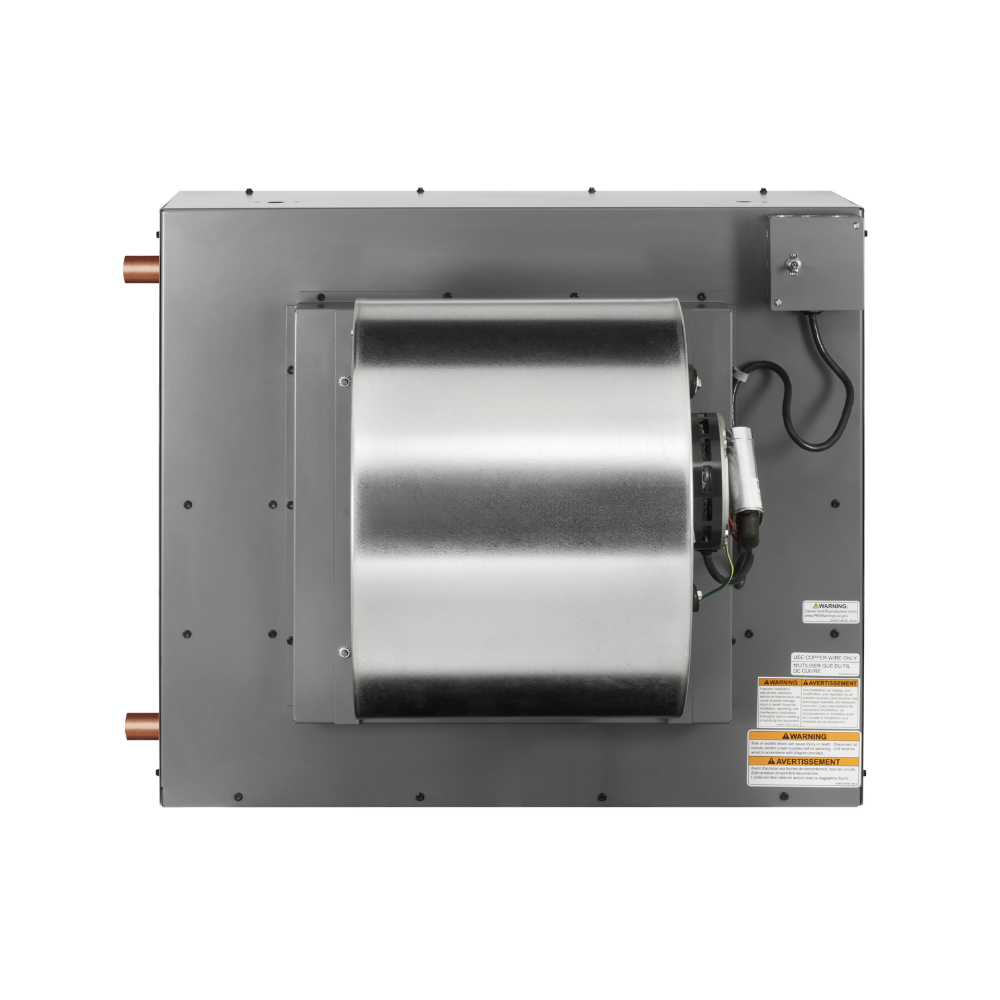

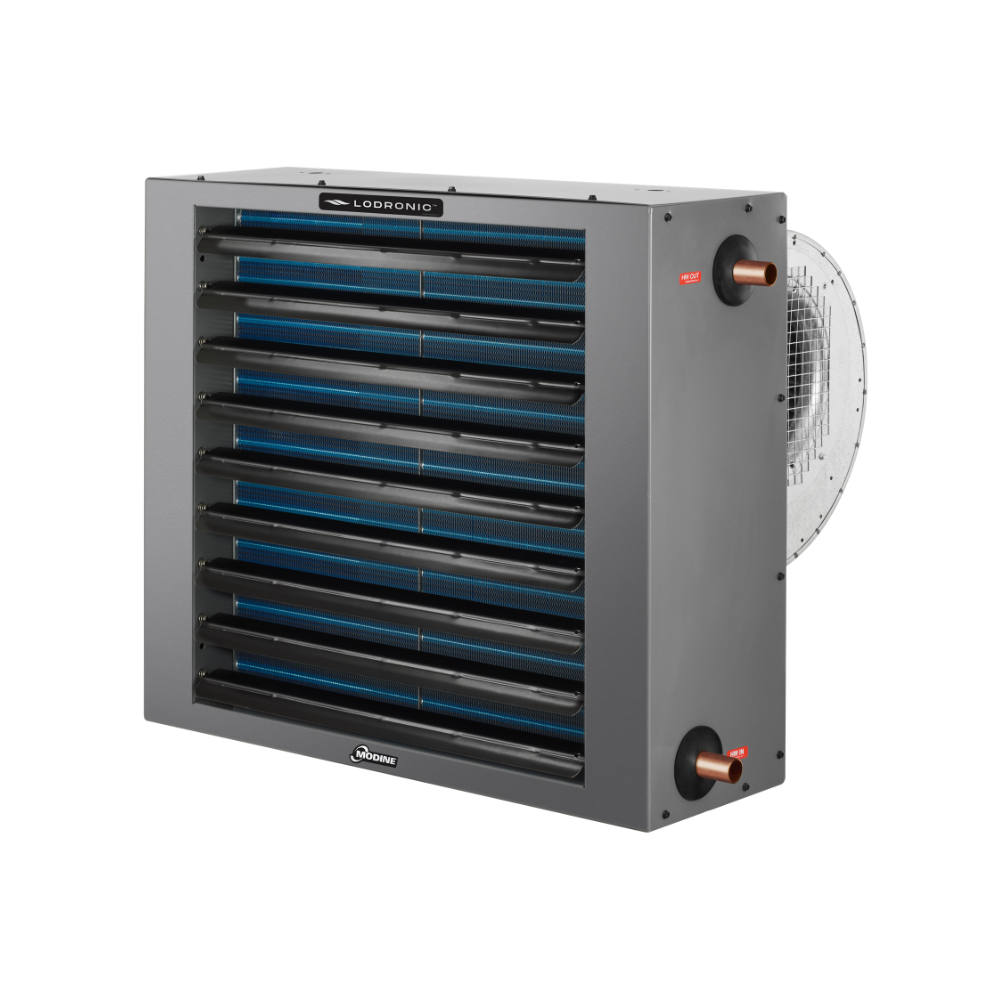

  • Model BCH – Horizontal High Efficiency Delivery with Blower
    • 2 Model Sizes: 103 and 218 MBH
Where To Buy

Highlighted Features

Enhance Performance

The Lodronic™ offers significant performance improvements when compared to standard hydronic unit heaters: 30% smaller footprint, 2.5x quieter, 50% less electric used, and 15% lighter.

Quiet, Clean Hydronic Heating

Using hot water instead of flame-based heating, the Lodronic™ HCH provides smooth, silent operation with no emissions—ideal for mechanical rooms, workshops, garages, and commercial spaces needing clean, consistent heat.

Compact & Contractor Friendly Design

The Lodronic’s lightweight, low-profile cabinet makes installation fast and simple. With multiple mounting orientations and easy access to piping and controls, it’s designed for seamless integration into any hydronic system.

Product Details & Specifications

Key Features
  • Optimal Performance: Specifically designed for high-efficiency boilers, geothermal systems, and air-to-water heat pumps.
  • Versatile Sizing: Available in six sizes ranging from 22,000 to 195,000 BTU/hr (based on a 140°F entering water temperature with a 60°F entering air temperature).
  • Available in Blower Model: ideal for applications with static pressure, such as ducting.
  • Convenient Connections: Side supply and return connections allow installation in low-clearance areas.
  • Enhanced Heat Transfer: Constructed with copper tubes and mechanically bonded aluminum fins for superior heat transfer performance.
  • Durable Motors: Features totally enclosed motors with built-in thermal overload protection for longevity.
  • Compact Design: 30% smaller footprint and 15% lighter than traditional units while operating at 2.5x quieter levels.
  • Energy Efficient: High-efficiency 4-row coil with low water pressure drop and up to 50% less electrical consumption compared to older units.
  • Low-Temp Compatibility: Specifically engineered for lower entering hot-water temperatures (<140°F)
  • Higher Discharge Temperatures: Achieves approximately 35% higher discharge air temperature while using less water.
  • Cooling Capability: Chilled-water cooling with optional drain pan.
  • Certification: UL1995 certified for use in hydronic unit heater applications.
  • Proudly Designed, Engineered, and Assembled in the USA: Commitment to quality and craftsmanship in every unit.
Options

Available Models

  • Model HCH: Horizontal High-Efficiency Delivery with Propeller Fan
  • Model BCH: Horizontal High-Efficiency Delivery with Centrifugal Blower Fan

Model Sizes

  • HCH – 6 Model Sizes: 22, 39, 67, 104, 170, and 195 MBH
  • BCH – 2 Model Sizes: 103 and 218 MBH

*Based on standard conditons of 140°F EWT with 60°F EAT, High Motor Speed

Supply Voltage

  • 115, 208, 240, 480, 575V/ I Phase
  • 208, 240, 480, 575V/ 3 phase

Additional Options

  • Hazardous location constructions available
Accessories

Factory-Installed

  • Fingerproof Fan Guard

Field Installed

  • Drain pan for cooling applications
  • Standard Thermostate(s)
  • Explosion-proof Thermostat
  • Thermostat Guard
  • Discharge Hoods
  • Manual Starter
  • Step-Down Transformer
Warranty
Applications

The Modine Lodronic™ HCH Series Low-Temperature Hydronic Unit Heaters are engineered for integration with high-efficiency boilers, geothermal systems, or air-to-water heat pumps.

Common Applications Include:

  • Warehouses and industrial buildings with hydronic heating systems.
  • Mechanical rooms or manufacturing plants where space is at a premium and noise must be minimized.
  • Entryways, garages, or workrooms connected to a building’s boiler or heat-pump water loop.
