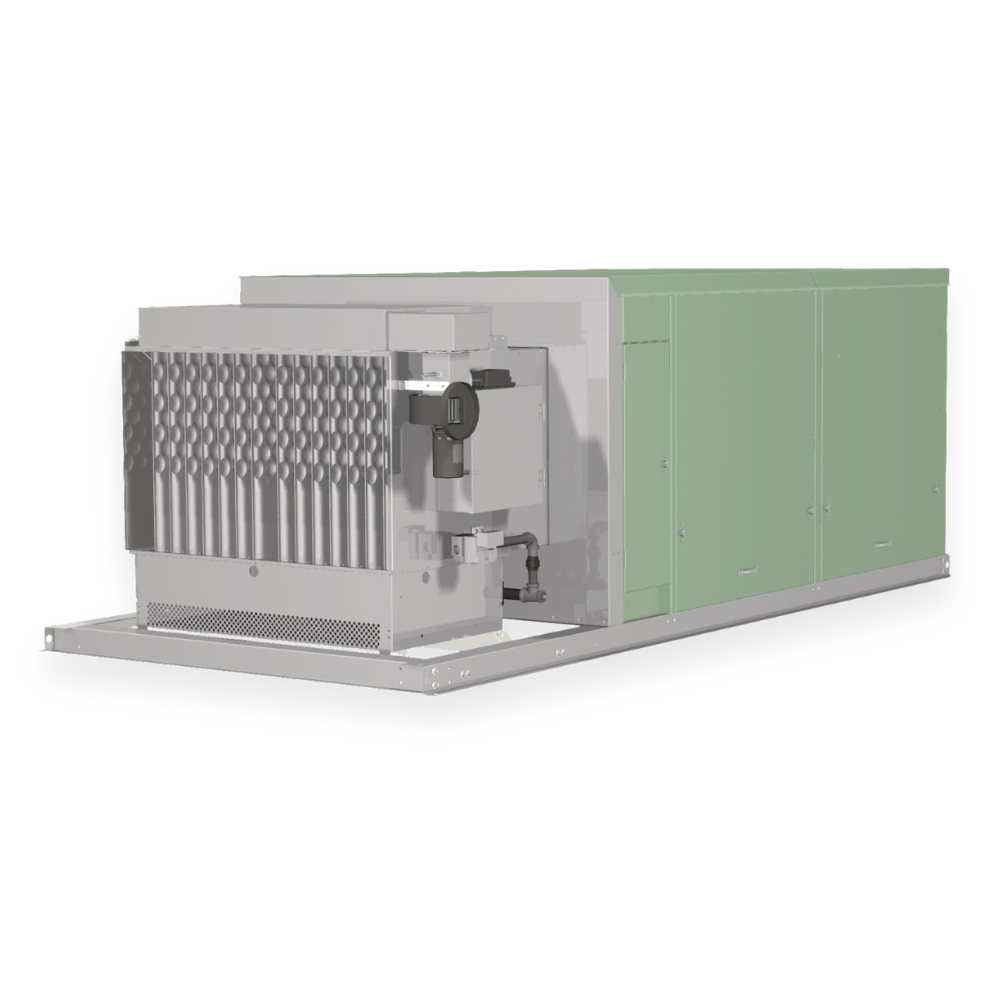

Indirect-Fired Indoor Power Vented Make-Up Air
Modine’s indoor gas-fired make-up air systems deliver reliable, high-efficiency heating for commercial and industrial applications. Designed for flexibility and performance, these duct furnace and blower systems are available in power-vented (DBP/DCP) with optional cooling coil sections for year-round climate control.
Power-Vented Make-Up Air Systems utilize an integral power exhauster for efficient horizontal or vertical venting, minimizing vent losses and improving building energy efficiency. Ideal for typical indoor environments, they offer high static pressure capabilities and a wide range of airflow options, ranging from 750 to 14,500 CFM.
Available Models:
DCP (Power-vented duct furnace with a blower system and a cooling coil cabinet)
DBP (Power-vented duct furnace with a blower system)
- Model configurations available are DBP (furnace & blower) and DCP (furnace, blower, & cooling coil section)
- Available in 16 model sizes from 100,000 to 1,200,000 Btu/hr
- Selection of 5 blower sizes and many drive and motor combinations allows robust blower performance from 750 to 14,500 CFM against a total static pressure of up to 3.0″ W.C.
- Variable frequency drives for multi-speed or variable air volume applications.
- Two-position, modulating, or 0-10 Vdc signal-controlled damper actuators.
- Modine Controls System utilizes a Carel microprocessor controller for complex HVAC/R Applications.
- 80% thermal efficiency for fuel savings.
- Uses natural or propane gas (field convertible from natural to propane gas).
- Right or left-hand control access can be specified when ordering the unit.
- Available with either a factory-installed DX cooling coil or the coil can be provided by others.
- A wide range of controls, options, and accessories for unit customization to meet even demanding specifications
- Operate on Natural or Propane Gas
- 409 stainless steel heat exchanger and burner
- 409 stainless steel drip pan
- Two-stage and electronic modulation controls for either natural or propane gas
- Building management compatible gas controls for modulation control using 0 – 10 Vdc or 4 – 20 mA input
- High and/or low gas pressure switches
