SL/SF/FL/PL Series

Hydronic Convectors

The Modine Hydronic Convector Series provides quiet, efficient perimeter heating in a slim-profile, architectural enclosure suitable for commercial, educational, and institutional buildings. Operating without a fan, these units rely on natural convection to distribute heat evenly, making them ideal for sound-sensitive environments such as classrooms, offices, libraries, and healthcare spaces.

Designed for either hot-water or steam systems, the convector lineup includes multiple cabinet profiles and fin-tube configurations to suit both new construction and retrofit projects. With floor-mounted, wall-mounted, sill-height, recessed, and custom-length options, the series supports seamless integration into virtually any perimeter heating layout.

Models

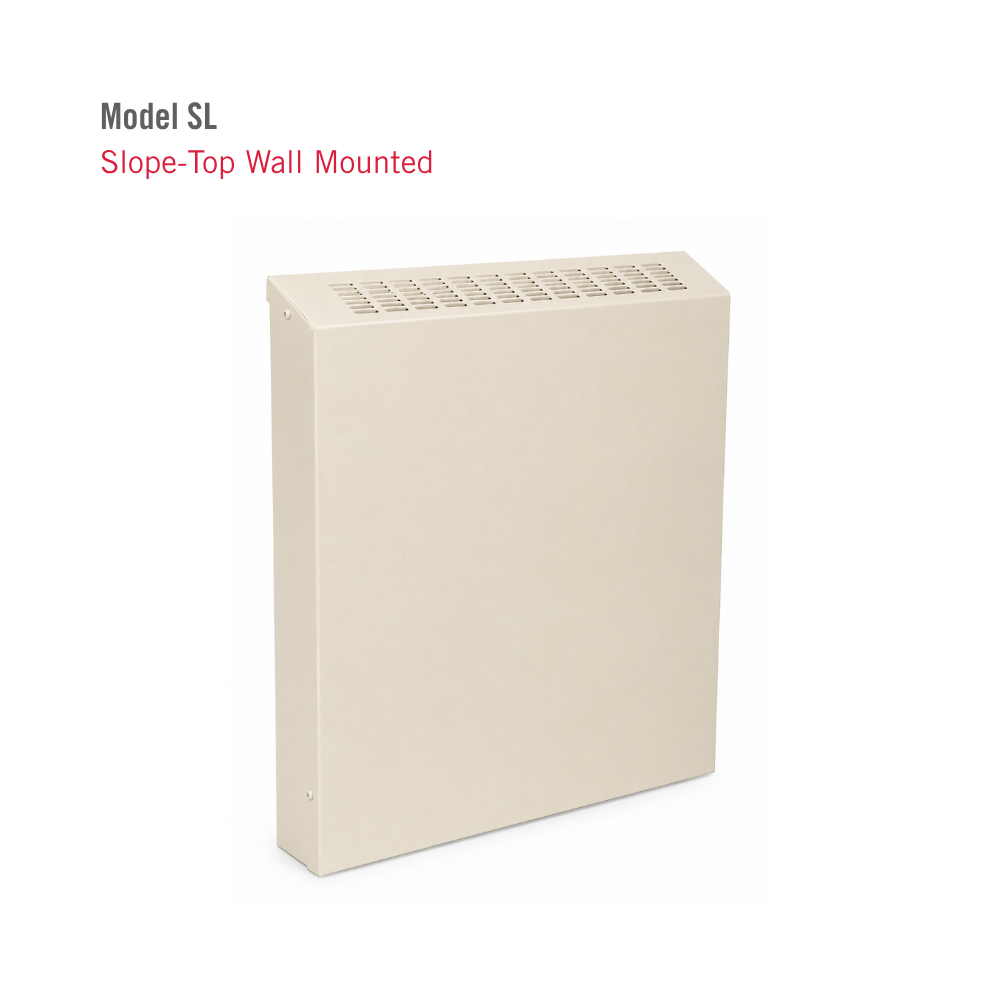

  • SL – Slope-Top Wall Mounted

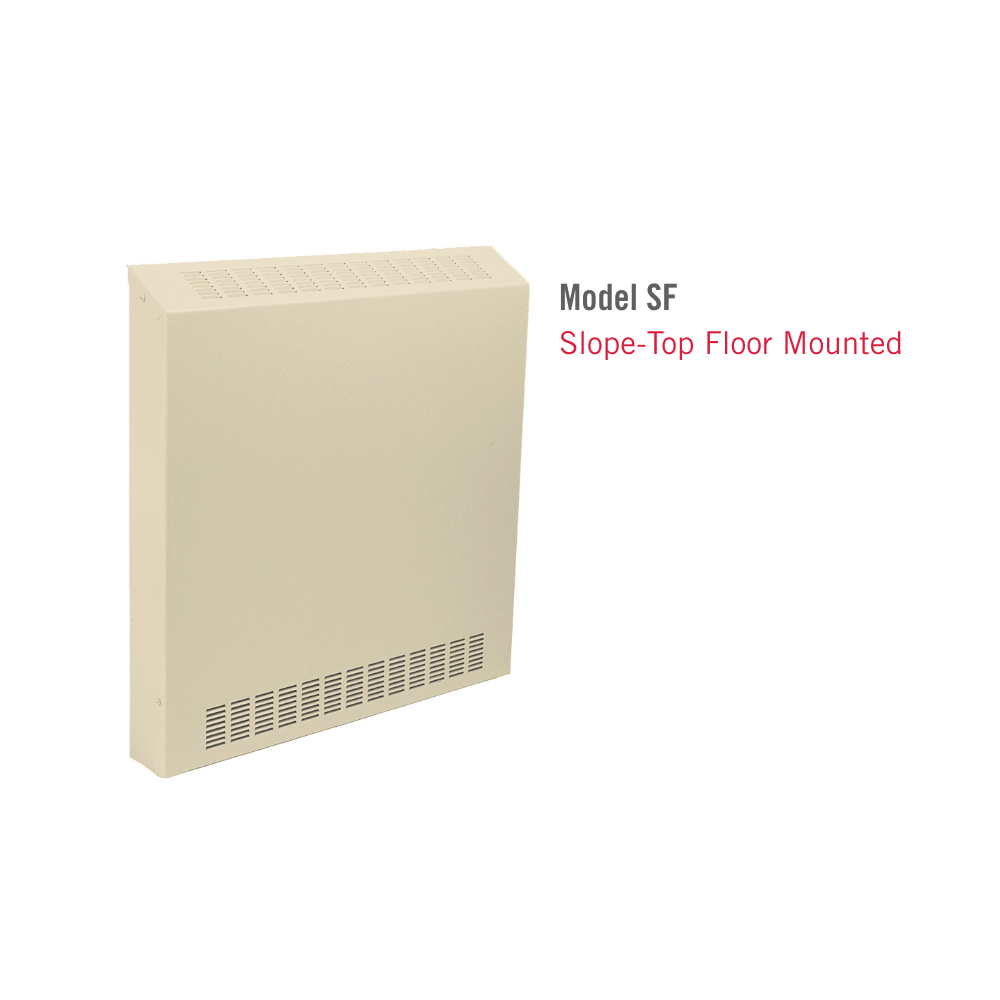

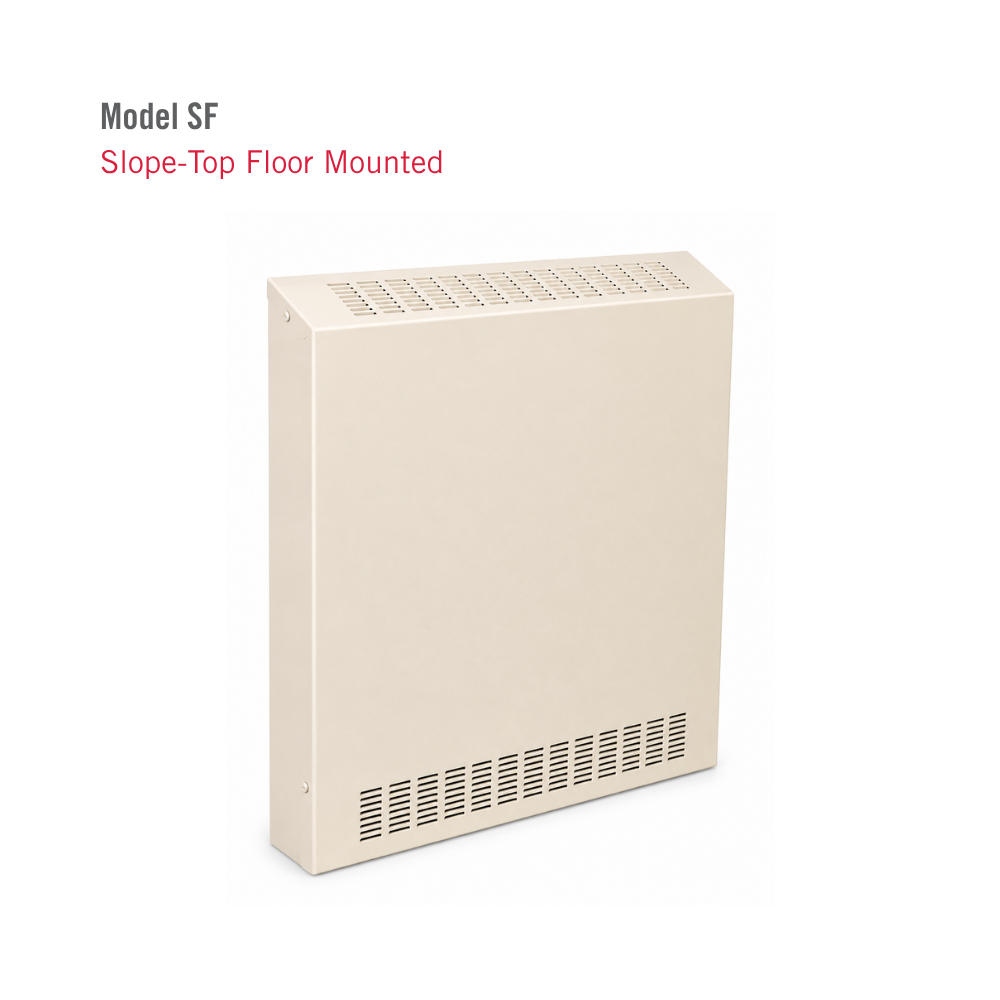

  • SF – Slope-Top Floor Mounted

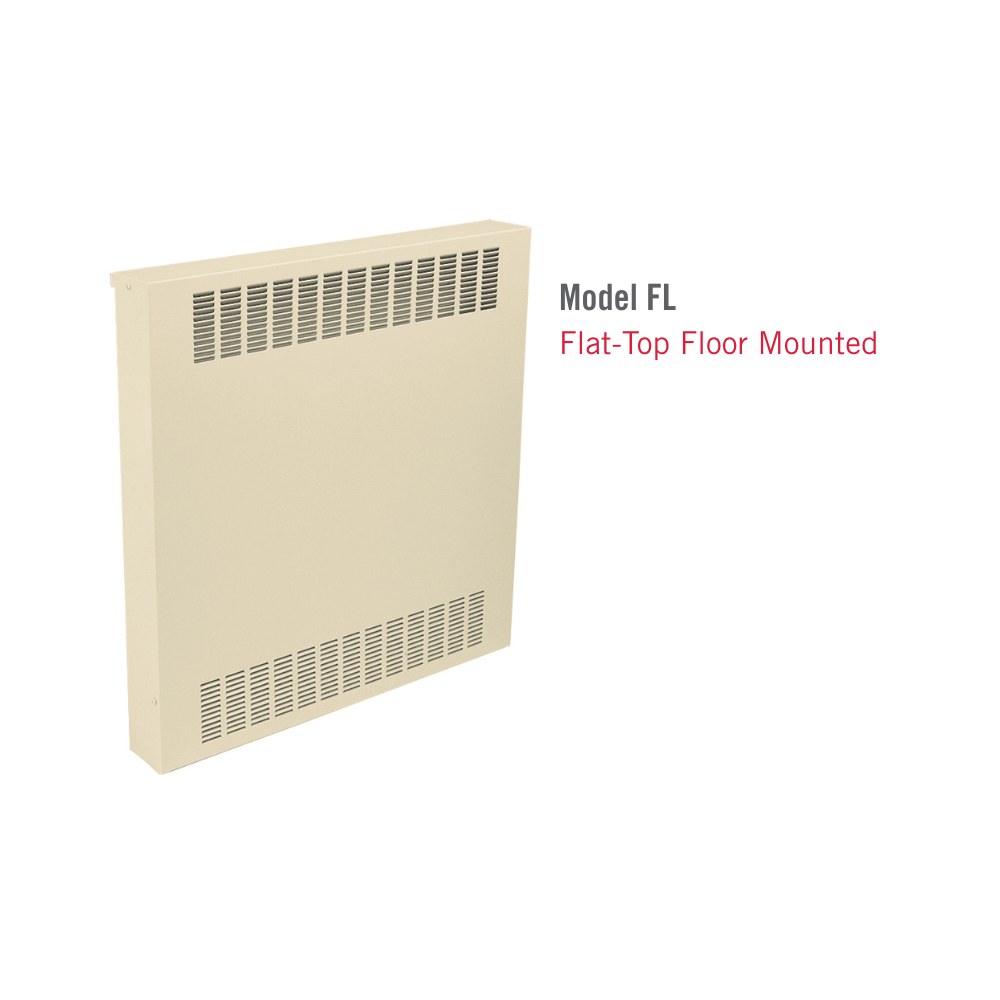

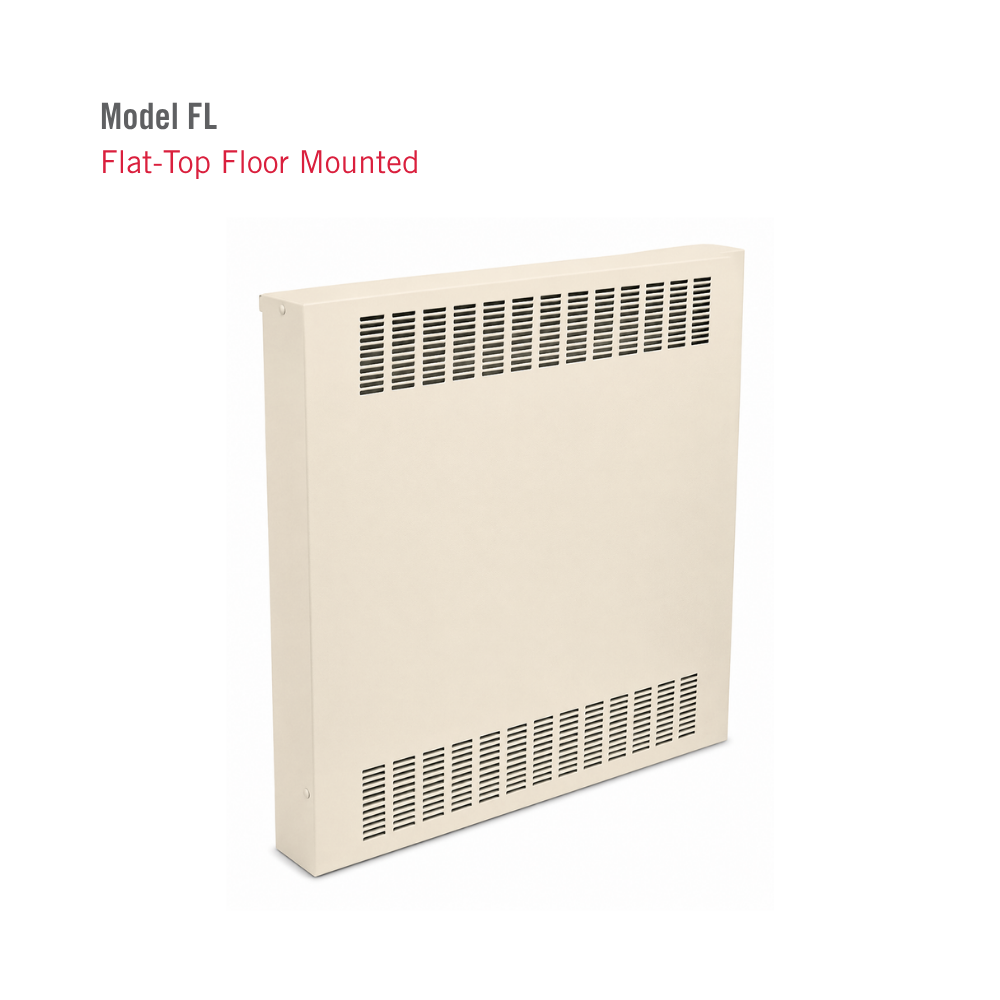

  • FL – Flat-Top Floor Mounted

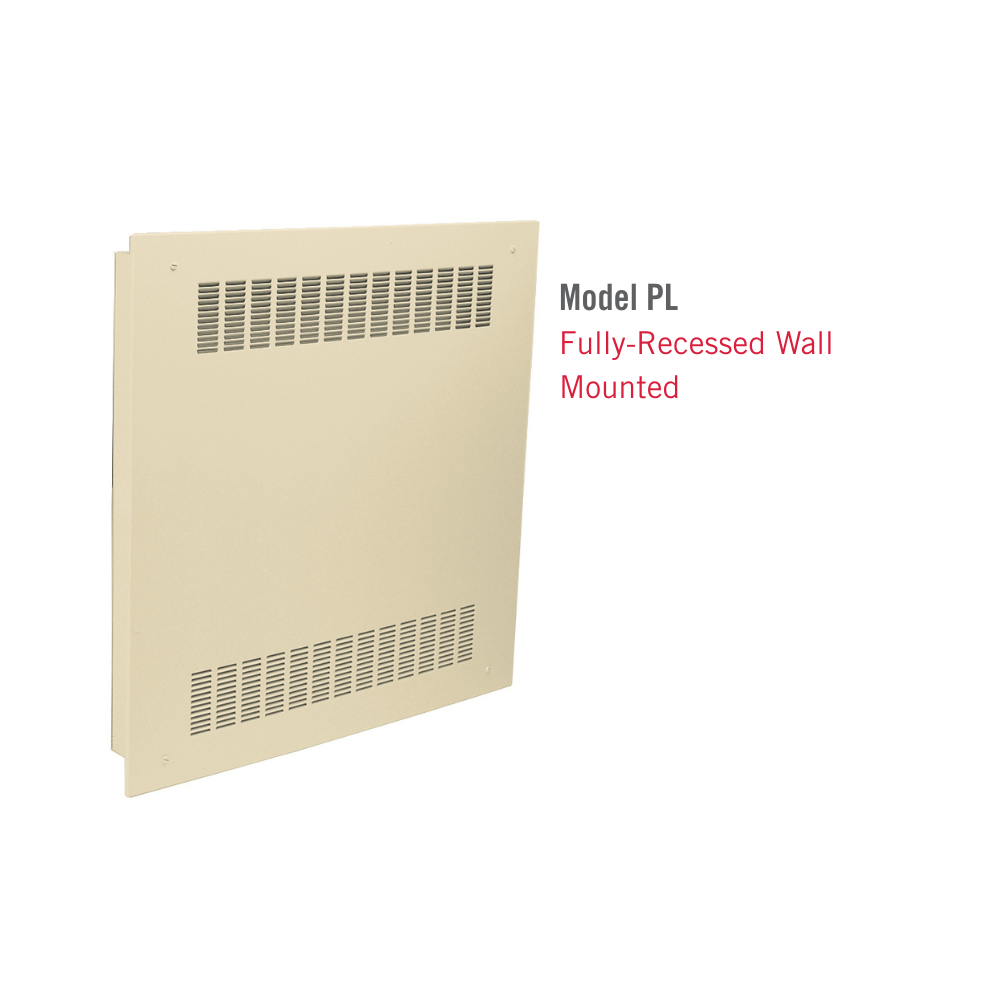

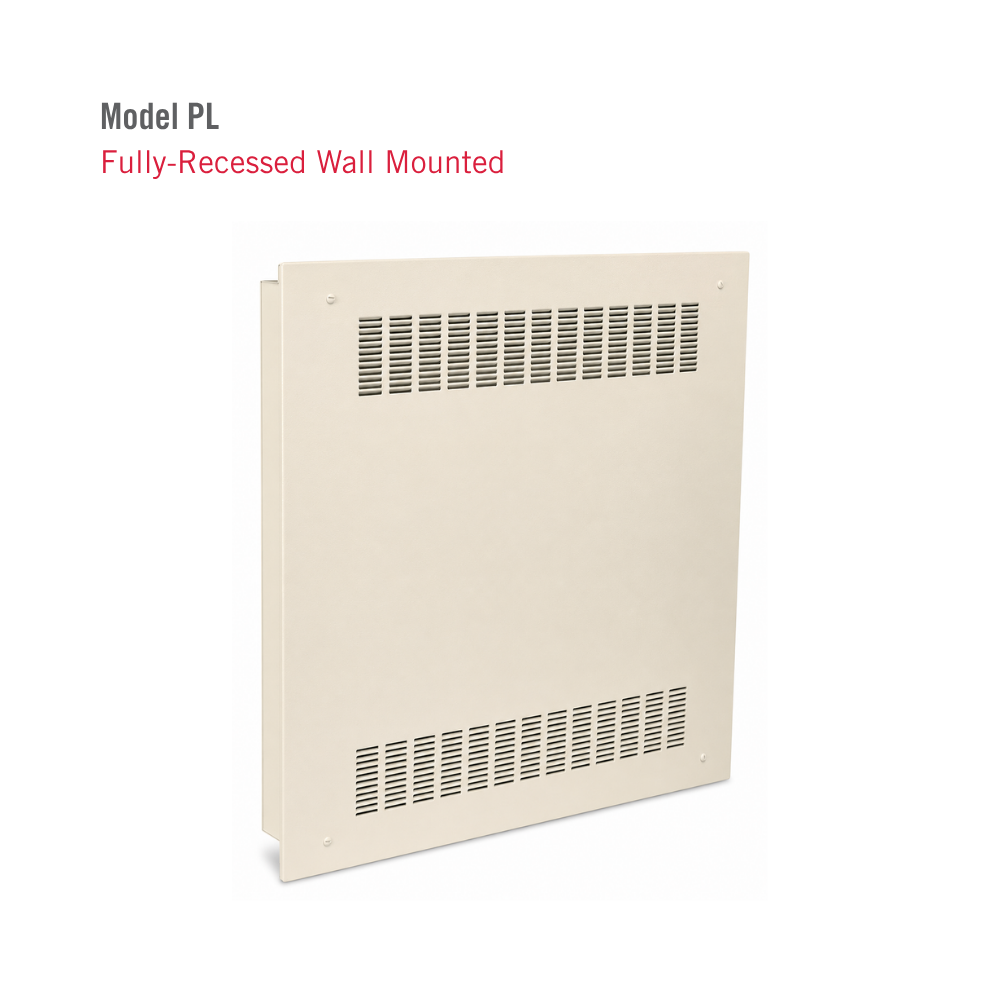

  • PL – Fully-Recessed Wall Mounted

Highlighted Features

Architectural, Low-Profile Design

Modine hydronic convectors blend effortlessly into commercial and institutional interiors. With slim, unobtrusive cabinet designs, they provide powerful heat while maintaining a clean, architectural aesthetic in classrooms, corridors, and office environments.

Quiet, Efficient Hydronic Heating

Using hot water or steam, convectors deliver silent, draft-free warmth—ideal for noise-sensitive areas like schools, offices, and residential spaces. They provide steady, comfortable heat without moving parts or electrical components.

Versatile Styles & Installation Options

Available in multiple configurations, lengths, and capacities, Modine convectors adapt easily to any building layout. Their durable steel construction and simple piping connections make them easy to install and built for long-lasting performance.

Product Details & Specifications

Key Features
  • Silent Natural Convection Design: Quiet operation with an efficient natural convection heating system.
  • Sleek Architectural Aesthetics: Designed with slim cabinets and clean lines, available in floor, wall, sill-height, and recessed configurations to fit seamlessly into any space.
  • Steam/Hot-water Compatibility: Compatible with both hot-water and steam hydronic systems, providing flexibility for various heating needs.
  • Customizable Outputs: Multiple fin-tube outputs and lengths available to meet specific load requirements, ensuring optimal performance.
  • Durable Construction: Crafted with a rugged 18-gauge front and 20-gauge sides and back panel, finished with a resilient polyester-epoxy powder coating for long-lasting durability.
  • Easy Maintenance Access: Featuring a removable front cover for straightforward servicing, maintaining efficiency with ease.
  • Efficient Heating Elements: Constructed with 1/2″ copper tubes and 0.010″ aluminum fins for effective heat transfer and delivery.
  • Smart Airflow Design: Equipped with louvered air outlet grilles for enhanced airflow and comfort, ensuring even heat distribution throughout the area.
  • Opposite End Connections: Designed for practical installation with opposite end connections for added versatility.
  • Customizable Configuration: Enhance functionality with optional accessories for protection, tamper resistance, and trim finishing.
  • Versatile Color Options: Choose from seven stylish colors to blend aesthetically into any environment.
  • Proudly Designed, Engineered, and Assembled in the USA: Commitment to quality and craftsmanship in every unit.

Options

Factory-Configured Options (Specified at the time of order to customize the unit configuration and build the final model number)

  • Enclosure Installation Styles:
    • Model SL: Slope-Top Wall Mounted
    • Model SF: Slope-Top Floor Mounted
    • Model FL: Flat-Top Floor Mounted
    • Model PL: Fully-Recessed Wall Mounted
  • Coil Depth (CD):
    • 4″ nominal depth (2 tubes)
    • 6″ nominal depth (3 tubes)
    • 8″ nominal depth (4 tubes)
  • Enclosure Lengths (EL):
    • Available from 24″ to 64″ long
  • Enclosure Heights (EH):
    • Available in 18″, 20″, or 26″ heights
  • Cover/Liner Metal Gauges (MG):
    • Available in heavy-duty or institutional thicknesses, including combinations of 14, 16, 18, and 20-gauge steel.
  • End Pockets: Options for vertical baffles and piping clearance at the ends of the cabinet, including:
    • 6″ or 8″ Left-Hand End Pocket
    • 6″ or 8″ Right-Hand End Pocket
    • 6″ or 8″ Left and Right End Pockets
  • Grille Options:
    • Die-formed Louvered inlet/outlet (Standard)
    • Perforated safety/security inlet/outlet (1/8-inch staggered holes)
    • Heavy-duty continuous extruded architectural aluminum Bar Grille with 15° deflection
    • Arched open inlet with louvered outlet (Not available on Model SL)
  • Access Door Configurations:
    • Positioned on the left side, right side, or both sides at center, top, or bottom cabinet heights.
  • Door Latches & Hardware:
    • Slot Head latch (Standard)
    • Security Allen Key latch
    • Security Spanner Head latch
  • Heating Element Connections:
    • Standard opposite-end connections
    • Optional Reverse Header Connections.
  • Cabinet Fasteners:
    • Phillips head screws (Standard)
    • Tamper-proof spanner-head screws
  • Cabinet Insulation:
    • Optional 1/2″-thick fiberglass insulation on the back only, or sides, back, and top (Top insulation does not apply to SF or SL models).
  • Overlap Trim (Model PL only):
    • Standard 4-sided overlap front panel trim
    • Optional 3-sided overlap trim (Required on recessed Model PL when configured with an arched inlet).

→ Configuration details are available in the product catalog: 13-111 Hydronic Convectors Catalog


Accessories

Field-Installed Accessories (Shipped loose for on-site installation)

  • Damper Assemblies
    • Full-outlet-width dampers for airflow volume and heat control
  • Standard Knob Damper
    • Features a manual control knob
  • Security Damper
    • Operated exclusively with a tamper-resistant Allen key wrench for school/institutional settings

Warranty

Applications

The Hydronic Convector Series is engineered for perimeter and zone heating across commercial and institutional interiors. Common applications include:

  • Schools, classrooms, and administrative areas
  • Office buildings and meeting rooms
  • Corridors, lobbies, and vestibules
  • Hospitals, clinics, and healthcare waiting areas
  • Government buildings and public facilities
  • Retail and mixed-use commercial spaces
  • Dormitories, residential high-rises, and multifamily common areas

Related Products

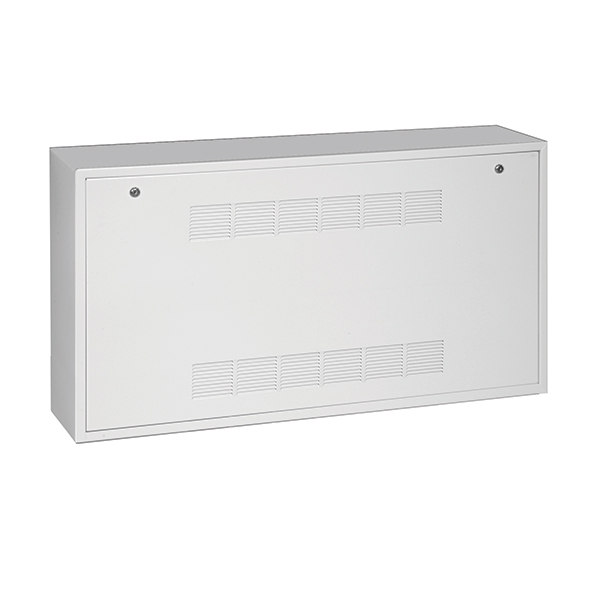

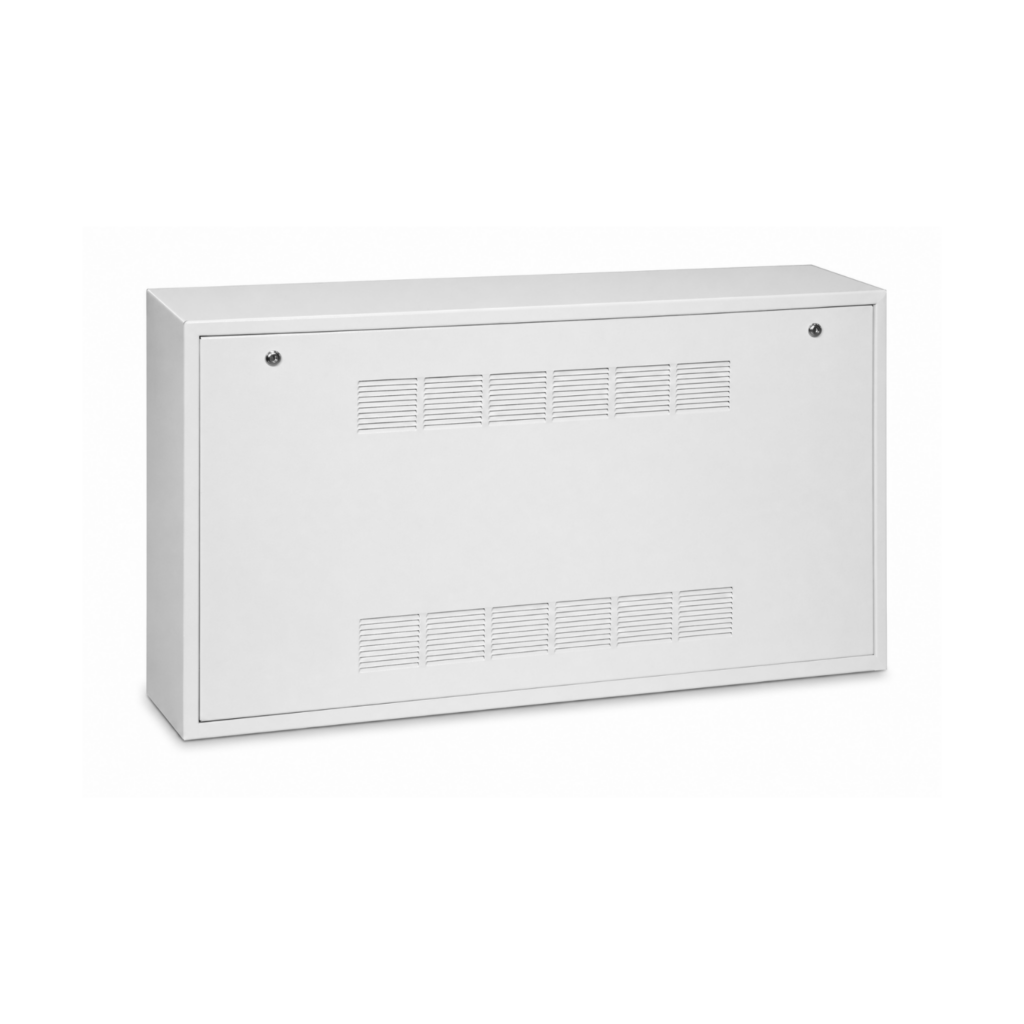

CW Front Main
