SCW Series
Ductless Ceiling Cassette
The Modine Ductless Ceiling Cassette offers an elegant, high-performance climate control solution for commercial ceilings, retrofit zones, and architecturally sensitive interiors. Designed for quiet operation and minimal disruption, the SCW series supports chilled-water cooling and can optionally incorporate hydronic heating, allowing a single cassette to handle both comfort cooling and heating in one footprint. Ideal for schools, offices, laboratories, conference centers, and environments with suspended ceilings, the Modine Ductless Ceiling Cassettes meet the needs of both specifiers and facility managers seeking comfort, flexibility, and low-impact installation.
Models
- SCW
- 4 model sizes: 8, 12, 18, and 36 nominal MBH
Highlighted Features
Quiet, Even Air Distribution
Engineered to deliver consistent, draft-free comfort, the SCW uses four-way airflow for balanced temperature distribution across the room.
Discreet, Space-Saving Ceiling Design

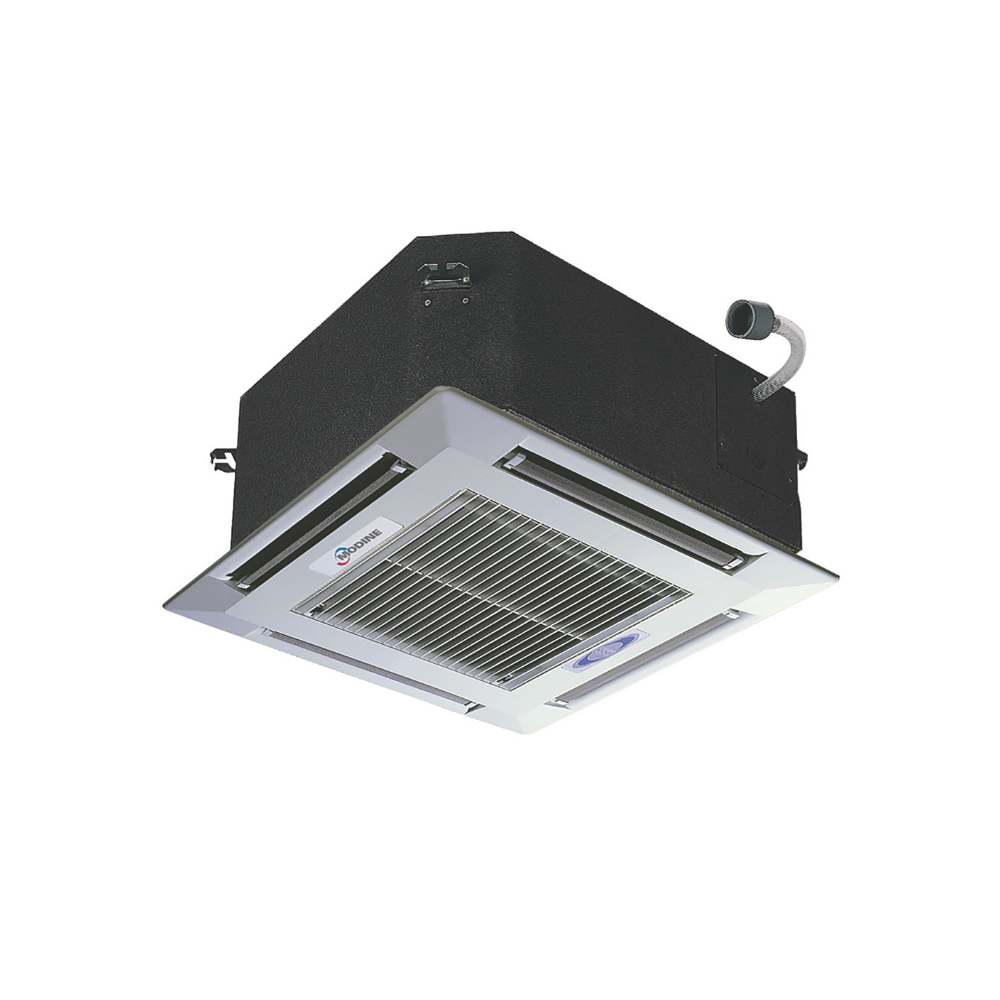

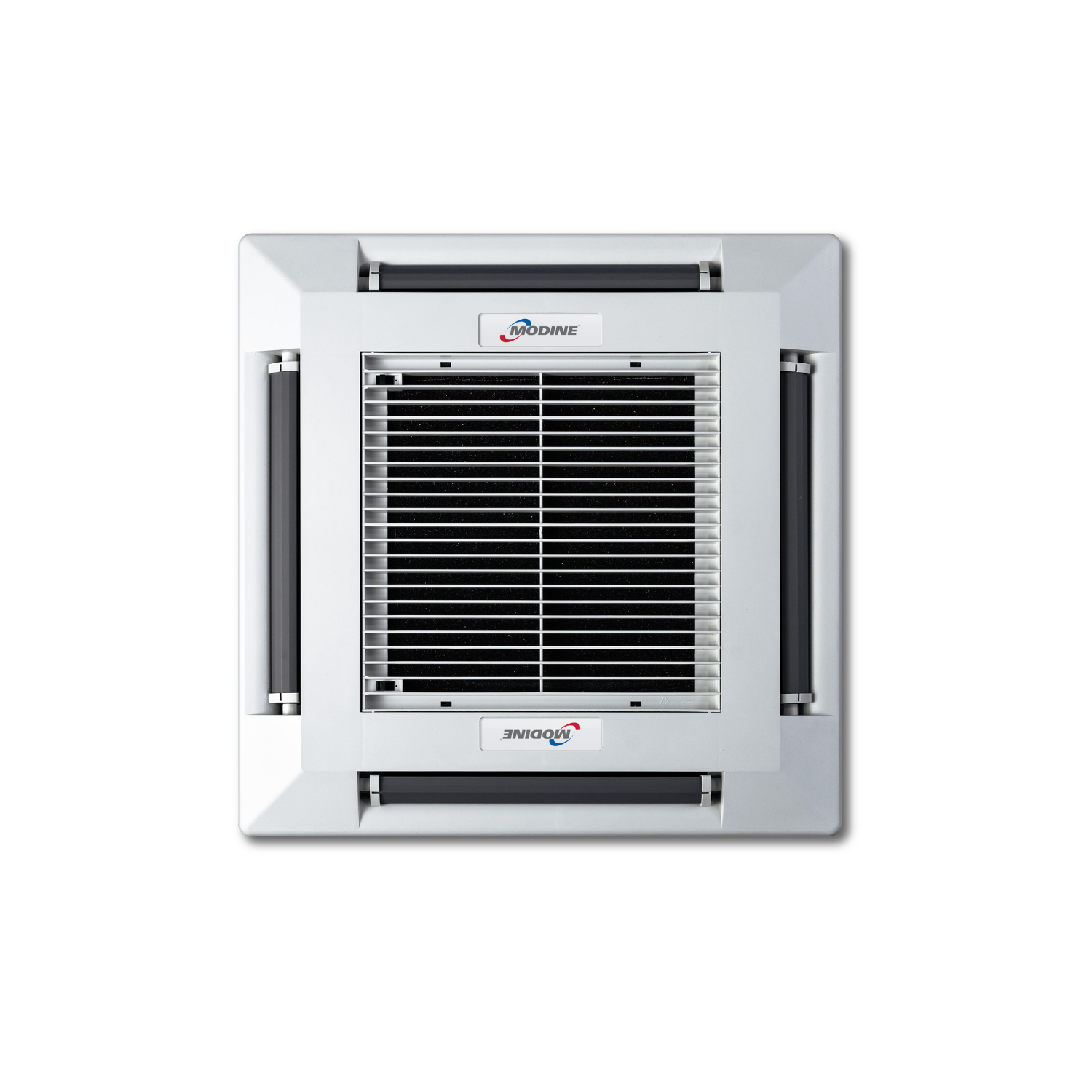

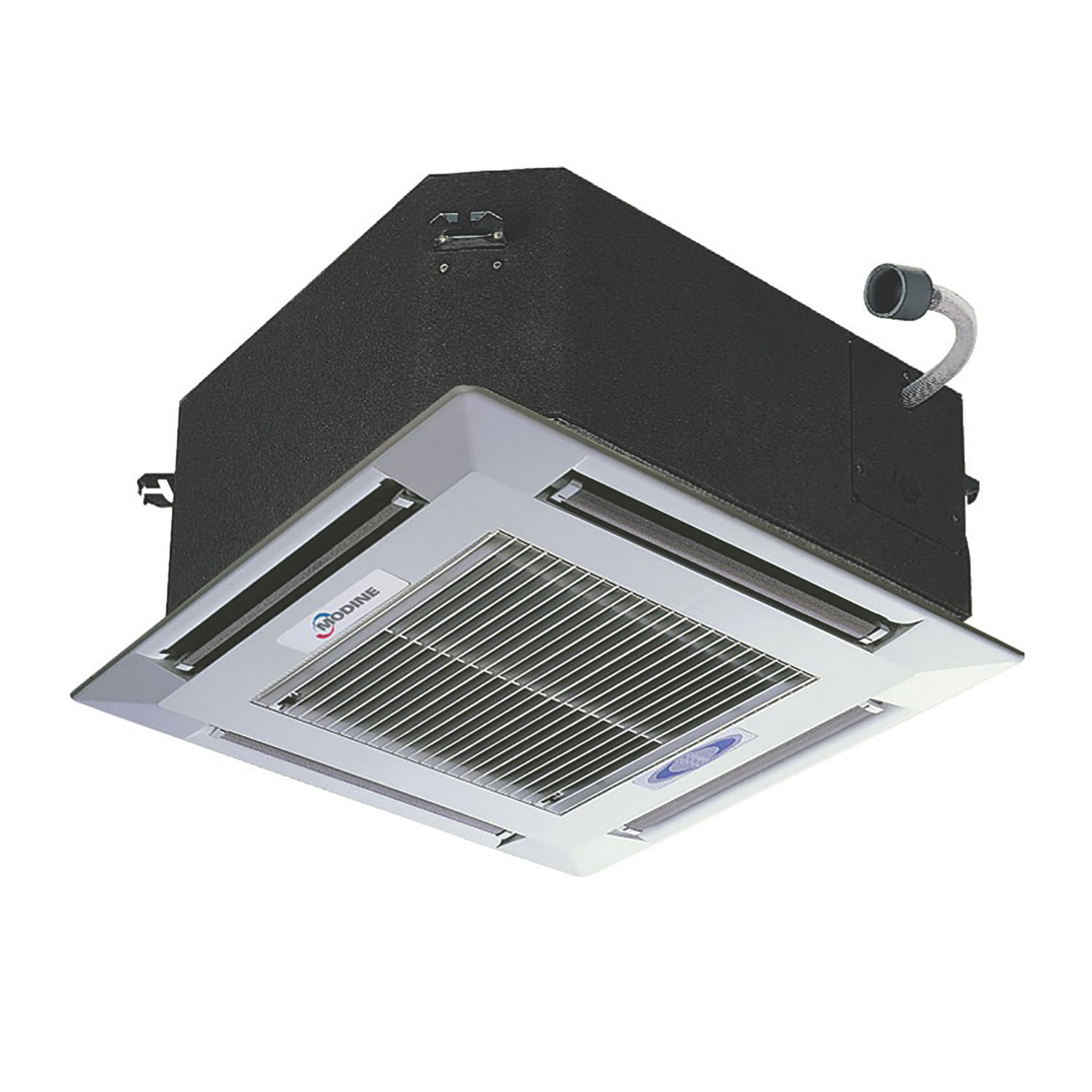

The SCW installs flush within the ceiling grid, delivering heating and cooling without taking up wall or floor space. Its low-profile appearance makes it ideal for modern commercial interiors where clean lines matter.
Efficient, Ductless Cooling and Heating
The SCW provides efficient heating and cooling without the need for ductwork, making installation simple in both new construction and retrofit applications. Its advanced controls enhance comfort while optimizing energy use.
SCW Series
Ductless Ceiling Cassettes
Key Features
Key Features
- Available in 4 sizes: 8, 12, 18, and 36 MBH.
- Electronically Commutated (EC) Motor on all sizes.
- Compact ceiling cassette format designed for minimal clearance above suspended ceilings.
- Whisper-quiet operation with a centrifugal fan and sound-absorbent cabinet insulation, achieving noise levels of ≤ 50 dB in many models.
- Cooling is provided through a chilled-water coil as a standard feature.
- Optional heating modules can be upgraded to factory-installed hot water coils.
- Integrated condensate pump and check valve to efficiently drain moisture from the cassette tray.
- Flexible control options include electromechanical or microprocessor controllers and an infrared remote control, with optional BMS connectivity.
- Zoned control capability significantly reduces energy costs.
- Designed for easy installation in both new and existing buildings.
- Branch duct knock-outs are included for connecting to remote outlets.
- Fresh-air knockouts allow for ducted outside-air connections.
- UL60335 compliant for safety and reliability.
- Proudly Designed, Engineered, and Assembled in the USA: Commitment to quality and craftsmanship in every unit.
Options
Options
Factory-Configured Options (Configured when ordering the unit)
- Nominal Capacity (MBH): 8,000, 12,000, 18,000, or 36,000 Btu/Hr
- Supply Voltage:
- 115V/60Hz/1Ph
- 208V/60Hz/1Ph
- 230V/60Hz/1Ph
- 277V/60Hz/1Ph
- 110V/50Hz/1Ph
- 220V/50Hz/1Ph
- Generation & Motor Type: Third Generation with EC Motor
- Unit Control System:
- Electro-Mechanical Controls

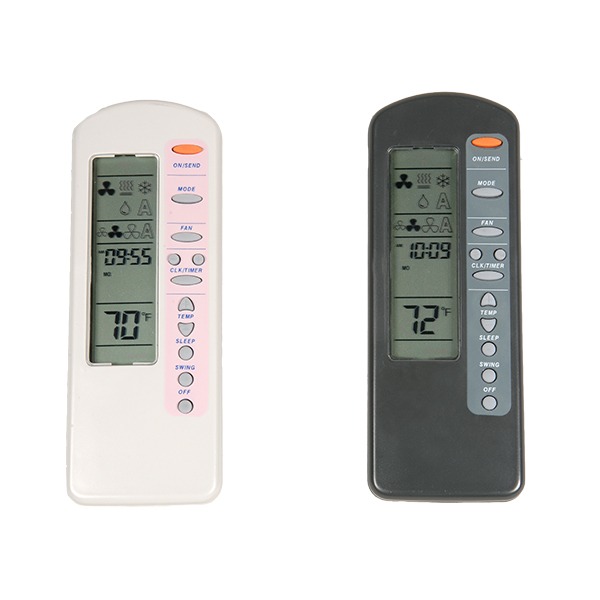

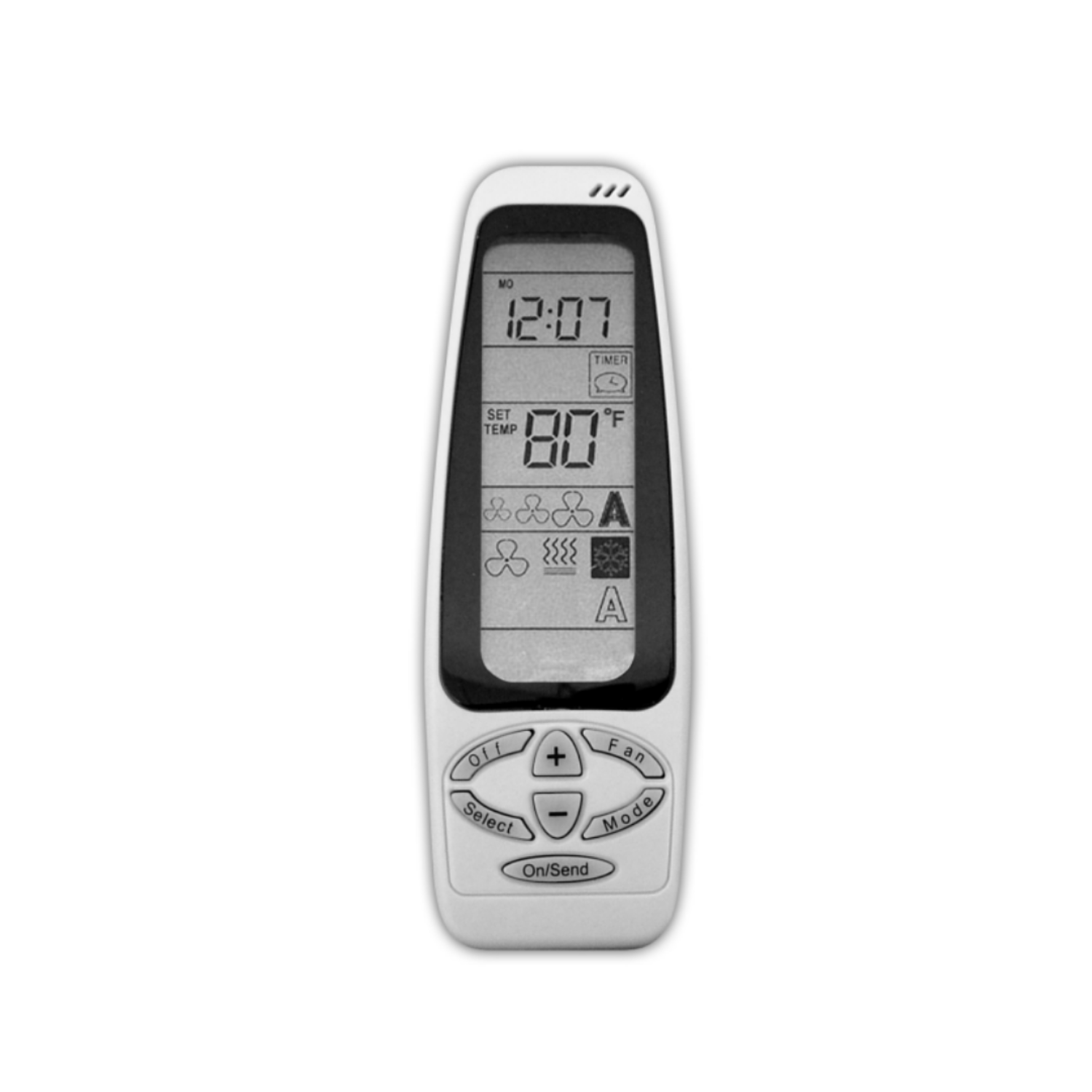

- Microprocessor Controls (Infrared Remote Control) — Features built-in BACnet & Modbus capability
- Heating Options:
- None
- Hot Water Heating Coil (4-Pipe system)
- Hot Water Heating (2-Pipe system – utilizes the main chilled water coil)
- Filters: Standard (60–80% Arrestance), MERV 10, or MERV 13
- Hot Water Heating Coil Freeze Protection: None or Hot Water Coil Freeze Protection
- Power Option: None or Cassette Power Disconnect Switch
- Ionization Option: Needlepoint Bipolar Ionization (NPBI®)
Accessories
Accessories
Field-Installed Accessories (Shipped loose for installation on-site)
Thermostats (Field-Installed)
- For units with Electro-Mechanical Controls (Digit 8 = E):
- Aquastat
- Mechanical Thermostat (Manual Changeover — Cooling Only)
- Mechanical Thermostat (Manual Changeover — Cooling + 1 Stage Heat)
- Digital Thermostat (Auto Changeover — Up to 2 Stages Cooling and Heating)
- Digital Thermostat (Auto Changeover, Programmable — Up to 2 Stages Cooling/Heating)
- For units with Microprocessor Controls (Digit 8 = M):
- Touchscreen Thermostat
Ventilation & Air Distribution Accessories
- Spare Filter Sets: Sized for unit sizes (available in Standard Spare, MERV 10 Spare, or MERV 13 Spare sets)
- Fresh Air Kit (FA Duct Collars)
- Supply Air Duct Collars (Quantity of 2)
- Shroud (For under-ceiling mounting configurations)
Control Valve Packages (3/4″ Two-Position Spring Return with Two 3/4″ Shut-Off Valves)
- Chilled Water Control Valves (2-Way or 3-Way with piped bypass leg)
- Hot Water Control Valves (2-Way or 3-Way with piped bypass leg)
- 2-Pipe CW/HW Control Valves (2-Way or 3-Way with piped bypass leg)
Factory Services
- Start-Up Service (Performed on-site by a Factory Service Technician)
Applications
Applications
The SCW Series is ideal for spaces where aesthetic, ceiling integration, and noise control are priorities.
Common applications include:
- Classrooms, educational facilities, and libraries
- Office suites, conference room, and executive lounges
- Laboratories, clean rooms, and research facilities
- Retrofits in buildings with existing chilled-water loops
- Suspended-ceiling environments where visible equipment must be minimized
