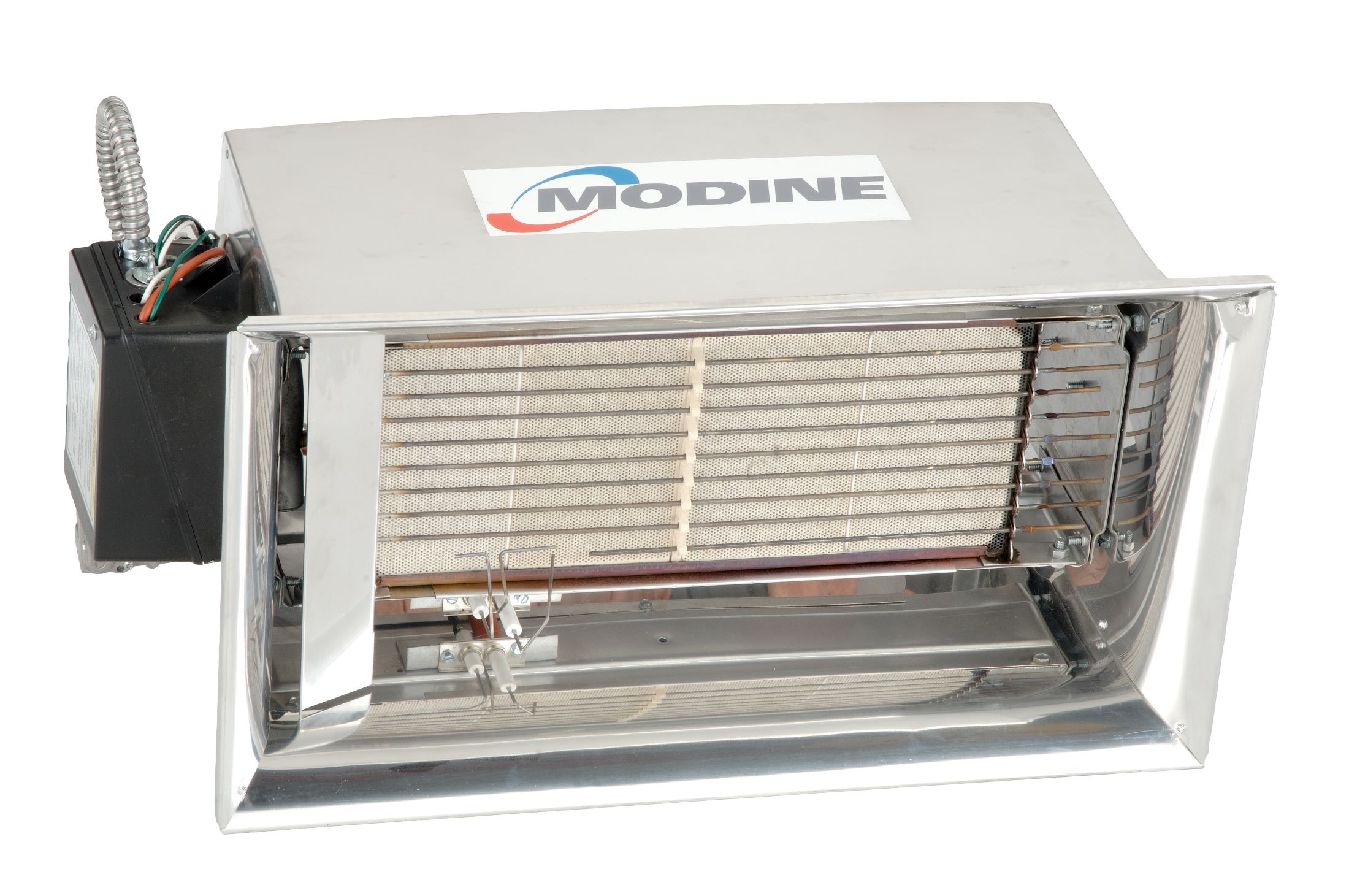

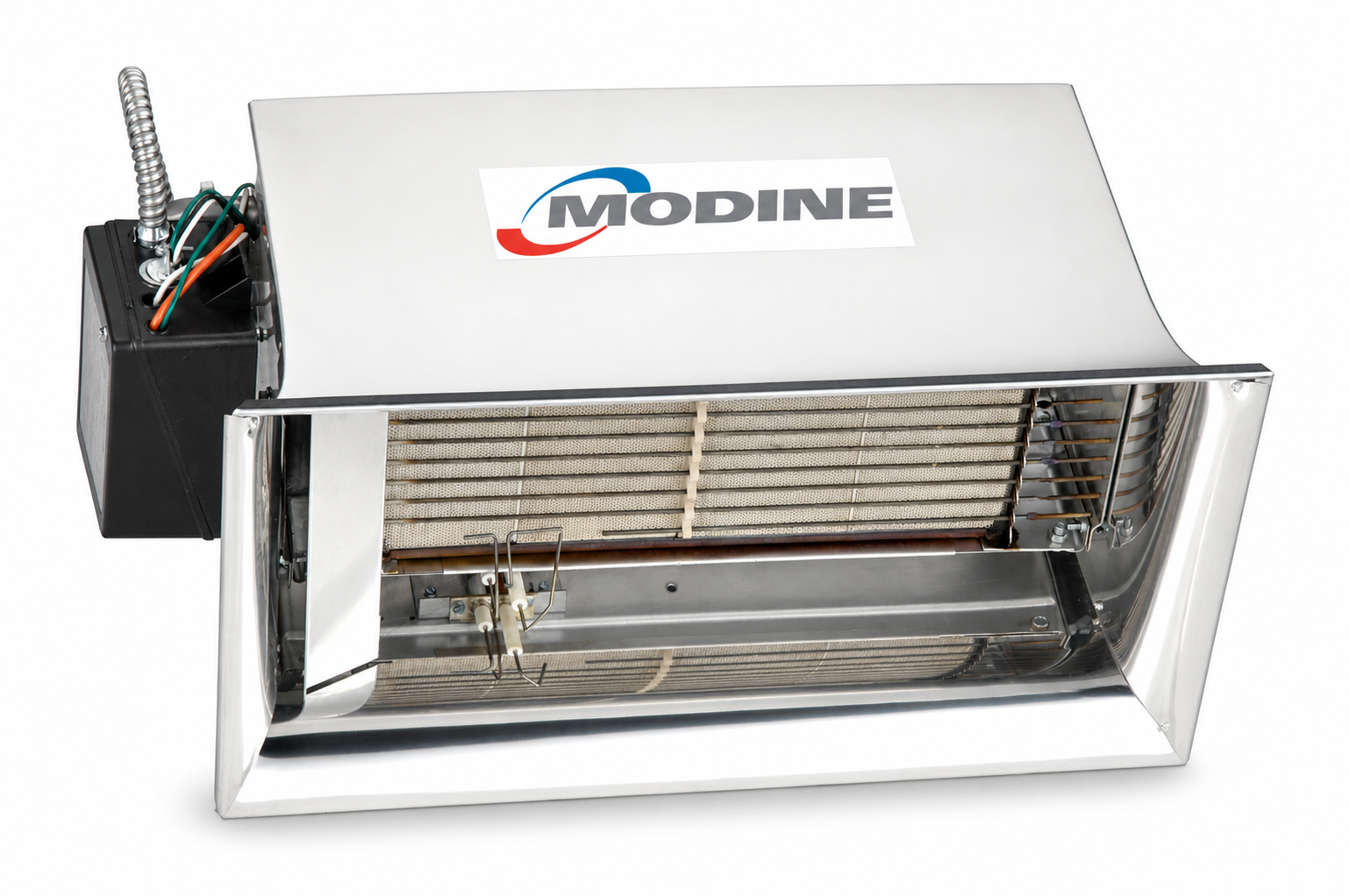

IHR Series
High-Intensity Indoor Gas-Fired Infrared Heater
The Modine IHR High-Intensity Infrared Heater Series is engineered to deliver concentrated, gas-fired radiant heat in industrial and commercial environments with high ceilings and demanding heating requirements. Unlike conventional forced-air systems that heat large volumes of air, the IHR Series emits infrared energy that directly warms floors, equipment, and occupants, providing rapid comfort where it is needed most.
Designed for high-bay applications, the IHR Series is well-suited for facilities that require spot heating, zoned comfort control, or fast recovery in cold environments. The high-intensity infrared design allows for effective heating even in spaces with air movement, open doors, or intermittent occupancy.
Models
- IHR – High-Intensity Infrared Heater (30,000 to 160,000 BTU)
Highlighted Features
High-Bay Performance
Designed for mounting heights typical of warehouses, manufacturing plants, and industrial facilities.
High-Intensity Radiant Heat
Concentrated infrared energy delivers fast, targeted heat to people and surfaces below.
Fuel-Efficient Zonal Heating
Radiant heat minimizes air stratification and reduces wasted energy in large spaces.
Product Details & Specifications
Key Features
High-Temperature Cordierite-Based Grooved Ceramic Tiles: Designed with perforations on both the top and bottom of the grooves to enhance temperature control and surface area, optimizing heat transfer while maintaining lower gas input ratings.
Polished Aluminum Reflectors: Efficiently direct radiant heat to specific areas, improving comfort over larger spaces.
16-Gauge Aluminized Steel Frame: Durable construction provides sturdy support for easy chain mounting.
Fanless Design: Eliminates noise, drafts, and maintenance, while also reducing electrical energy costs.
Wide Input Range: Available from 30,000 Btu/hr to 160,000 Btu/hr, suitable for a wide range of heating requirements.
Flexible Ignition Options: Features direct-spark or self-energizing standing-pilot ignition for maximum application versatility.
115V and 25V Controls: Accommodates a wide range of electrical inputs.
Externally-Mounted Controls: Allow easy access to the gas valve, control system, transformer, and gas orifices, simplifying installation and maintenance.
Easy Burner Replacement: Burners can be replaced by removing just one fastener, negating the need to remove the unit from its mounted position for servicing.
CSA Design Certification: Ensures conformity to national safety standards for indoor, unvented operation in commercial and industrial applications.
Options
Factory-Configured Options (Configured when ordering)
- Burner Input Capacities (Model Sizes):
- IHR 30: 30,000 BTU/hr
- IHR 60: 60,000 BTU/hr
- IHR 90: 90,000 BTU/hr
- IHR 130: 130,000 BTU/hr
- IHR 160: 160,000 BTU/hr
- Fuel Configuration
- Natural Gas
- Propane (LP) Gas
- Ignition & Control Options:
- Direct Spark Ignition (DSI): Features a standard electronic spark igniter (available in either 115V or 24V control circuit voltages)
- Self-EnergizingStanding Pilot: Features a continuous manual pilot with a millivolt gas valve safety shut-off (Ideal for applications requiring no external electrical power)
- Electrical Inputs / Control Circuit Voltages:
- 115 Volt AC controls
- 25 Volt AC controls
- Millivolt DC controls
Accessories
- General Field Accessories
-
- Chain Mounting Set: IHR 5′ Chain set with 4 “S” hooks
- Safety Sign: IHR Clearance Safety Limit Sign
- Gas Line Components
-
- Flexible Connector Hoses:
- IHR 24″ stainless steel flexible (1/2″ ID) connector hose
- IHR 24″ SS flexible (1/2″ ID) connector hose with PVC protective coating
- IHR 36″ stainless steel flexible (3/4″ ID) connector hose
- Gas Regulators:
- IHR regulator, 2 max psi, 1/2″ x 1/2″ NPT (150,000 BTU/Hr flow capacity)
- IHR regulator, 2 max psi, 3/4″ x 3/4″ NPT (300,000 BTU/Hr flow capacity)
- IHR regulator, 2–5 max psi (Natural Gas only), 1/2″ x 1/2″ NPT
- Gas Cock:
- IHR Gas Cock 1/2″ x 1/2″ with 1/8″ NPT pressure tap
- Flexible Connector Hoses:
- Controls
-
- Transformers & Relays:
- IHR 120V 40 VA transformer (for use on all 25V heaters)
- IHR Combo relay/transformer (for controlling 120V units with 24V thermostats)
- Thermostats:
- IHR Electric thermostat (35° to 75°F range)
- IHR Thermostat with rain-tight enclosure (45° to 100°F range)
- IHR 120V programmable thermostat (45° to 90°F range)
- Thermostat Guards:
- IHR Metal thermostat guard (Beige metal with 2 locking keys)
- IHR Clear plastic thermostat guard (Plastic material with 2 locking keys)
- Transformers & Relays:
- Reflectors, Screens, & Protective Assemblies (Configured specifically for individual heater models: IHR 30, IHR 60, IHR 90, IHR 130, and IHR 160)
-
- Heater Reflector Assembly (Note: Protective Screen / Reflector Assy is not for use on standard IHR 30/30S models)
- Horizontal Parabolic Reflector
- Parabolic Reflector 4-Piece Kit
- Parabolic Reflector with Protective Screen
- Heater Screen
Applications
The IHR Series is ideal for commercial and industrial spaces where fast, directed heat and high mounting heights are required. Common applications include:
- Warehouses and distribution centers
- Manufacturing and fabrication plants
- Automotive service bays and maintenance facilities
- Aircraft hangars and transportation facilities
- Loading docks and shipping areas
- Industrial workstations requiring localized comfort
- High-ceiling commercial or institutional spaces
Tech Documents
Installation / Service Manual
9-512 IHR Intensity Infrared Unit Heater Installation & Service Manual
Installation / Service Manual – Parts / Accessories
9-510 IHR High Intensity Infrared Unit Heater Accessories & Kits
Installation / Service Manual
9-100 Infrared Heater Design Guide
