MEL Series
High-Output Medium Wave Electric Infrared Heater
When you require top-tier radiant heat without the harsh intensity of a short-wave emitter, Modine’s High-Output Medium Wave Electric Infrared Heater is the perfect solution. This exceptional commercial-grade unit delivers powerful heating via medium-wave elements that produce a gentle white light—about 30% dimmer than a short-wave heater—while delivering the same impressive heat output. With a range of lamp configurations, robust construction, and a reflector design meticulously crafted for optimal radiant performance, the MEL stands out as the superior choice for large workshops, loading docks, covered patios, service bays, and outdoor commercial environments. Experience the ideal blend of efficiency and comfort with the MEL heater.
Models
- MEL-24 (24″ Chassis) – Lamp Count: 1,2, or 3 / Wattage: 1,360 W, 2,720 W or 4,080 W / Voltage: 120V, 208V, 240V, 277V, 480V, 575V
- MEL-33 (33″ Chassis) – Lamp Count: 1,2, or 3 / Wattage: 2,125 W, 4,250 W, or 6,375 W / Voltage: 208V, 240V, 277V, 480V, 575V
- MEL-46 (46″ Chassis) – Lamp Count: 1,2, or 3 / Wattage: 3,200 W, 6,400 W, or 9,600 W / Voltage: 277V, 480V, 575V
Highlighted Features
High-Output Medium-Wave Radiant Technology
The MEL delivers the complete warmth of a short-wave unit while reducing visible brightness by 30%.
Indoor/Outdoor Commercial Versatility:
Designed for expansive spaces and outdoor patios where high heat is needed but lower light levels are preferred.
Reduced Glare Design
The MEL features a gold-anodized aluminum reflectors and black powder-coated housing, this design minimizes light intensity, enhancing visual comfort.
Product Details & Specifications
Key Features
- Available in 3 sizes: 24″, 33″, and 46″

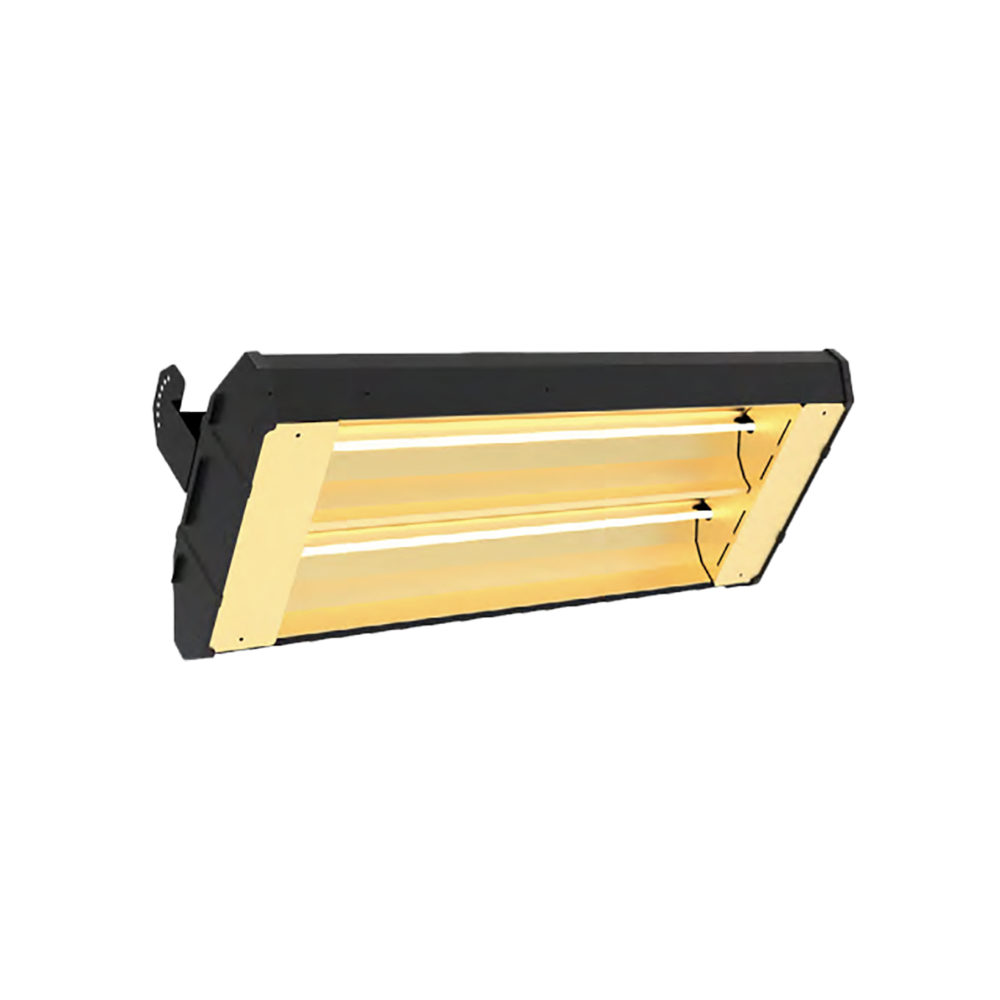

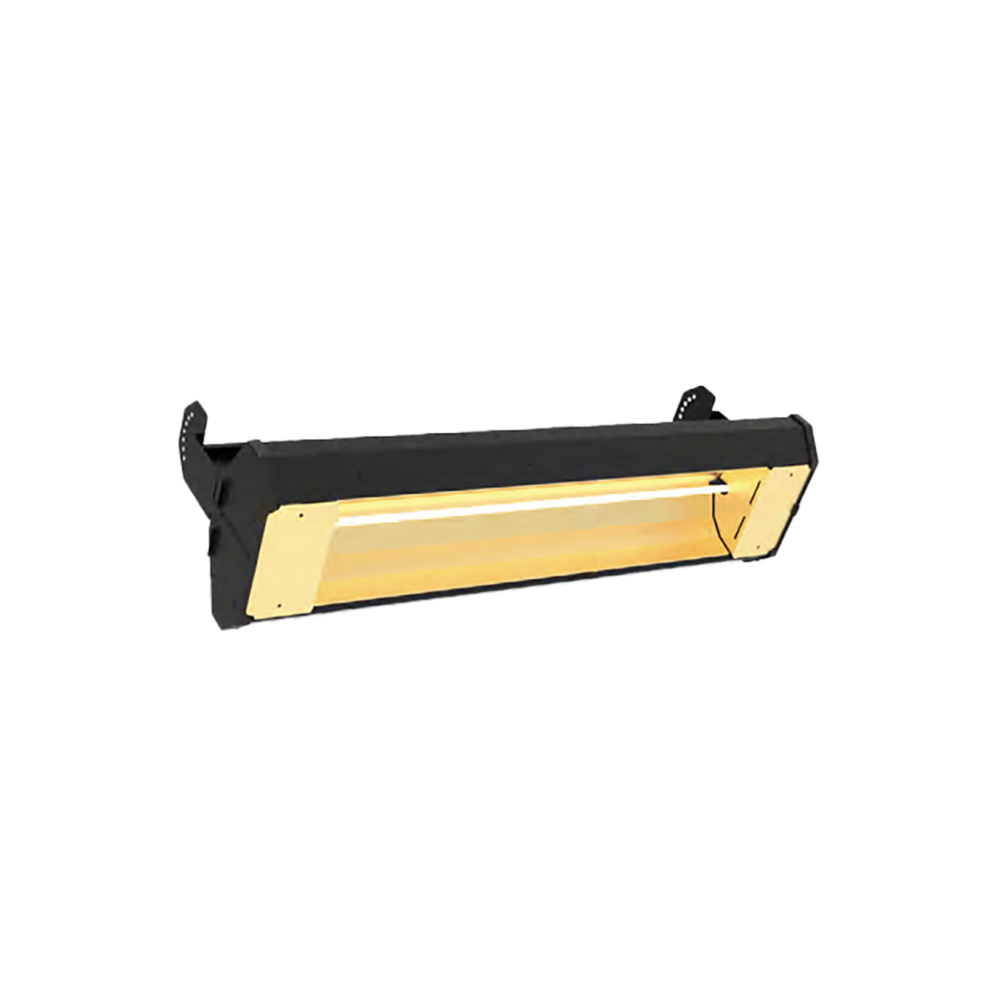

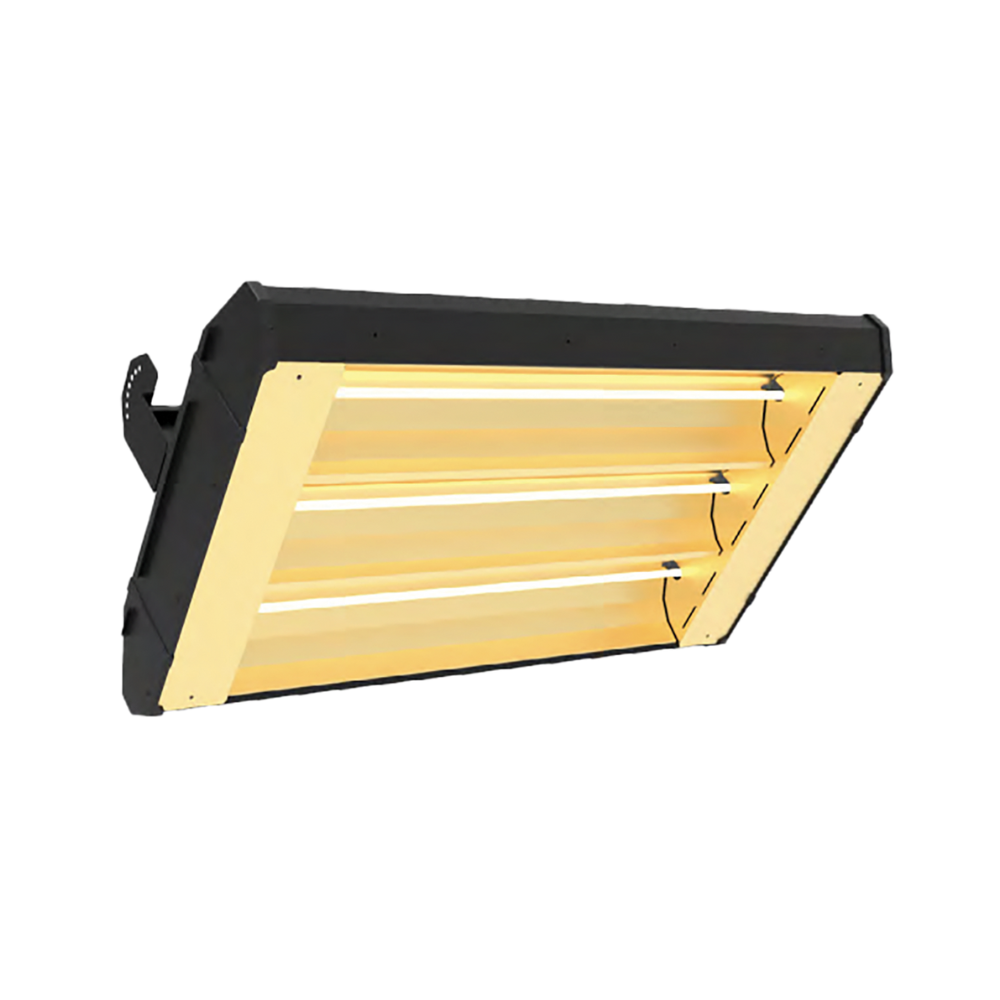

- Heating Elements: All sizes can accommodate 1 to 3 Elements
- Medium-Wave Lamp Elements: High-wattage welded tungsten elements provide strong heat yet lower light output.
- Gold-Anodized Aluminum Reflectors: Direct radiant energy efficiently and minimize unwanted glare.
- Black Powder-Coated Housing: Aesthetic and durable for commercial or exterior use.
- Adjustable Mounting Brackets (0°-45°): Allows the heater to be angled for precise radiant targeting.
- Rated for Indoor Commercial & Outdoor Residential Use: Flexible installation for medium‐ and large‐scale applications.
Options
Factory-Configured Options (Configured when ordering)
- MEL-24 (24″ Chassis)
- Medium-wave Lamp Heating Elements 1,2, or 3
- Wattage: 1,360 W, 2,720 W, or 4,080 W
- Voltage: 120V, 208V, 240V, 277V, 480V, 575V
- MEL-33 (33″ Chassis)
- Medium-wave Lamp Heating Elements 1,2, or 3
- Wattage: 2,125 W, 4,250 W, or 6,375 W
- Voltage: 208V, 240V, 277V, 480V, 575V
- MEL-46 (46″ Chassis)
- Medium-wave Lamp Heating Elements 1,2, or 3
- Wattage: 3,200 W, 6,400 W, or 9,600 W
- Voltage: 277V, 480V, 575V
Accessories
Field Installed Accessories (shipped loose for field installation)
- Wire Guard for 24″ (For Single, Double, Or Triple Element)
- Wire Guard for 33″ (For Single, Double, Or Triple Element)
- Wire Guard for 46″ (For Single, Double, Or Triple Element)
- Wall Mounting Brackets (one set per heater)
- Recessed Frame for 24″ (For Single, Double, Or Triple Element)
- Recessed Frame for 33″ (For Single or Double Element)
- Recessed Frame for 46″ (For Single or Double Element)
Applications
The MEL series is perfect for environments that need strong radiant warmth without creating high-intensity glare or disruptive lighting.
Common applications include:
- Large commercial workshops and manufacturing floors
- Covered patios, outdoor seating zones, and restaurant terraces
- Loading docks, service bays, and warehouse zones
- Other spaces where radiant comfort is needed, but visibility or ambiance must be preserved
Tech Documents
Installation / Service Manual
2-528 MEL Installation & Service Manual
Wiring Diagram
2-490 MEL Wiring Diagram
Installation / Service Manual
9-100 Infrared Heater Design Guide
Related Products

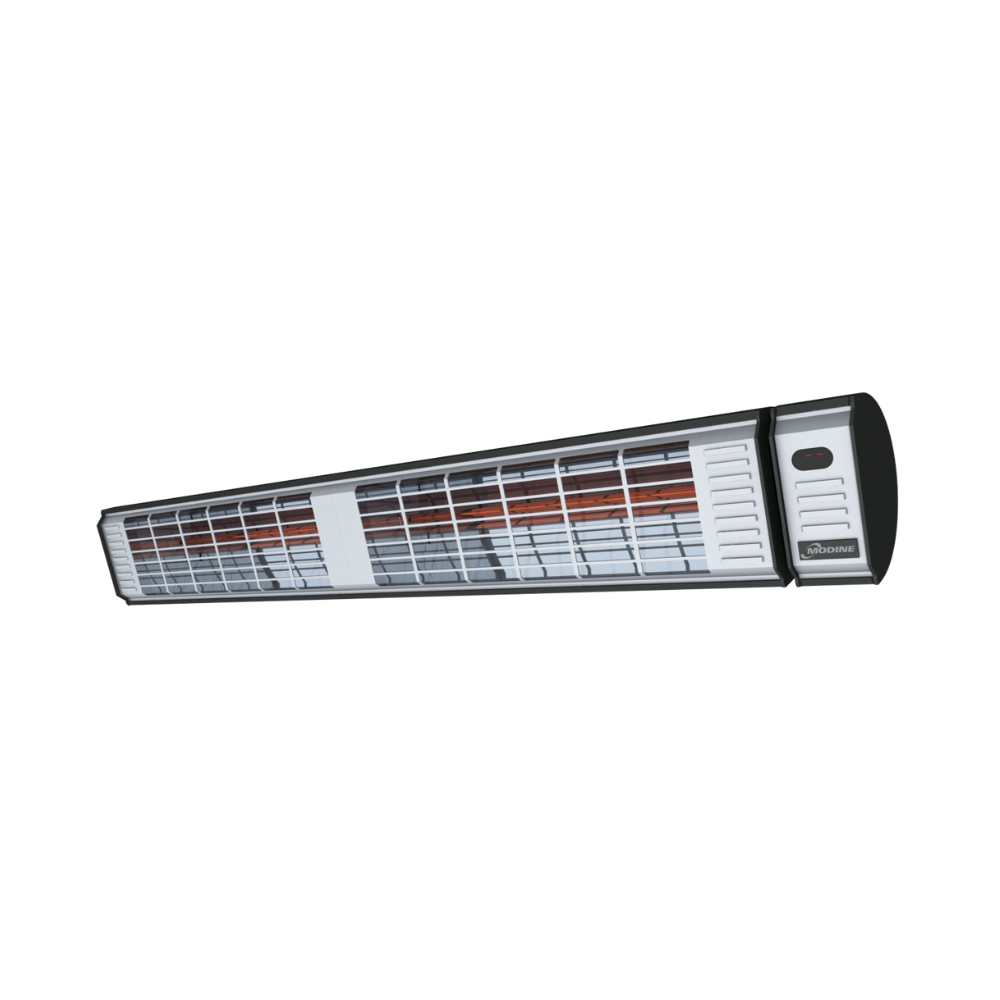

MEQ Series
High-Intensity Low-Light Electric Infrared Heater
3 Model Sizes: 1,500 W TO 4,800 W
The Modine MEQ High-Intensity Low-Light Electric Infrared Unit Heater delivers silent, efficient radiant heat using a low-light Tungsten emitter—ideal for residential and light commercial spaces.

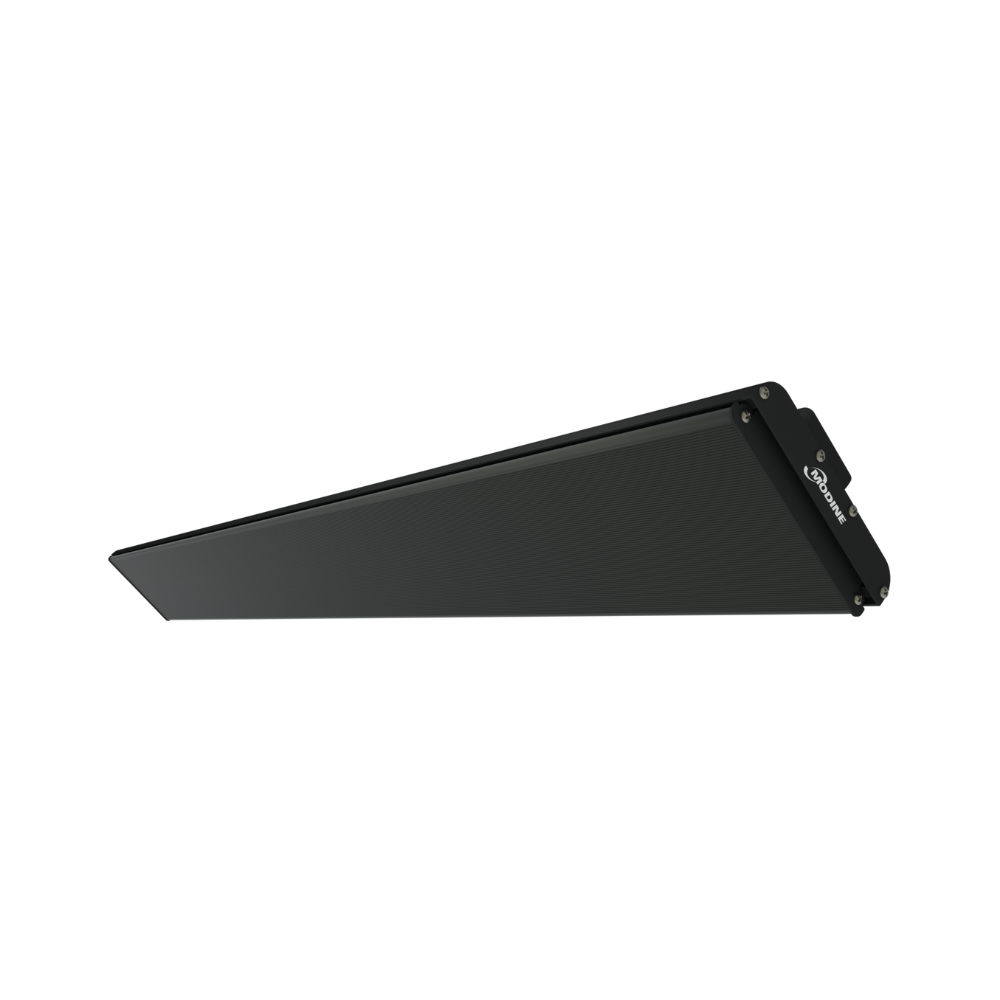

MES Series
