Low-Intensity Low-Profile Infrared

Low-Intensity Low-Profile Infrared

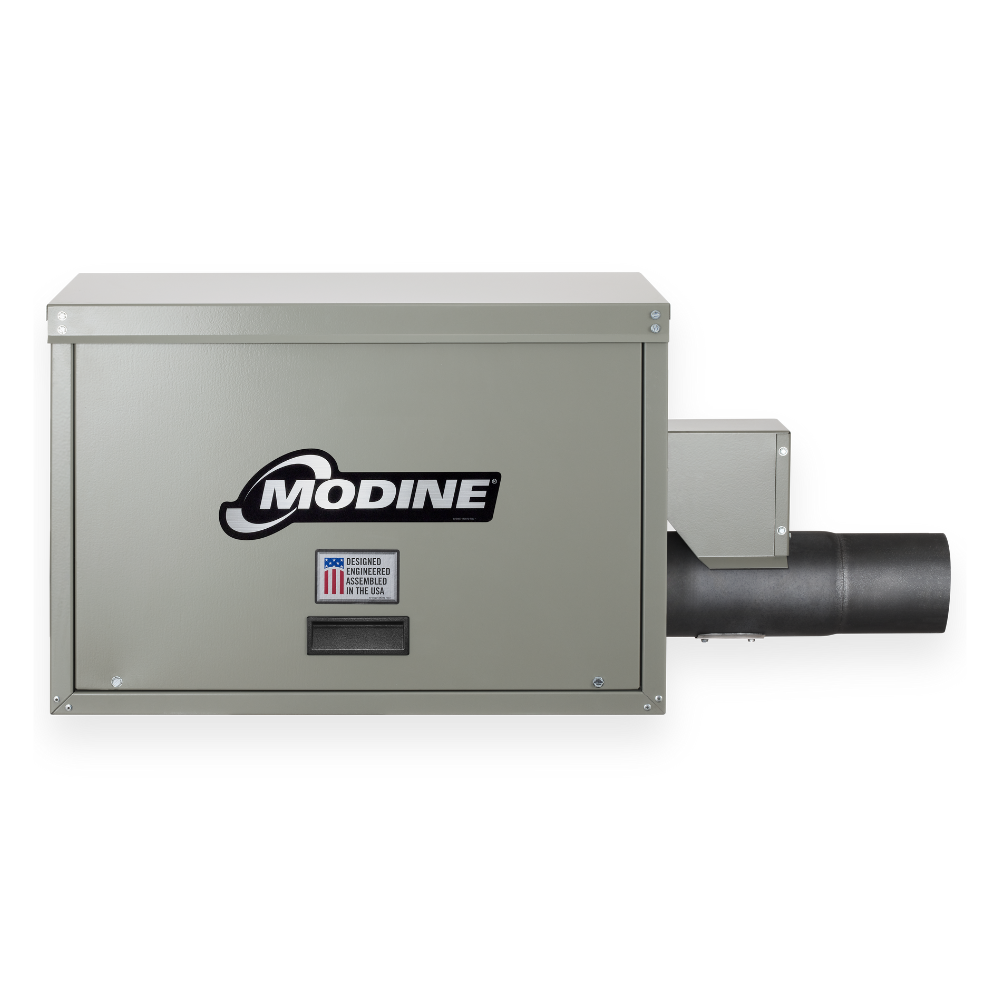

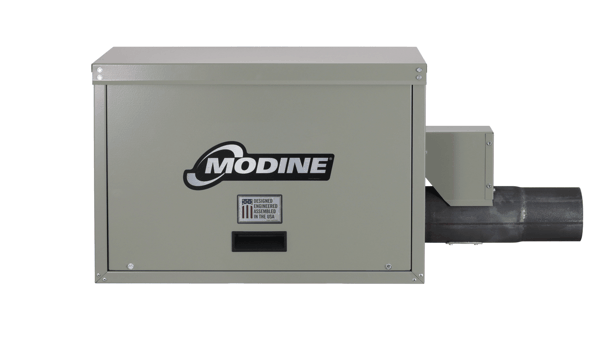

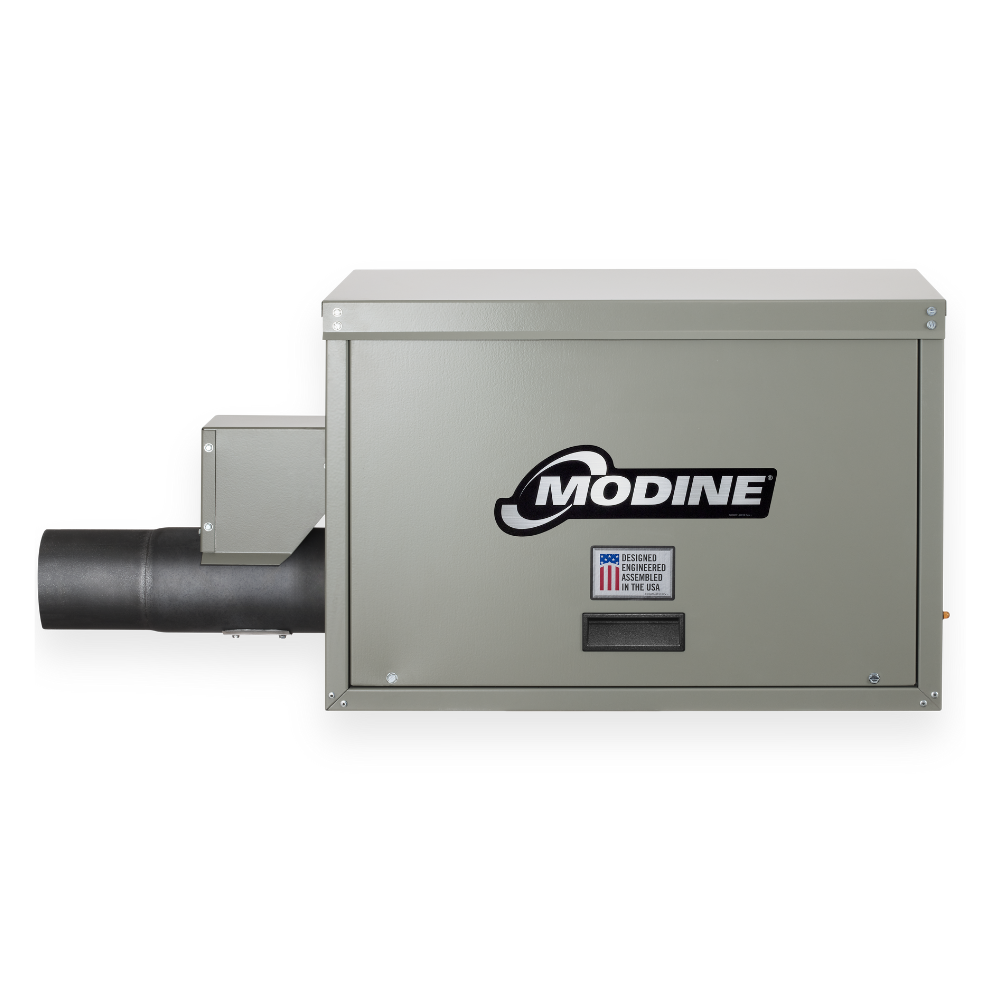

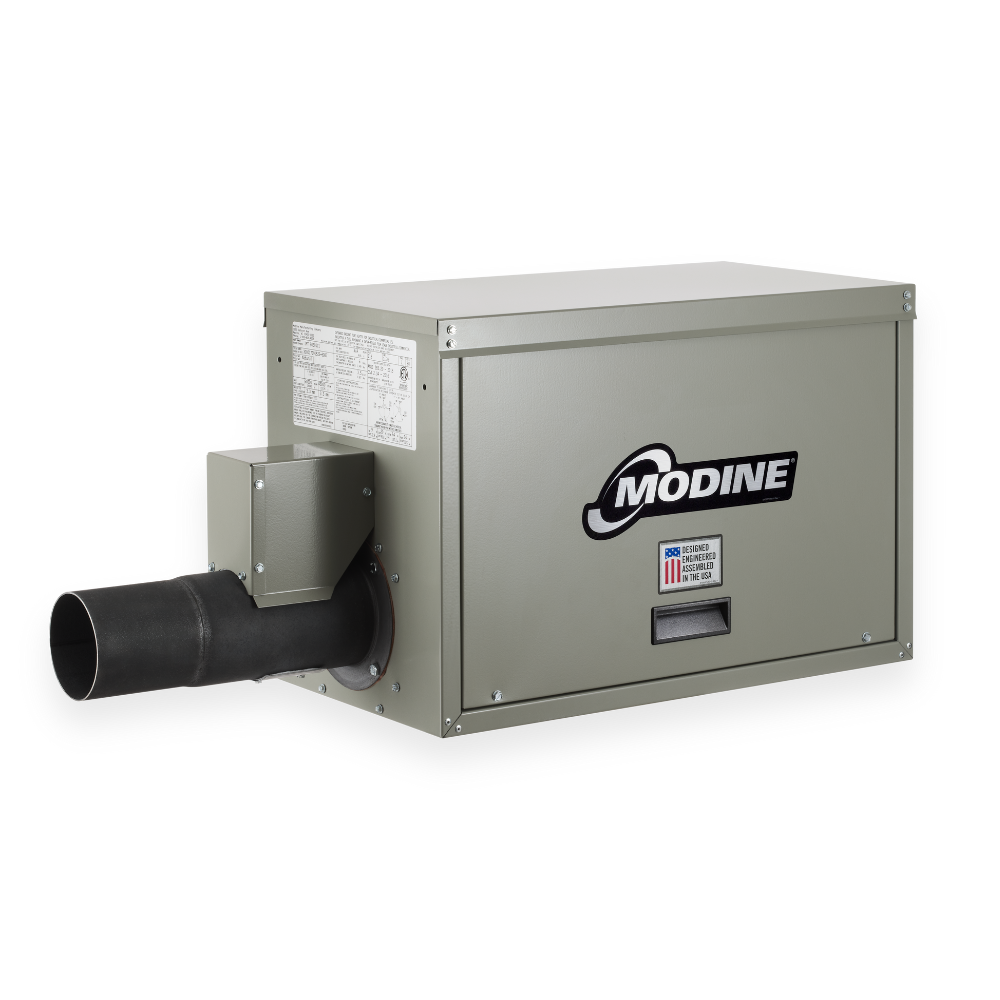

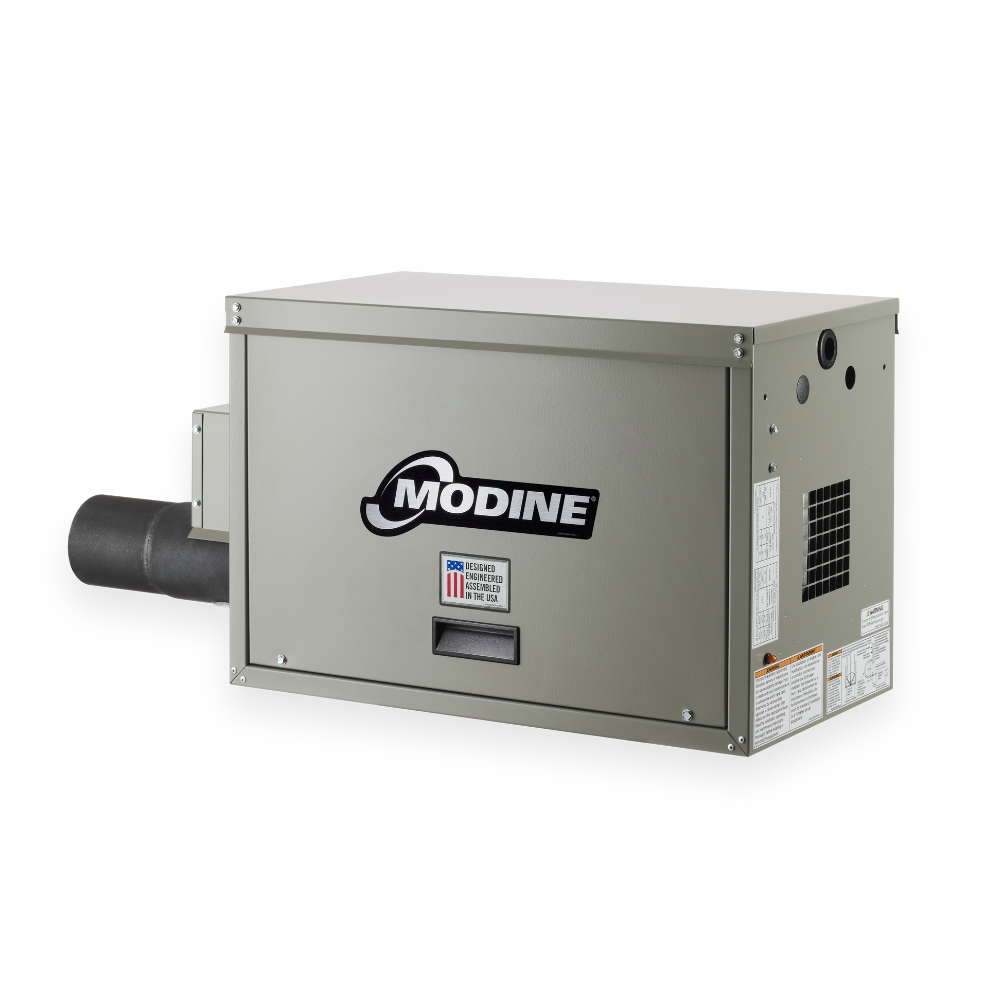

Modine’s single-burner positive pressure infrared heater is approved for vented commercial and industrial applications. A water-resistant control compartment provides weatherproof protection and allows either indoor or outdoor installation.

  • Heat-treated darkening 16-gauge aluminized steel provides corrosion resistance for longer life and increases both radiant heat output
  • Polished aluminum reflectors direct radiant heat to the desired area for increased comfort over more extensive areas.
  • Removable side-access panels on both sides of the burner box can be removed to access either side of the unit.
  • Durable polyester-powder paint maintains a life-long new appearance.
  • Permanently-lubricated combustion blower motor reduces maintenance.
  • 180 degree-rotating gas valve allows convenient access from either side of the burner box.
  • The sealed burner compartment allows manifold pressure adjustments during unit operation, which increases ease of installation and service.
  • Flame sensor and ignitor mounted externally to the combustion chamber improve service access.
  • A flame observation window on the underside of the combustion chamber provides a convenient visual check of unit operation from ground level.
  • The gas valve operation light on the back panel Indicates that the combustion blower is operating.
  • Four-trial, direct spark ignition with a separate flame sensor provides reliable ignition.
  • Weatherproof, water-resistant casing maximizes application flexibility for outdoor installation.
  • ETL design certified
  • Designed, Engineered & Assembled in the USA
  • 8 Model sizes
  • Input range from 50,000 to 200,000 Btu/hr
  • Single or two stage controls
  • 20 to 70 foot tubes system length
  • Straight or u-shaped tube configuration


  • High altitude kit

Contact Us For More Information
