EWH Series
Electric Wall Heater
Experience comfort and efficiency with the EWH Electric Wall Heater, the perfect heating solution for commercial and institutional spaces. With its sleek design and powerful performance, this unit delivers immediate warmth wherever needed. Featuring a Nichrome alloy heating element, it delivers a powerful burst of heat for comfort even in frigid conditions. Ideal for large indoor spaces such as entryways, lobbies, corridors, stairwells, and more, the EWH Electric Wall Heater combines efficiency and style, ensuring warmth without compromising aesthetics.
Models
- Single Unit: 1,500 to 4,800 Watts (5,119 to 16,381 BTU)
- Double Unit: 6,000 to 8,000 Watts (16,381 to 27,302 BTU)

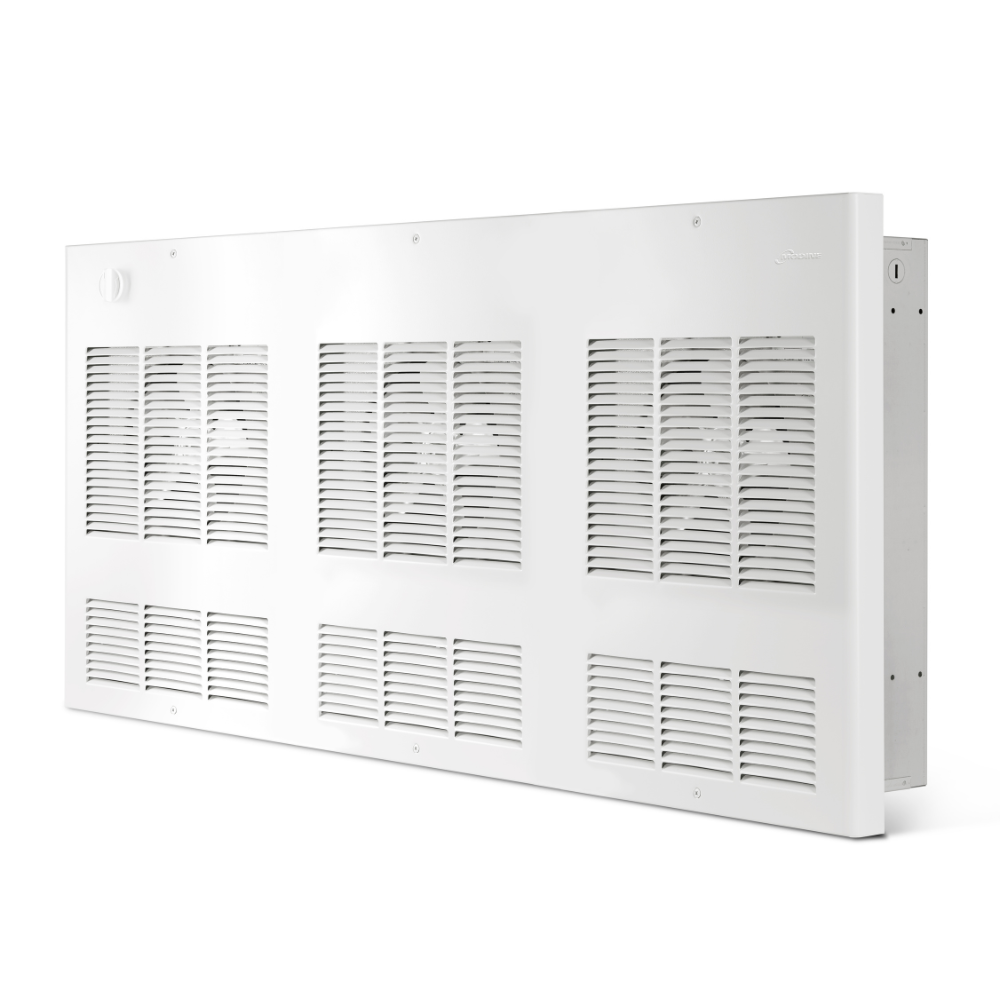

- Triple Unit: 6,000, 9,000 to 12,000 Watts (16,381 to 40,952 BTU)
Highlighted Features
Easy Installation
Installation is a breeze with our streamlined design saving time and reducing complexity on the job site.
Instant Heat
High-quality Nichrome alloy elements deliver instant heat.
Versatility
Whether recessing in a wall or using the optional surface adapter, the EWH blends effortlessly to your space with multiple heating capacities, options, and colors.
Product Details & Specifications
Key Features
Key Features
- Heating Element: High-quality nichrome element for instant heat delivery.
- Models & Heating Capacities: A diverse range of models available, providing input options from 1,500W to 12,000W and voltage options from 120V to 480V.
- Control Options: Standard installation includes a control knob, optional tamper-proof installation without a knob, or optional built-in thermostat. Multiple units can be connected to the same thermostat using an optional relay kit and an external transformer (not included).
- Motor: Closed, permanently lubricated motor
- Fan: Ultra quiet, helicoidal fan – Single: 160 CFM, Double: 320 CFM, Triple: 480 CFM
- Grille Design: 20-gauge steel cabinet and 18-gauge steel grille, with Stylish rounded sides that offer a clean, modern appearance.
- Finish Options: Durable epoxy-polyester powder coat available in 9 attractive color options.
- Installation Flexibility: Can be recessed or surface-mounted; surface adapter available for easy installation (optional).
- Warranty: Peace of mind with a three-year warranty.
- Safety: Thermal protection with automatic reset
- Optional Disconnect Switch: Available for enhanced safety and convenience.
Options
Options
Factory-Configured Options
- Power Output Options (Wattage):
- Single Unit
- 1,500W, 2,000W, 3,000W, 4,000W, 4,800W (5,119 to 16,381 BTU)
- Double Unit
- 6,000W & 8,000W (16,381 & 27,302 BTU)
- Triple Unit
- 6,000W, 9,000W & 12,000W (16,381 to 40,952 BTU)
- Single Unit
- Voltage & Phase Options:
- Single-Phase (1Ph): 120V/1ph, 208V/1ph, 240V/1ph, 277V/1ph, or 480V/1ph
- Three-Phase (3Ph): 208V/3ph, 240V/3ph, or 480V/3ph (Only available on select higher-wattage models)
- Integrated Control System Options:
- No Controls
- Thermostat
- Contactor
- Contactor and Thermostat
- C24 Control Relay
- Disconnect Switch
- Disconnect Switch and Thermostat
- Contactor and Disconnect Switch
- Contactor, Disconnect Switch, and Thermostat
- C24 Control Relay and Disconnect Switch
- Front Grille Colors:

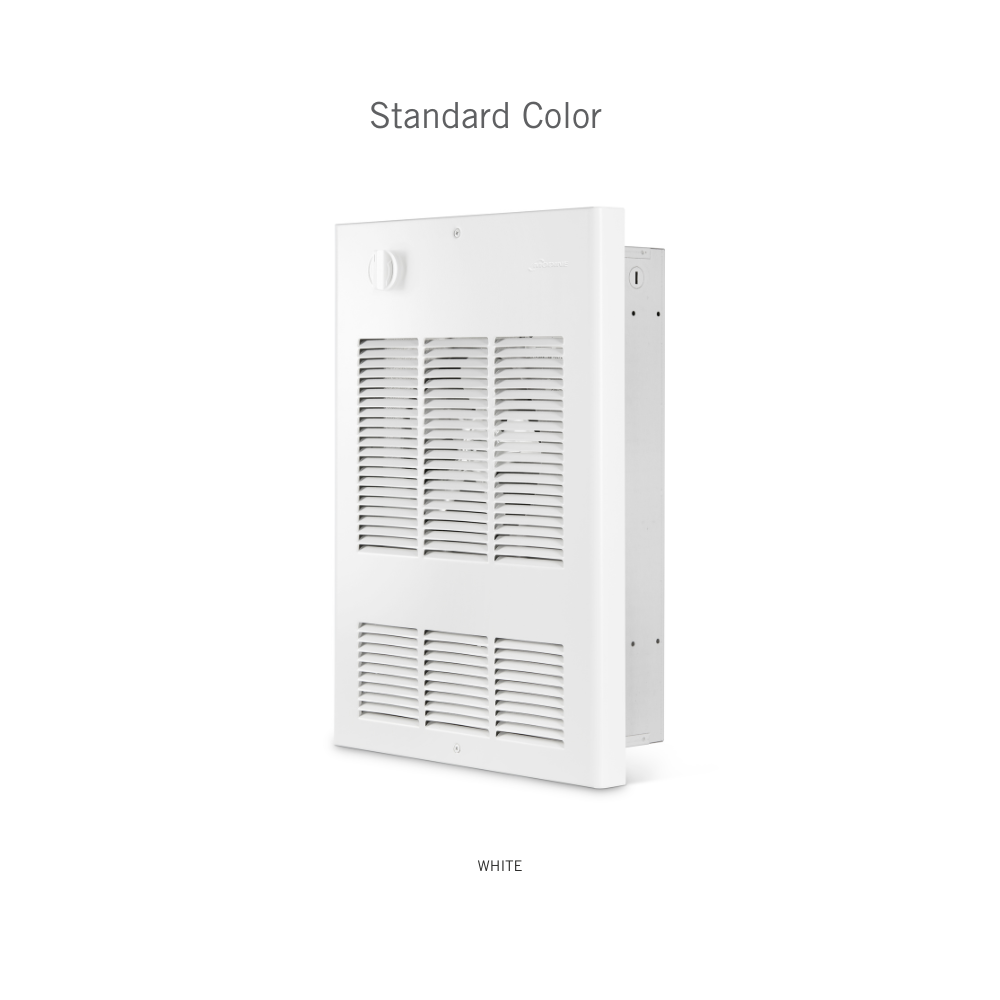

- Standard Color: White

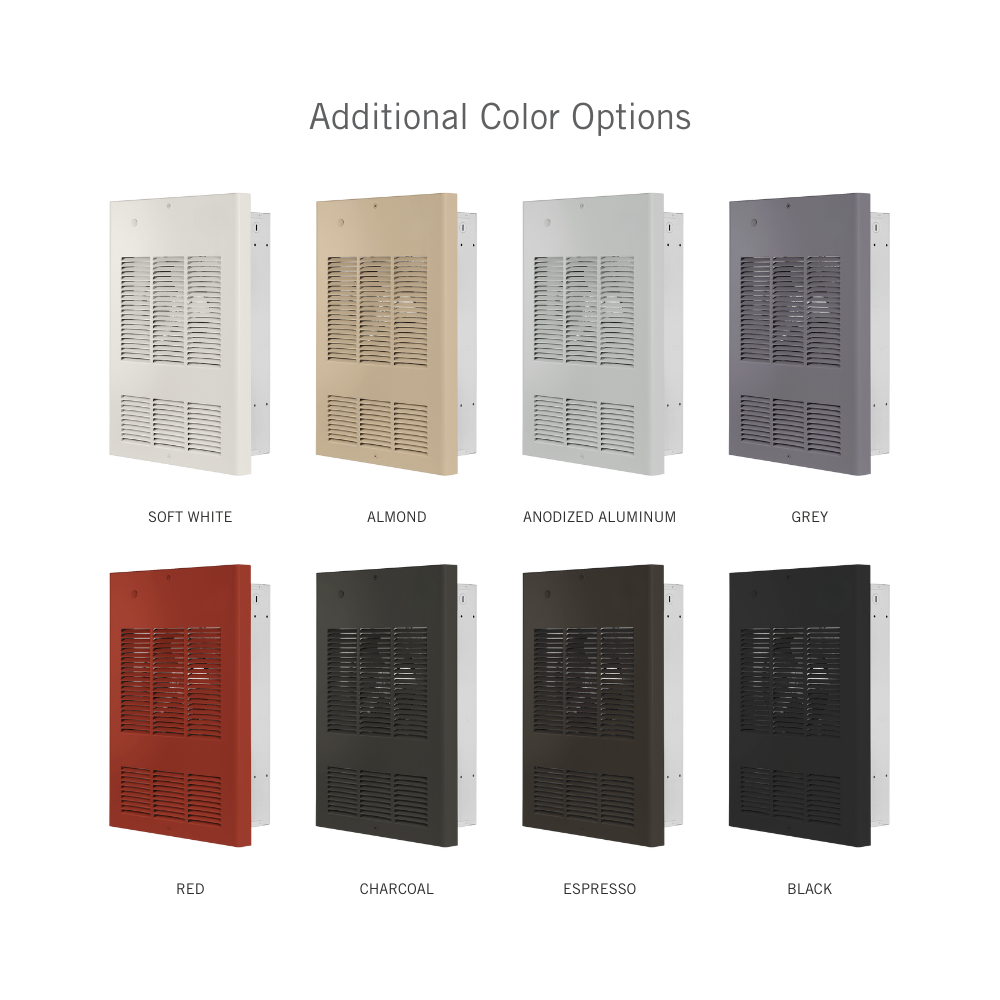

- Additional Color Options: Soft White, Almond, Anodized Aluminum, Grey, Red, Charcoal, Espresso, Black
Accessories
Accessories
- Thermostats & Control Accessories
- Built-In Double-Pole Thermostat (120V–600V; available in standard or tamper-proof designs)
- Built-In Single-Pole Thermostat (120V–600V; available in standard or tamper-proof designs)
- Electronic Wall Thermostat (Line and low voltage; Model TH140-28-01-B)
- Low-Voltage Relay Kit (Without 24V transformer)
- Power Disconnect Switch Kits
- Disconnect Switch Kit: 600V / 30A (2-pole configuration)
- Disconnect Switch Kit: 600V / 40A (2-pole or 3-pole configurations)
- Disconnect Switch Kit: 600V / 60A (2-pole or 3-pole configurations)
- Surface Mounting Adapters (These kits surface-mount the heater instead of recessing it into the wall. They are offered in Single [SGL], Double [DBL], or Triple [TPL] casing profiles, matched to the following face colors):
- White Surface Adapter
- Soft White Surface Adapter
- Almond Surface Adapter
- Anodized Aluminum Surface Adapter
- Gray Surface Adapter
- Charcoal Surface Adapter
- Espresso Surface Adapter
- Black Surface Adapter
- Red Surface Adapter
Applications
Applications
The EWH is a high-output heater designed for small to large commercial and institutional spaces. Common applications include:
- Building Lobbies
- Corridors
- Stairwells
- Workshops
- Factories
- Warehouses
