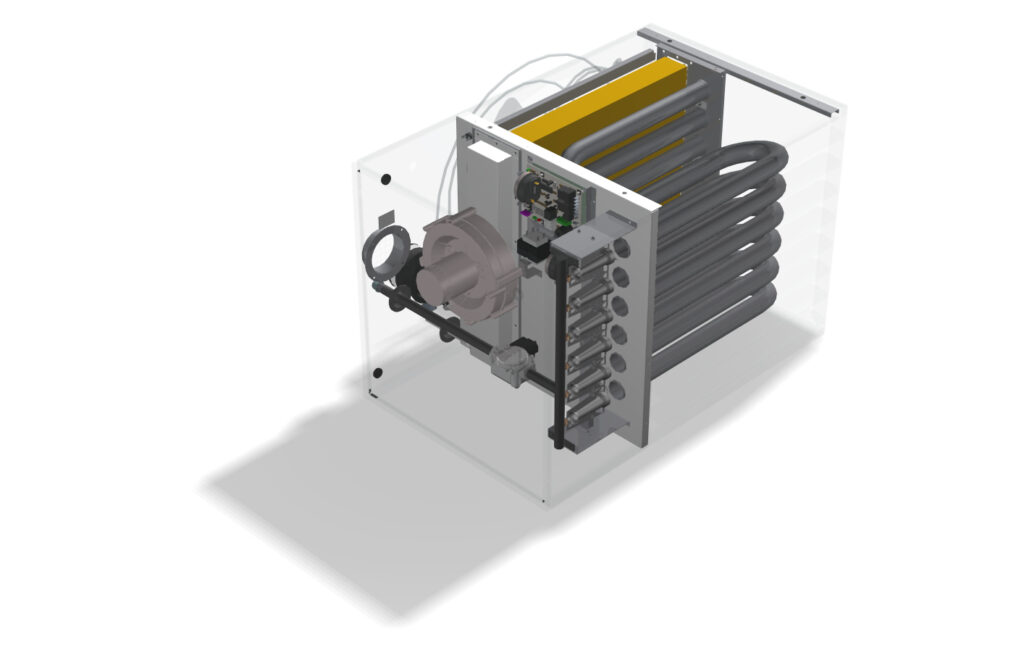

Effinity™ High-Efficiency Condensing Gas-Fired Unit Heater

• Ultra-High Efficiency: Up to 97% thermal efficiency—the most efficient gas-fired unit heater in North America.
• Separated Combustion: drawing combustion air from outside to ensure that the unit will always have plenty of fresh, clean air for combustion while increasing the overall heating efficiency.
• Condensing Heat Exchanger: Stainless-steel secondary exchanger extracts more usable heat from exhaust gases, reducing energy waste.
• Reduced Carbon Footprint: Lower emissions and less fuel use support sustainability goals.
• Energy Saver Controls: as the temperature increases, the gas is disabled, and stratified ceiling air is used to heat the space below. Once the ceiling air temperature decreases, the gas re-engages and heats the air.
• Smart Combustion Control: Advanced design ensures consistent operation across varying conditions.
• Contractor Convenience Package: Featuring a condensate pump convenience outlet, unit on/off switch, heater function status indicator lights, and external terminals for thermostat wiring.
• Corrosion-Resistant Construction: Stainless steel and aluminized steel materials ensure long-lasting performance in humid or chemically exposed areas.
• Quiet, Balanced Airflow: Designed for noise-sensitive environments such as schools or retail spaces.
• Flexible Mounting Options: Ceiling or wall installation maximizes space.
• Venting Flexibility: Can be vented as either a two-pipe or concentric vent system with 3″ and 4″ PVC.
• BMS Integration Capability: Optional factory-installed Building Management Systems.
• ETL Certification: ETL certification for residential(size 110 and smaller only), commercial, and industrial use in the US and Canada.
• Proudly Designed, Engineered, and Assembled in the USA: Commitment to quality and craftsmanship in every unit.

• Propeller Fan (PTC)
• Centrifugal Blower Fan (BTC)

• PTC – 10 Model Sizes: 55, 65, 85, 110, 135, 156, 180, 215, 260, and 310 MBH
• BTC – 3 Model Sizes: 215, 260, and 310 MBH

• Primary Heat Exchanger: Tubular, Aluminized Steel
• Secondary Recuperative Heat Exchanger: AL29-4C® stainless steel

• 115V/1PH/60Hz
• 208V/1Ph/60Hz
• 230V/1Ph/60Hz
• 208V/3Ph/60Hz
• 230V/3Ph/60Hz
• 460V/3Ph/60Hz
• 575V/3Ph/60Hz

• Single-Stage, Intermittent Pilot Ignition

PTC = Propeller, BTC = Blower

Venting Accessories:

• Horizontal Concentric Vent Kit
• Vertical Concentric Vent Kit
• Two Pipe Venting Kit

Gas Conversion Kits:

• Natural to Propane and Propane to Natural (Offered for Single-Stage units only, sizes 55 to 310)

Blower-Specific Accessories (BTC Only):

• Belt Guard
• Blower Enclosure
• Filter Rack & Filter (requires Blower Enclosure)
• Discharge Transition for Polytube

Air Discharge Accessories:

• Downward Air Deflector Hoods (30°, 60°, and 90°)
• Vertical Air Deflector Blades

Thermostats & Controllers:

• Thermostat Guard (Modine Pro1 T-150)
• Room Thermostat (Modine Pro1 T-501M)
• Two-Stage Thermostat (Modine Pro1 T-715M)
• WiFi Thermostat (Modine Pro1 T855iSH)
• Johnson Controls A350 Electronic Temp Control with S350 Stage Adder – Offered for blower units (BTC) only; only one stage is used with BTC units
• Energy Saver Thermostat

BMS (Building Management System):

• Factory Installed BMS

Condensate Management:

• 3/4″ x 3/4″ Union Strainers (prevents debris in drain traps)
• Condensate Pump (DiversiTech CP-22 for high lift up to 22′)
• Condensate Pump Suspension Kit (to hang/support pump)
• Condensate Treatment (slime growth control)
• Condensate pH Neutralizing Kit (reduces acidity)

Miscellaneous & Suspension Accessories:

• Vibration Isolation Kit (4 Isolators) – Offered for propeller units 55–260 only
• Ceiling Mounting Brackets (Offered for PTC sizes 55–110)
• 2-Point Suspension Kit – Offered for propeller units (PTC) sizes 55, 65, 85–400
• Quick-Sling QSWI-3000
