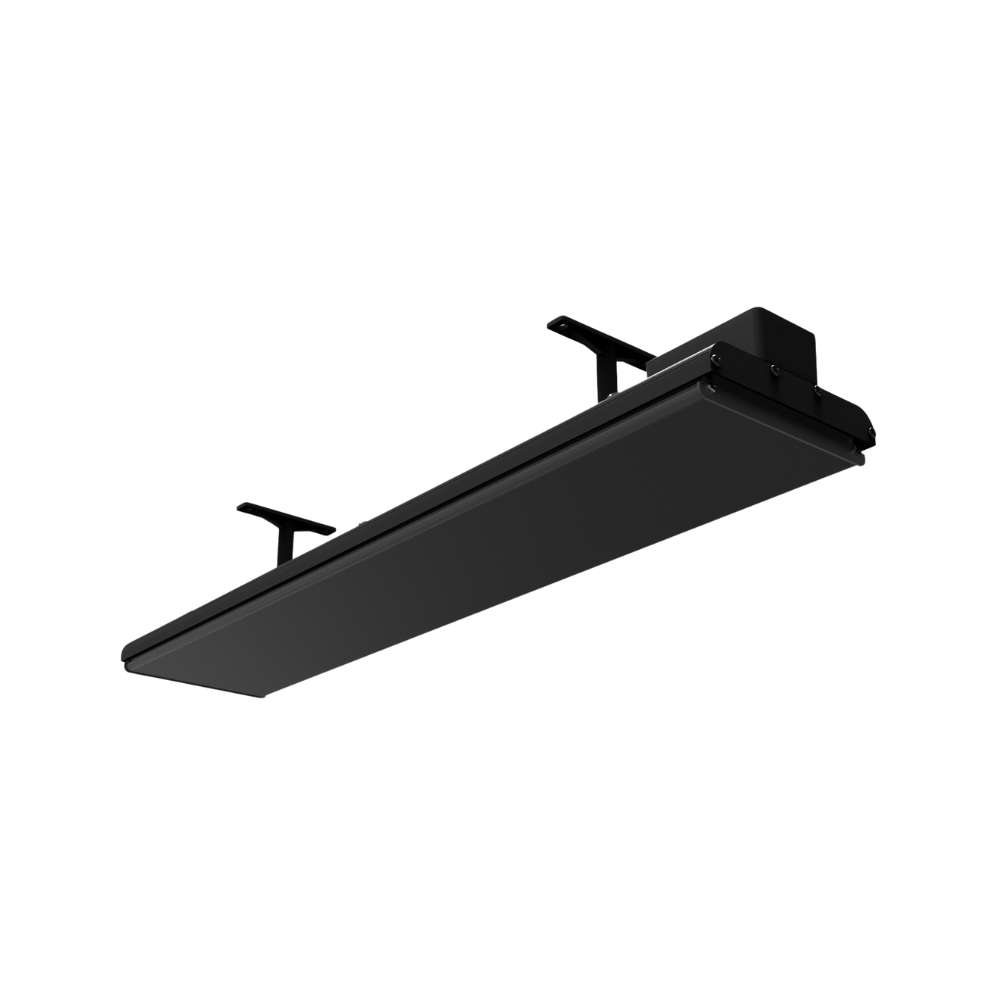

MES front left

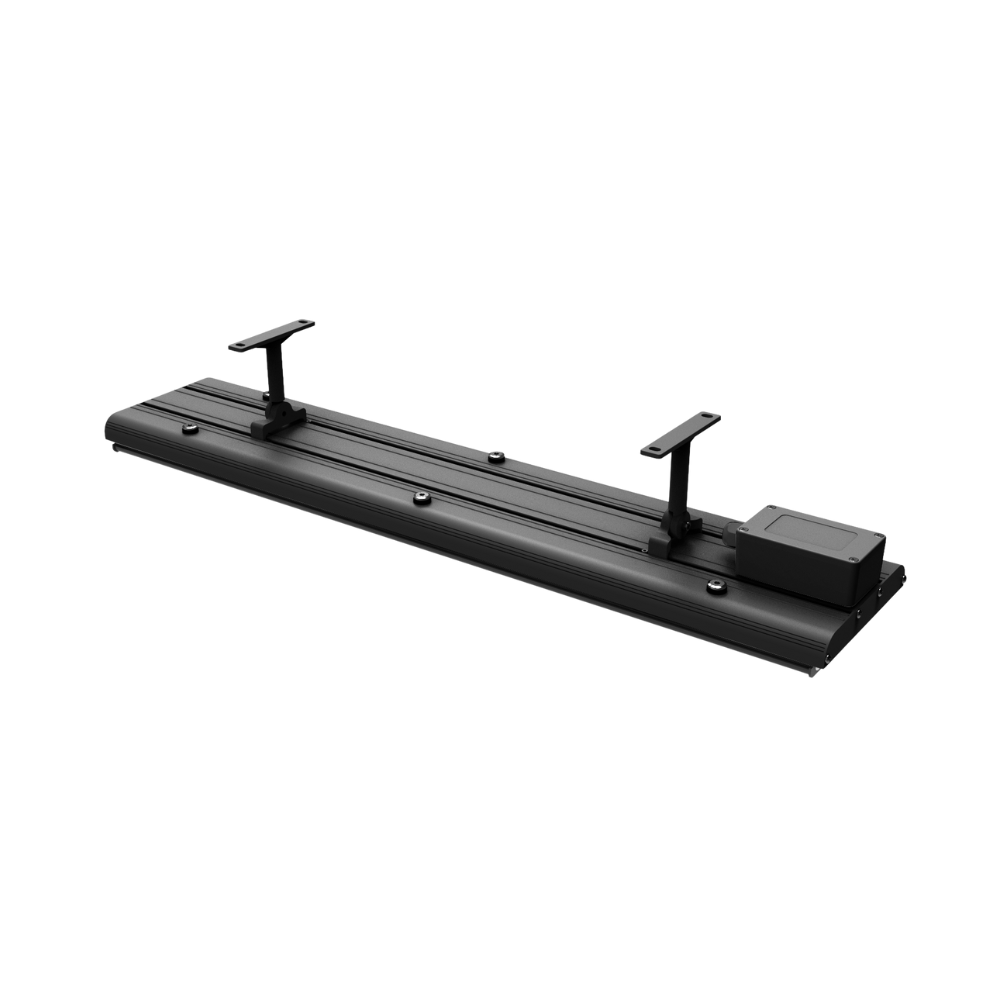

MES top brackets

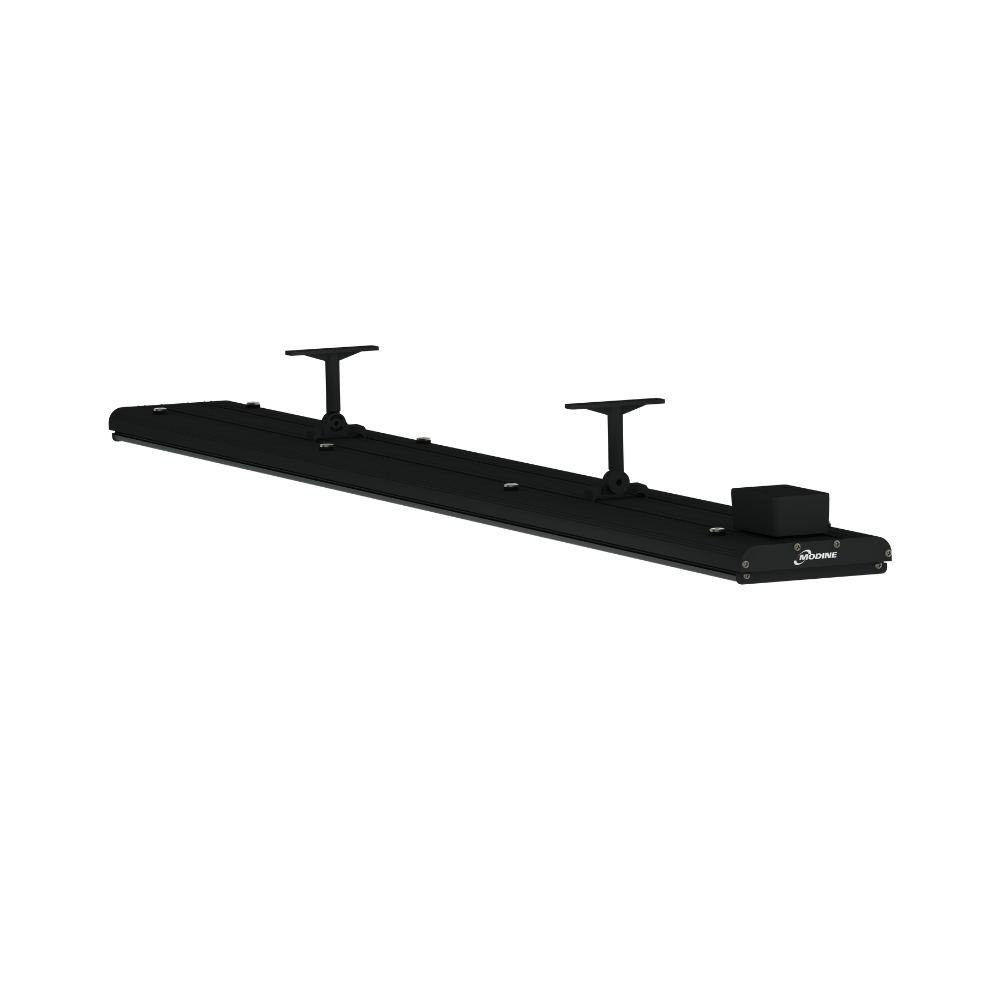

MES with brackets

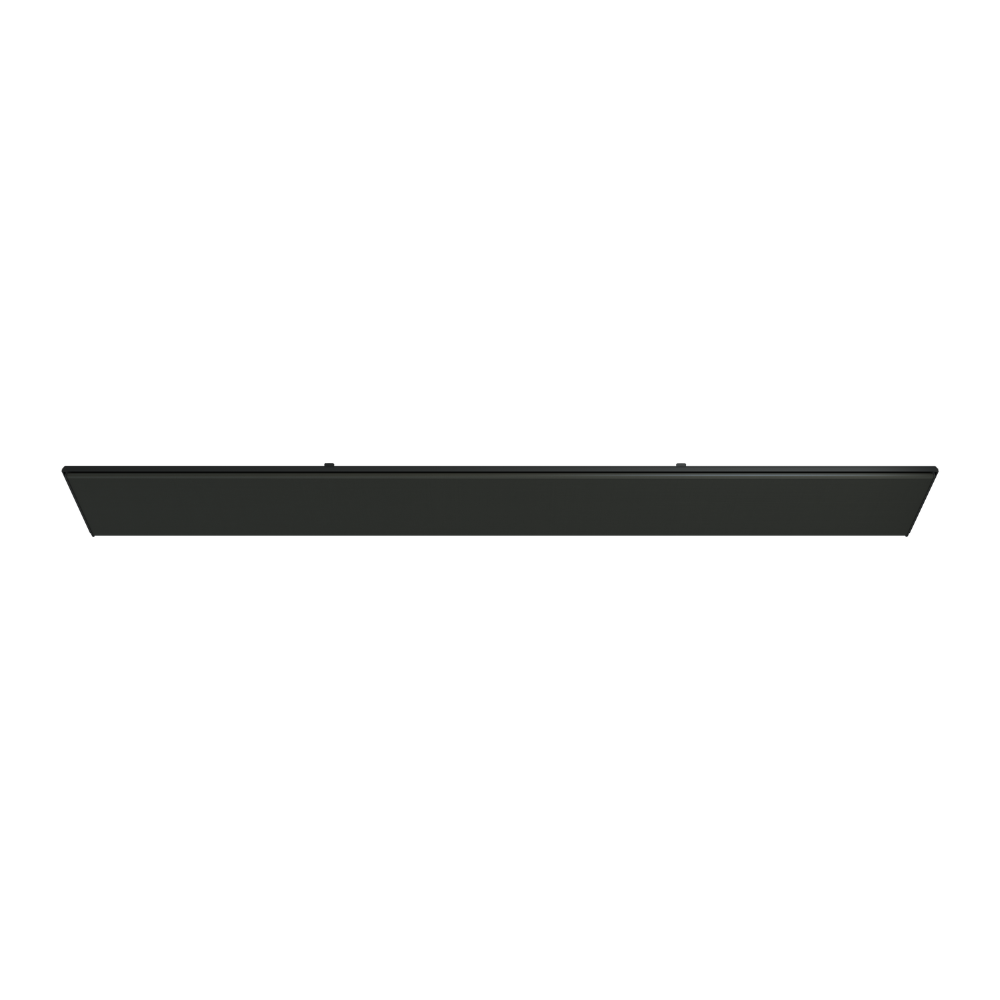

MES flat
MES Main thumbnail
MES front left thumbnail
MES top brackets thumbnail
MES with brackets thumbnail
MES flat thumbnail
video thumb

MES Series

No-Light Electric Infrared Unit Heater

When you want warmth without distracting lights or airflow, the Modine MES No-Light Electric Infrared Heater is the refined solution. With long-wave radiant output and a sleek, low-profile design, the MES delivers direct, comfortable heat quietly and efficiently.

Models

  • MES15-A01
    • 1500 Watts / 120 Volts / 12.5 Amps / 5,115 Btu / 32.5″ Width
  • MES32-A11
    • 3200 Watts / 208 Volts / 15.4 Amps / 10,912 Btu / 66″ Width
  • MES32-A12
    • 3200 Watts / 240 Volts / 13.3 Amps / 10,912 Btu / 66′ Width
Where To Buy

Highlighted Features

All-Electric Efficiency

Completely electric and emission-free, it’s perfect for chic indoor spaces or covered outdoor areas.

No-Light Radiant Heating

Utilizing long-wave technology, this system delivers warmth without any visible light or glare.

Minimal Visual Impact & Quiet Operation

The sleek extruded aluminum design maintains the ambiance, while its quiet functionality is ideal for noise-sensitive environments.

Product Details & Specifications

Key Features
  • Long-Wave Radiant Technology: Delivers consistent, powerful heat to people and surfaces rather than just warming air.
  • Zero Visible Light Emission: Maintains the space’s ambiance without bright light or glare.
  • Sleek Aluminum Design: Extruded aluminum body with powder-coated finish for a modern look and durability.
  • Low Clearance Mounting: Designed for compact, overhead spaces and stylish installations.
  • Commercial & Covered Outdoor Use: Built for semi-enclosed or covered outdoor zones as well as indoor commercial spaces.
  • Flexible Wattage Options: Models available in 1,500W and 3,200W to suit different coverage needs.
Options

Models

  • MES15A01: 1500 watts, 120 volts, 12.5 amps, 5,115 BTU, width 32.5 in, height 6.8 in
  • MES32A11: 3200 watts, 208 volts, 15.4 amps, 10,912 BTU, width 66 in, height 6.8 in
  • MES32A12: 3200 watts, 240volts, 13.3 amps, 10,912 BTU, width 66 in, height 6.8 in

Heating Coverage Patterns

  • MES15A01: width 8′ (2.4m), depth 6′ (1.8m), height 8′ (2.4m)
  • MES32A11: width 9′ (2.7m), depth 7′ (2.1m), height 8′ (2.4m)
  • MES32A12: width 9′ (2.7m), depth 7′ (2.1m), height 8′ (2.4m)
Warranty
Applications

The MES series excels in spaces where gentle, refined radiant warmth is desired without the distraction of traditional heaters.

Common applications include:

  • Yoga and fitness studios
  • Restaurants, bars, and rooftop entertainment spaces
  • Solariums and atriums
  • Covered patios or veranda areas
  • Workshops, craft rooms, and retail display zones
  • Semi-enclosed outdoor areas with minimal wind exposure
