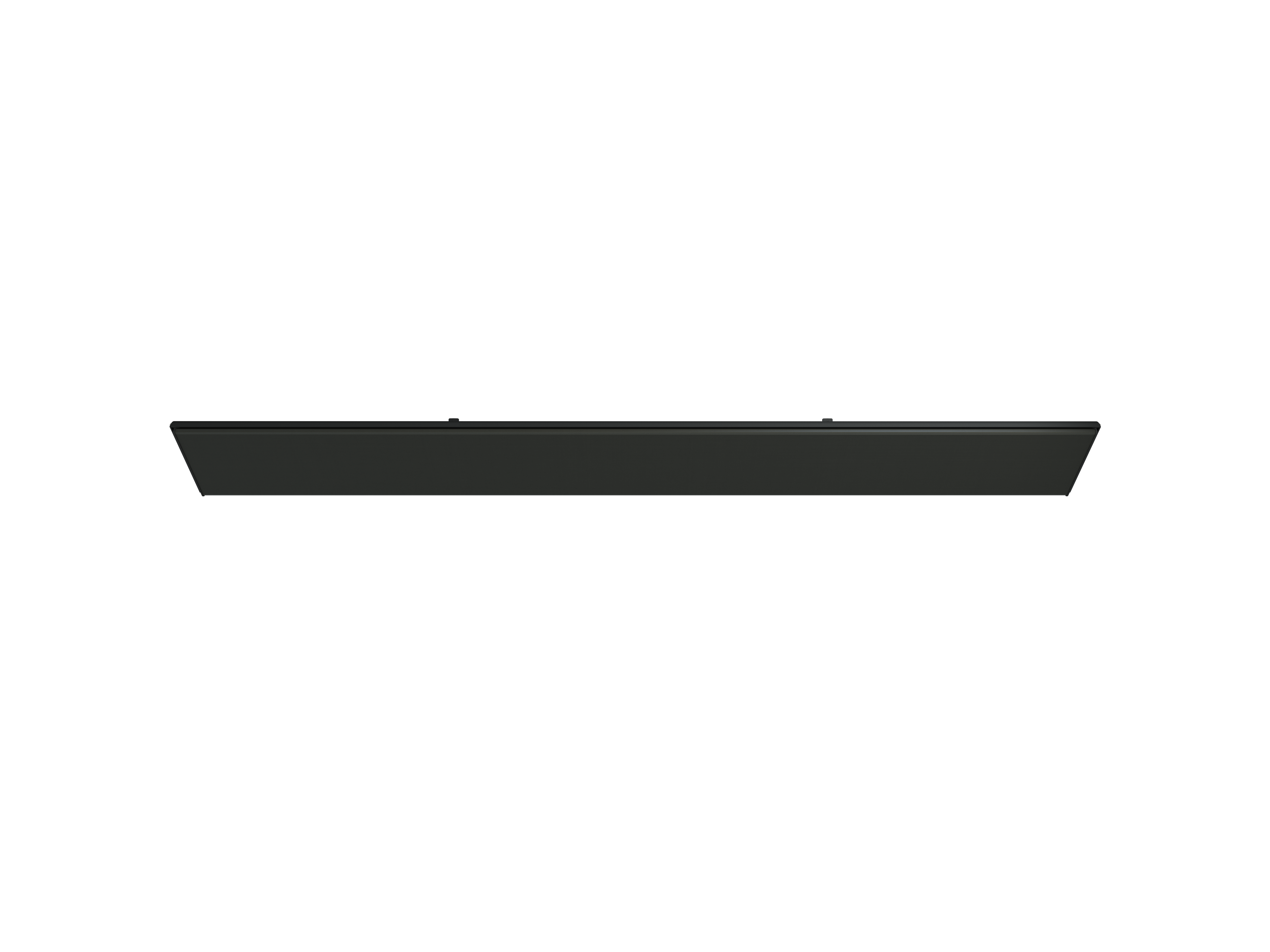

MES Series

No-Light Electric Infrared Heater

When you want warmth without distracting lights or airflow, the Modine MES No-Light Electric Infrared Heater is the refined solution. With long-wave radiant output and a sleek, low-profile design, the MES delivers direct, comfortable heat quietly and efficiently.

Models

  • MES15A01: 1,500 Watts (120V / 12.5A / 5,115 BTU)
  • MES32A11: 2,250 or 3,000 Watts (208V or 240V / 10.8A or 12.5A / 7,673 or 10,230 BTU)
  • MES32A12: (208V or 240V / 17.3A or 20A / 12,293 or 16,368 BTU)
Where To Buy

Highlighted Features

All-Electric Efficiency

Completely electric and emission-free, it’s perfect for chic indoor spaces or covered outdoor areas.

No-Light Radiant Heating

Utilizing long-wave technology, this system delivers warmth without any visible light or glare.

Minimal Visual Impact & Quiet Operation

The sleek extruded aluminum design maintains the ambiance, while its quiet functionality is ideal for noise-sensitive environments.

Product Details & Specifications

Key Features
  • Long-Wave Radiant Technology: Delivers consistent, powerful heat to people and surfaces rather than just warming air.
  • Zero Visible Light Emission: Maintains the space’s ambiance without bright light or glare.
  • Sleek Aluminum Design: Extruded aluminum body with powder-coated finish for a modern look and durability.
  • Low Clearance Mounting: Designed for compact, overhead spaces and stylish installations.
  • Commercial & Covered Outdoor Use: Built for semi-enclosed or covered outdoor zones as well as indoor commercial spaces.
  • Flexible Wattage Options: Models available in 1,500W and 3,200W to suit different coverage needs.
Options

Factory-Configured Options (Configured when ordering)

  • Model Capacities (Model Sizes):
    • MES15A01: 1,500 Watts (120V / 12.5A / 5,115 BTU)
    • MES32A11: 2,250 or 3,000 Watts (208V or 240V / 10.8A or 12.5A / 7,673 or 10,230 BTU)
    • MES32A12: (208V or 240V / 17.3A or 20A / 12,293 or 16,368 BTU)
  • Heating Coverage Patterns
    • MES15A01: width 8′ (2.4m), depth 6′ (1.8m), height 8′ (2.4m)
    • MES32A11: width 9′ (2.7m), depth 7′ (2.1m), height 8′ (2.4m)
    • MES32A12: width 9′ (2.7m), depth 7′ (2.1m), height 8′ (2.4m)
  • Mounting Configuration:
    • Adjustable multi-angle brackets for ceiling, wall, or flush-mount architectural integrations
Accessories

Field-Installed Accessories (shipped loose for field installation)

  • MYSA BB1 V2 Line Voltage Smart Thermostat
  • Pro1 T501ML2 Electric Heat Thermostat (Line Voltage, Two Wire, Non-Programmable)
  • Pro1 T501ML4 Electric Heat Thermostat (Line Voltage, Four Wire, Non-Programmable)
  • 12″ Ceiling Bracket Pair
  • 24″ Ceiling Bracket Pair
Warranty
Applications

The MES series excels in spaces where gentle, refined radiant warmth is desired without the distraction of traditional heaters.

Common applications include:

  • Yoga and fitness studios
  • Restaurants, bars, and rooftop entertainment spaces
  • Solariums and atriums
  • Covered patios or veranda areas
  • Workshops, craft rooms, and retail display zones
  • Semi-enclosed outdoor areas with minimal wind exposure

Tech Documents
